For more details, see the operation manual for the decoder.
The procedure for reading / programming in register mode is the
same as when programming using CV mode, with the exception
that there are only 8 registers to choose from.

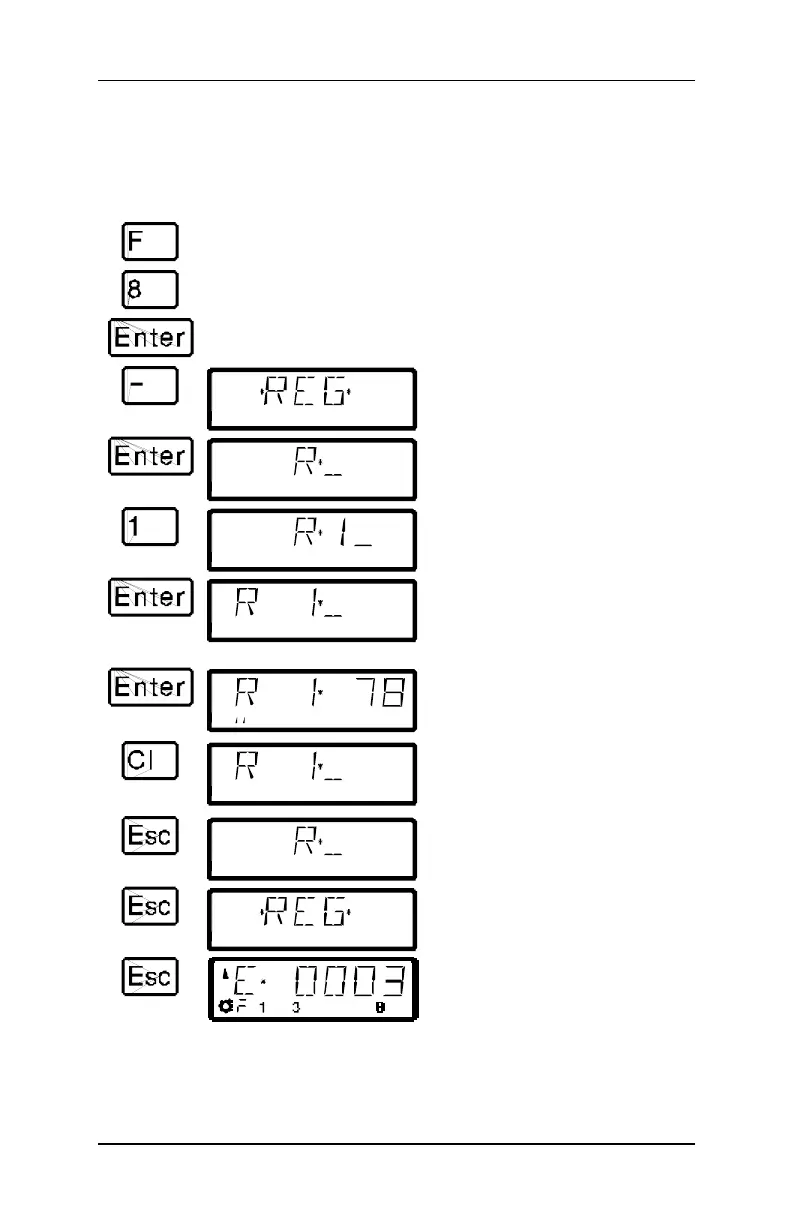

Press On the display you see Explanation
The most recently selected
menu is shown
(flashes) Select “Programming on the
programming track”
The most recently selected
programming mode is shown
Use ‘-’ or '+' to page until “REG” is
shown on the display.
Here enter the number of the
register that you want to read/write.
Values of 1 to 8 are allowed.
In this example register 1 is
selected. If you make a mistake, you
can erase the last digit with ‘Cl’.
In this location you can either enter
the value that you want to program,
or read out the value in the register
by pressing ‘Enter’ again.
2 3 4 7
The value in the register is read and
shown. In this example the
locomotives address is 78.
or
Press 'Cl' if you want to enter a new
value or press 'Esc'.
After you have read or written a
register, use ‘Esc’ to return to
selecting another register.
Another ‘Esc’ takes you back to
selection of programming mode.
With the last ‘Esc’ you leave the
programming and return to
controlling locomotives.
