6 During operation
6.1 Status indications
6.1.1 In Global Drive Control
1. Click on the ”Control” button in the ”Basic settings” dialog box.
2. Click on the ”Diagnostics” button in the ”Control” dialog box.
1
2
3
4
5
6
7
8
9
11
12
13
14
15
10

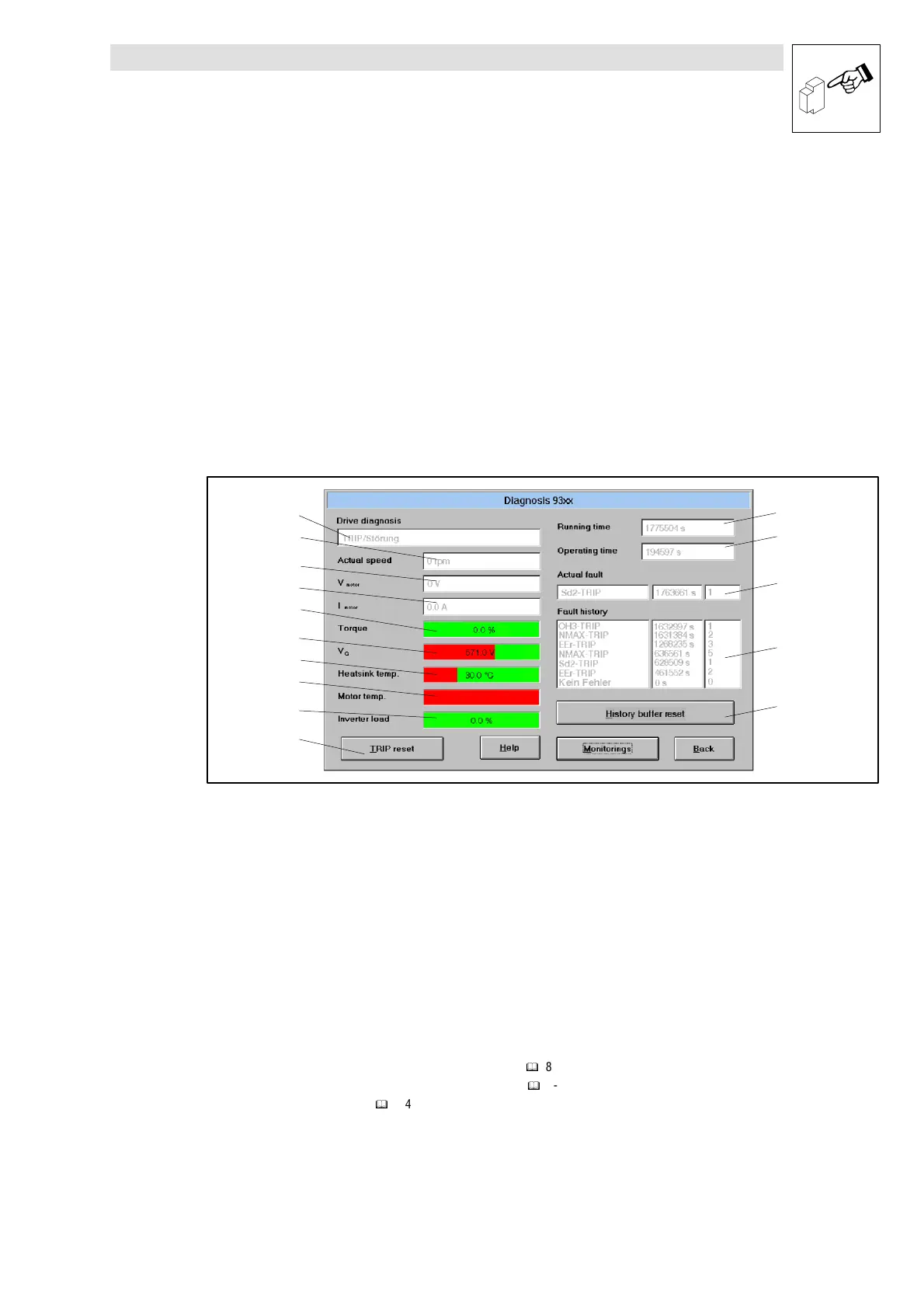

Fig. 6-1 Dialog box ”Diagnostics 9300”
1 Type of fault
2 Actual speed
3 Actual motor voltage
4 Actual motor current
5 Motor torque
6 DC-bus voltage
7 Heatsink temperature
8 Motor temperature
9 Controller load
10 Reset fault
11 Time when the supply voltage was applied
12 Time when the controller was enabled
13 Actual fault with time and frequency of the fault.
^ 8-3
14 Fault history with time and frequency of the fault.
^ 8-3
15 Reset history buffer.
^ 8-4
