FX BOOST FACTORY DEFAULT SETTINGS
HP
FACTORY
DEFAULT
HP
FACTORY
DEFAULT
0.25 - 1 5.30 % 15 2.20 %
1.5 - 2 4.40 % 20 2.00 %
3 3.60 % 25 1.80 %
5 3.00 % 30 1.60 %
7.5 2.70 % 40 1.20 %
10 2.40 % 50 - 60 0.80 %

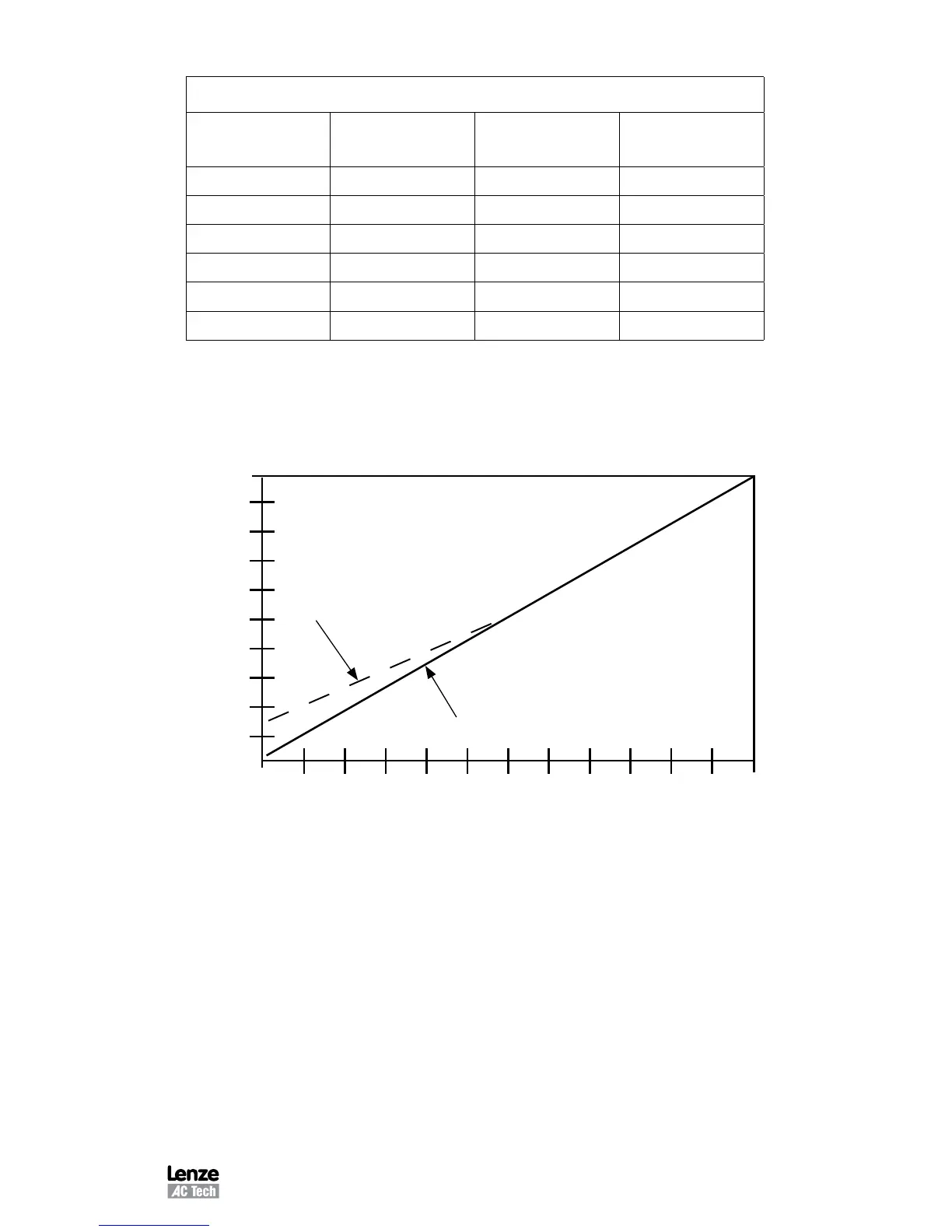

The diagram below illustrates how FX BOOST alters the V/Hz ratio to increase motor
torque.
The FX BOOST setting represents the amount of boost at 0 Hz (approximately 15% in the
example below), and as the output frequency approaches 30 Hz, the boost decreases to
zero. Therefore, at 30 Hz and above, the V/Hz ratio returns to its “normal” state.
OUTPUT FREQUENCY (Hz)
OUTPUT VOLTAGE (%)
FX BOOST
CONSTANT V/Hz
10
20 30
40 50 60
10
20
30
40
50
60
70
80
90
100
22 TORQUE (TORQUE CURVE SELECTION)
This parameter is used to select whether the output of the drive follows a constant or
variable V/Hz curve. The following selections are available:
CONSTANT Use for constant torque applications to optimize torque.
VARIABLE Use for variable torque applications to optimize energy savings.
CT / NOCMP Use for constant torque applications that require full overload
capacity at low speeds (refer to Parameter 17 - MOTOR OL).
