M301L 5

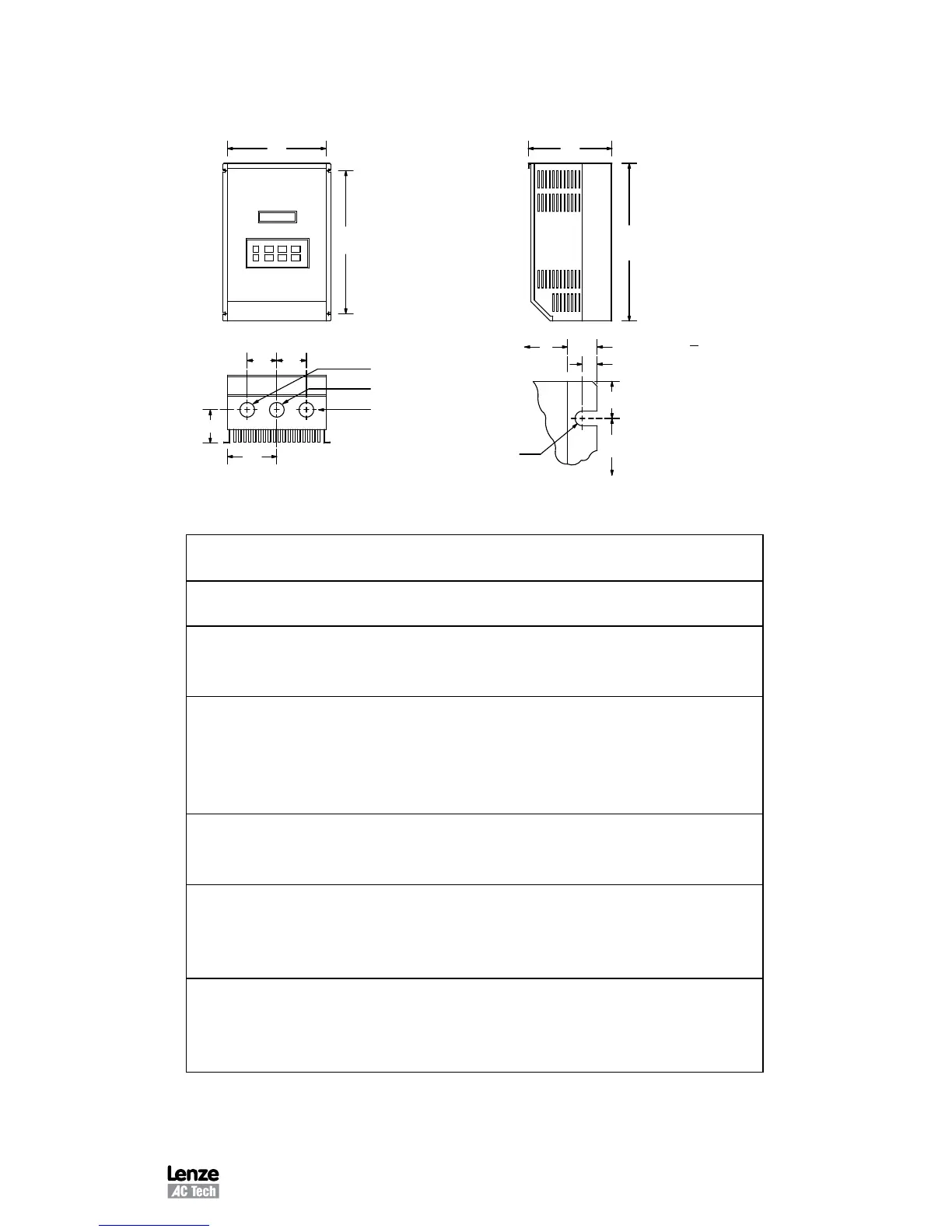

4 MC3000 DIMENSIONS
4.1 CHASSIS AND TYPE 1 ENCLOSED
D
H
V
1.00"
R
T
Mounting Tab Detail
Dia. Slot
R
W
P
N
Q Q
S Dia.
S Dia.
Conduit Holes:
0.88" Dia.
W
U
IF W < 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W = 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
HP
(kW)
INPUT
VOLTAGE MODEL H W D N P Q R S
0.25
(0.18)
240 / 120 M3103S 7.50 4.70 3.33 2.35 1.60 1.37 5.50 0.88
0.5
(0.37)
240 / 120 M3105S 7.50 6.12 3.63 3.77 1.80 1.37 5.50 0.88
240 M3205S 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
240/200 M3205 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
1
(0.75)
240 / 120 M3110S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 M3210S 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
240 / 200 M3210 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
480 / 400 M3410 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
590 M3510 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
1.5
(1.1)
240/120 M3115S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 M3215S 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240/200 M3215 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
2
(1.5)
240 M3220S 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
240 / 200 M3220 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
480/400 M3420 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
590 M3520 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
3
(2.2)
240 M3230S 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
240 / 200 M3230 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
480 / 400 M3430 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
590 M3530 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
