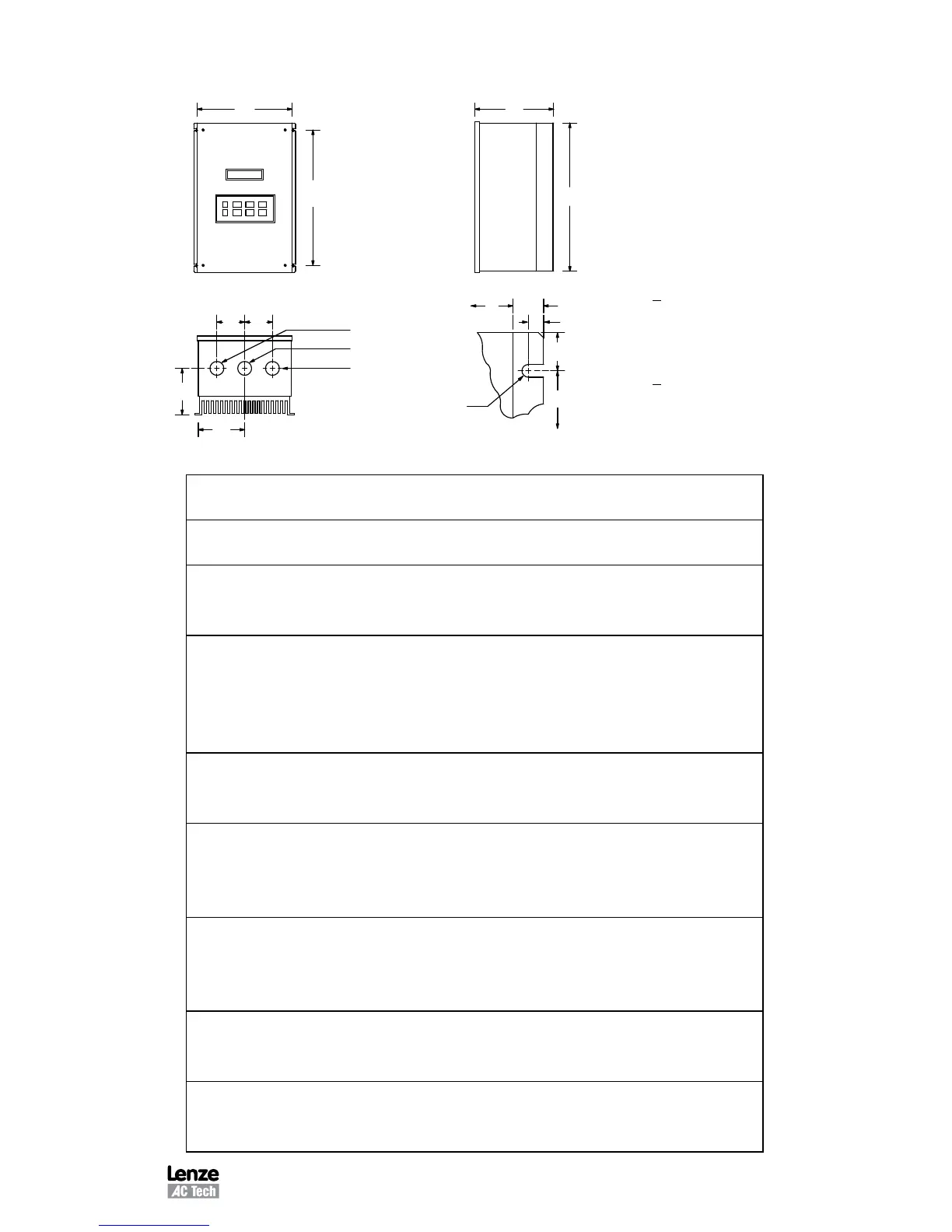

M301L 7
4.2 TYPE 4, 4X, AND 12 ENCLOSED
1.00"
W
H
R
T
D
Mounting Tab Detail
V
Dia. Slot
Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
N
P
Q
Q
R
W
U
IF W < 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W > 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
HP
(kW)
INPUT
VOLTAGE
MODEL H W D N P Q R S
0.25
(0.18)
240 / 120 M3103S 7.88 6.12 3.63 3.06 2.00 1.37 5.88 0.88
0.5
(0.37)
240 / 120 M3105S 7.88 7.86 3.75 4.80 2.10 1.37 5.88 0.88
240 M3205S 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
240/200 M3205 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
1
(0.75)
240 / 120 M3110S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 M3210S 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
240 / 200 M3210 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
480 / 400 M3410 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
590 M3510 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
1.5
(1.1)
240/120 M3115S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 M3215S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240/200 M3215 7.88 6.12 5.25 3.06 3.60 1.37 5.88 0.88
2
(1.5)
240 M3220S 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 / 200 M3220 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
480/400 M3420 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
590 M3520 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
3
(2.2)
240 M3230S 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
240 / 200 M3230 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
480 / 400 M3430 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
590 M3530 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
5
(3.7)
240 / 200 M3250 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
480 / 400 M3450 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
590 M3550 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
7.5
(5.5)
240 / 200 M3275 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
480 / 400 M3475 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
590 M3575 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
