Product description
System overview
3

19
EDS84DG752 EN 5.0
3 Product description
3.1 System overview

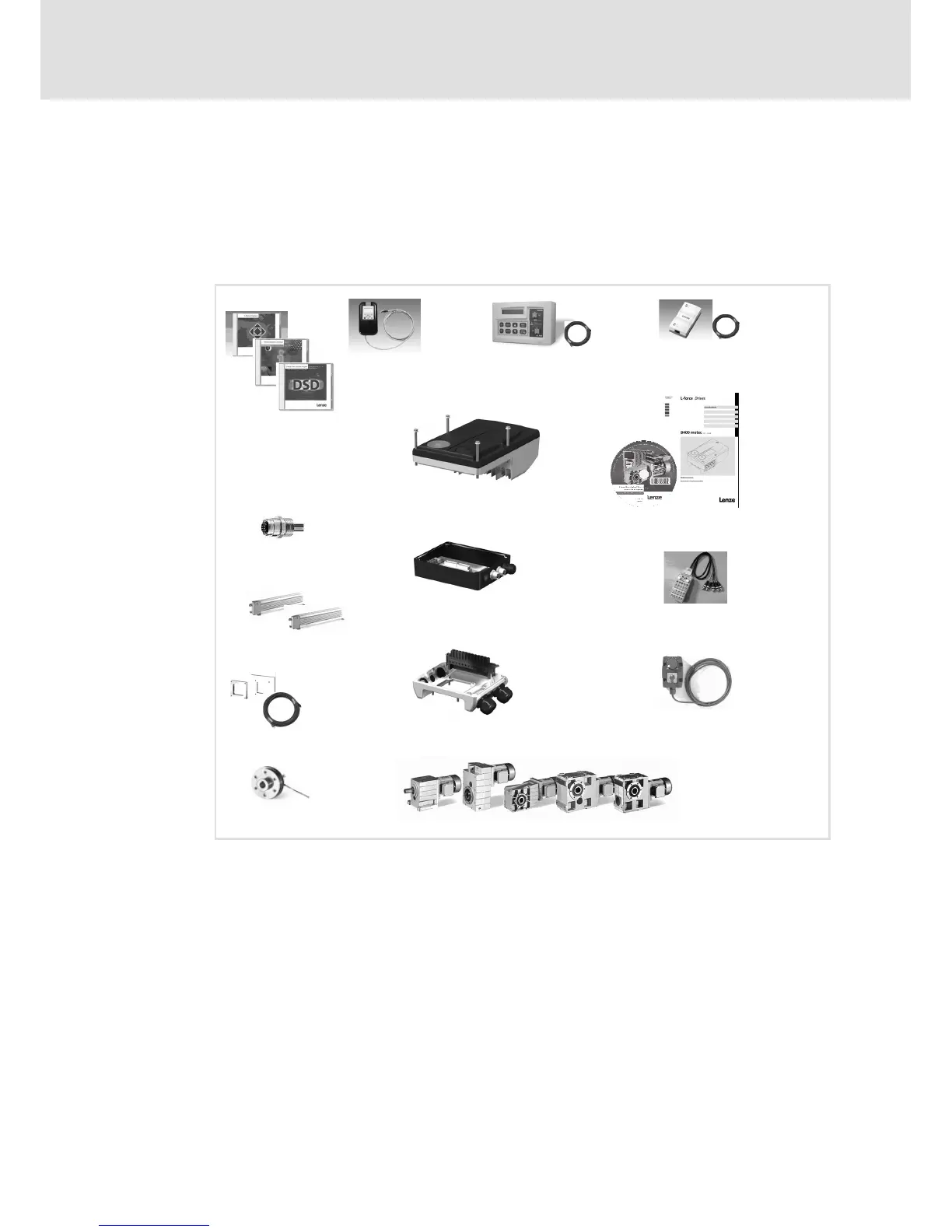

Overview of possible components of the 8400 motec system.
0
1
2
3
4
5
6
78
9
:
;
<
>
=
E84GDC010
 Drive Unit (decentralised 8400 motec frequency inverter)
 Communication Unit (fieldbus interfaces)
 Wiring Unit (motor connection adapter)
 Gearbox/geared motors
 Plugs
 Motor holding brakes (spring-applied brakes)
 Brake resistors
 Programming adapters
 Diagnosis terminals (keypads)
 Diagnostic adapters
 Software
 Product documentation
 Operating boxes
 Potentiometer units
 Mounting adapters and motor cables
