Installation
Wall mounting of 8400 motec controller
5
75
EDS84DG752 EN 5.0
5.10 Wall mounting of 8400 motec controller

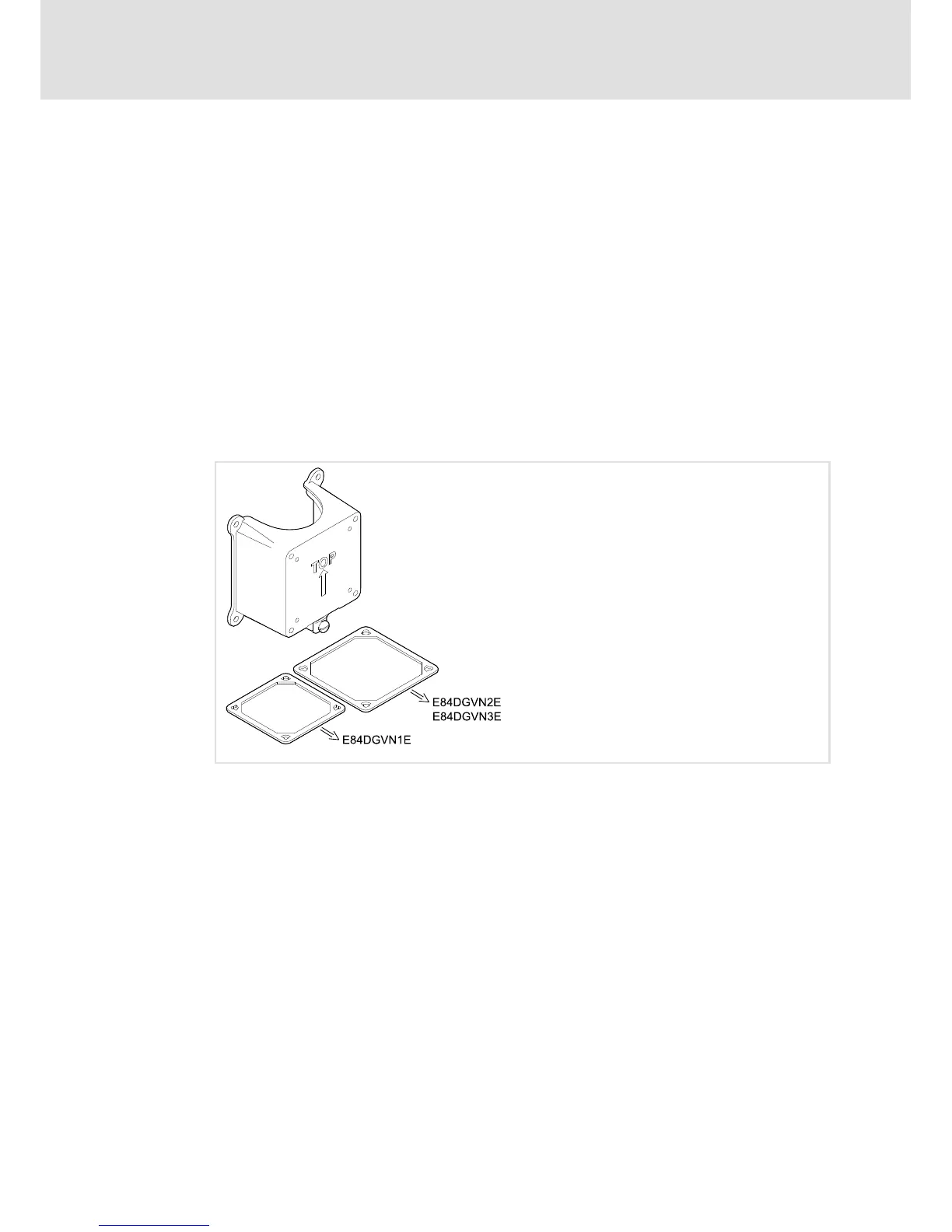

Wall mounting requires optional accessories:
ƒ 0.37 ... 3.0 kW: E84DZMAWE1
Before working on an existing drive, make sure that the system is isolated from supply and
protected against restart.
First attach the wall adapter to a suitable position.
For an installation of the controller conforming to standards, the PE conductor connector
can be used for an additional equipotential bonding.
The following mounting steps of the 8400 motec motor inverter corresponds to the
retrofitting procedure.
Additional workstep when the Wiring Unit is wired:
ƒ Laying and connection of the motor cable, with temperature monitoring if required.
E84DZMA010_a
