5.9 Measures when drive is used in IT systems
If the drive is mounted within an IT system, internal filters must be separated from the PE
conductor.
How to proceed:
1. If the controller has already been mounted: switch off mains voltage!
2. Make IT screw accessible.
– Devices up to 3 kW: unscrew small cap on the top.
– Devices from 4 kW: remove small cover on the top.
3. Unscrew and remove the screw(s).
4. Screw the cap on or fit the cover.

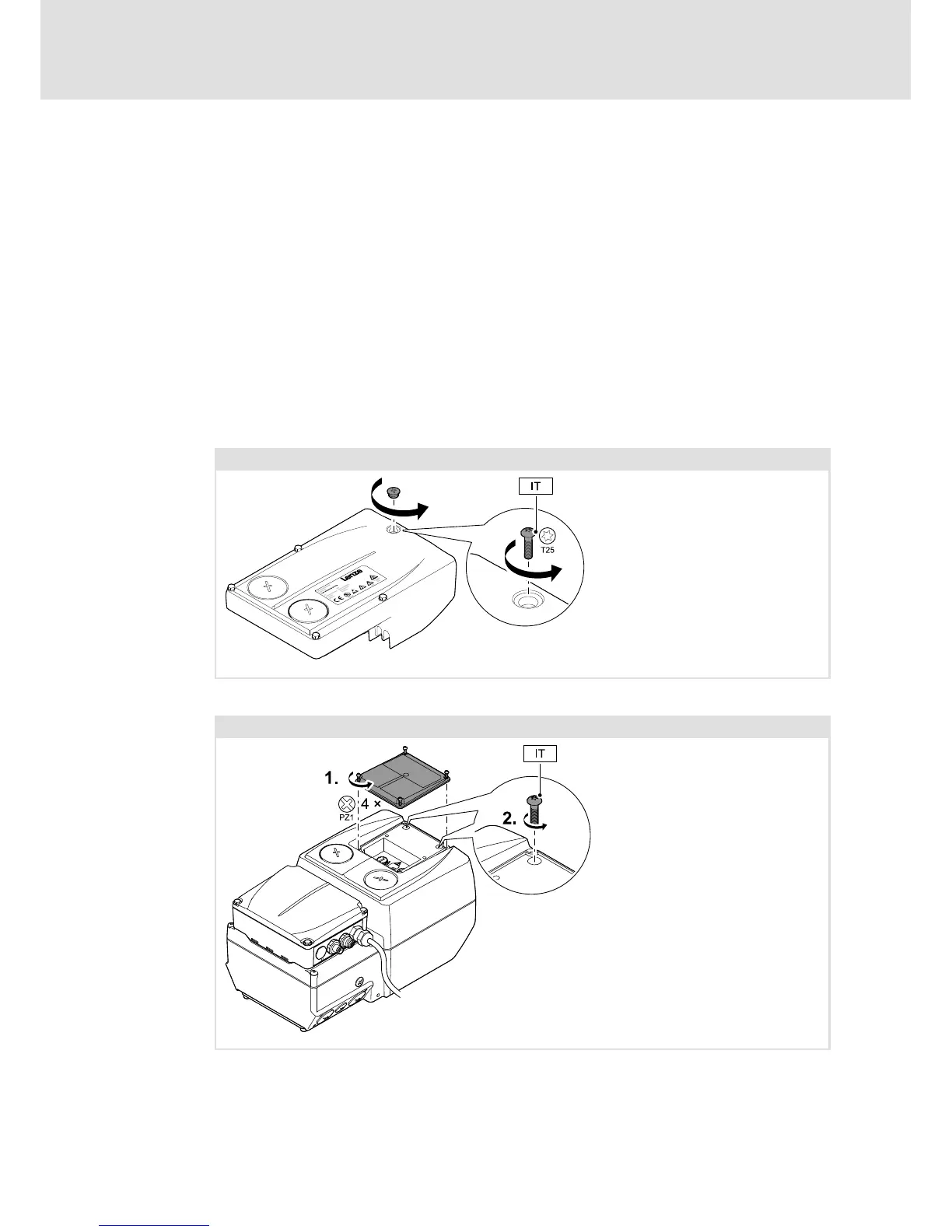

IT system
0.37 ... 3 kW
E84DG046
4 ... 7.5 kW
E84DG084
