Technical data
Terminal description

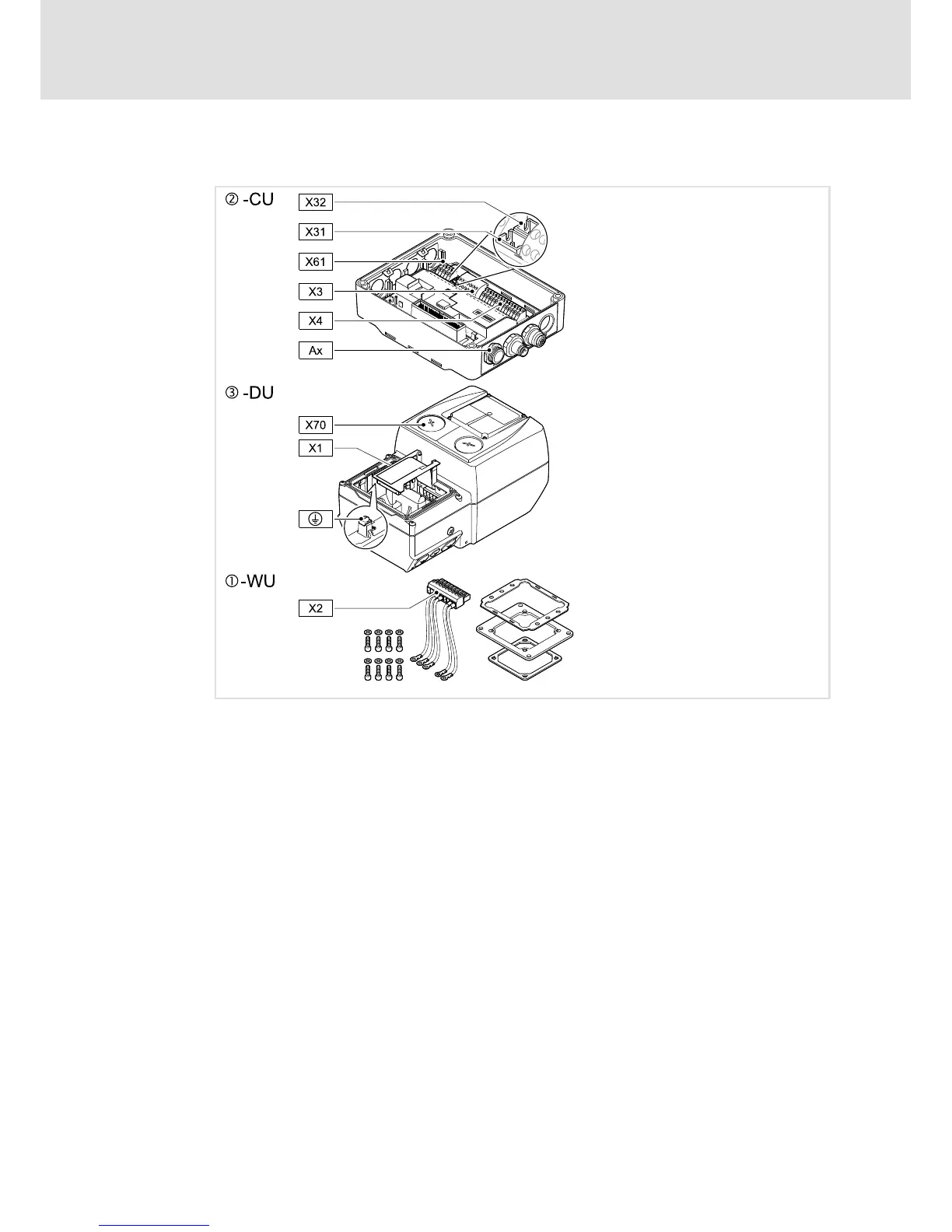

Overview
4
43
EDS84DG752 EN 5.0
4 ... 7.5 kW
E84DGDV087
WU - Wiring Unit
X2/U,V,W Motor
X2/Rb1, Rb2 Brake resistor
X2/BD1, BD2 Motor holding brake
X2/T1, T2 Motor temperature monitoring
CU - Communication Unit
The connection opportunities depend on the communication module option.
X4/COM, NO Switching contact, potential-free
X4/Ax, GND Analog input
X4/RFR, DIx, DO1 Digital inputs and outputs
X4/24O,GND 24-V supply voltage for external sensors
X3/X31/X32 Fieldbus
X61/... Safety
Ax Position of LED display, connector or cable gland
DU - Drive Unit
X1/L1, L2, L3 Mains
X70 Diagnostics
Protective earth
