Commissioning
Quick commissioning
General configuration settings
6
80
EDS84DG752 EN 5.0
Setting elements 4 ... 7.5 kW

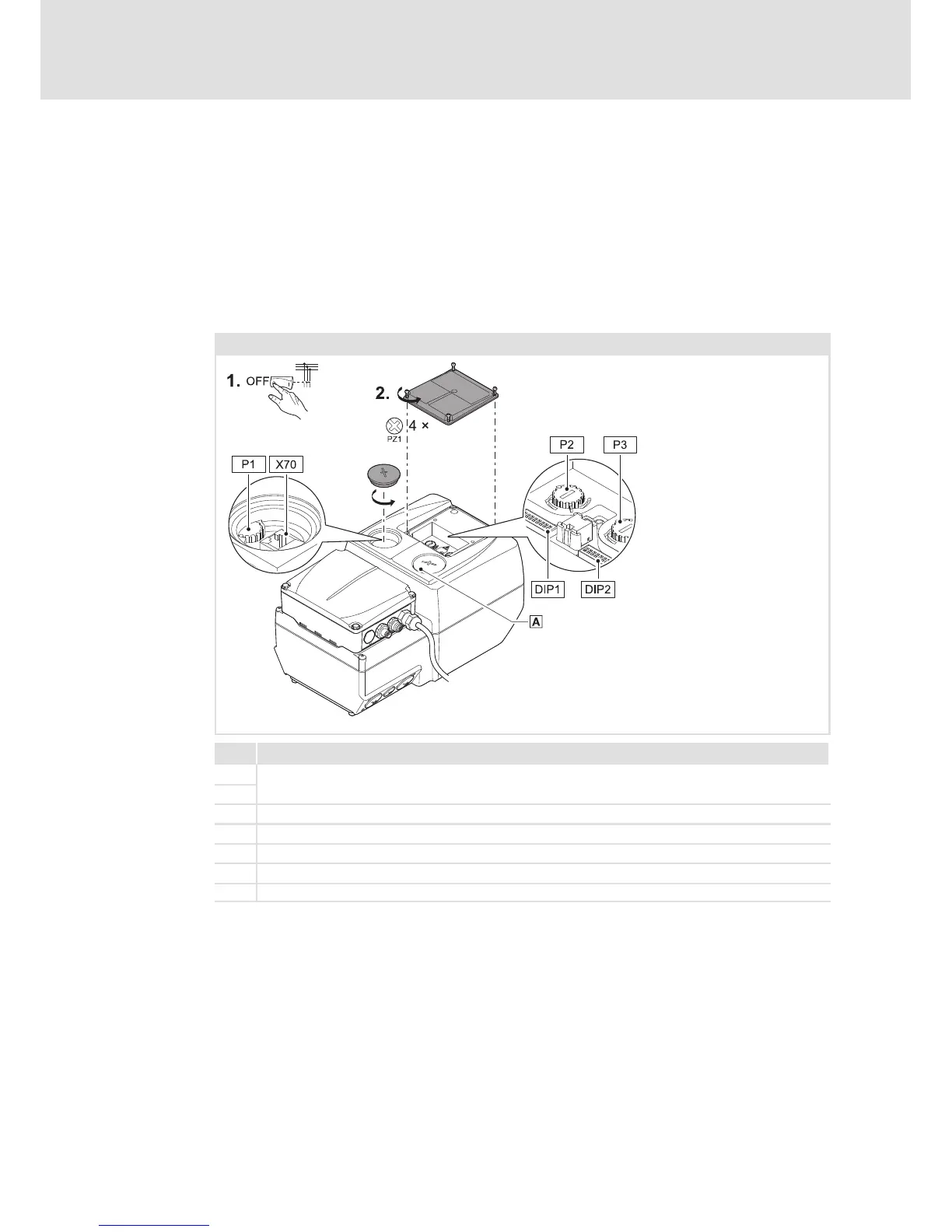

The setting elements are located on the top of the drive unit.
ƒ Provide for isolation from supply and secure to prevent a restart.
ƒ Remove small cover on the top.
Settings carried out via DIP1, DIP2, P2, P3, and P1 must be activated with DIP1/1. The
settingsare acceptedagain at everymains connection. Thus, changes on parametersmade
in the meantime may be overwritten.
4 ... 7.5 kW
E84DG083
Name
DIP1
Switch for basic setting of quick commissioning
DIP2
P1 Setting ”Top Cover: Speed ... %”
P2 Setting ”Speed ... %”, (speed)
P3 Setting ”Ramp ... s”, (acceleration/deceleration time)
X70 Connection for USB diagnostic adapter E94AZCUS or diagnosis terminal
LED status display
