Installation
Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

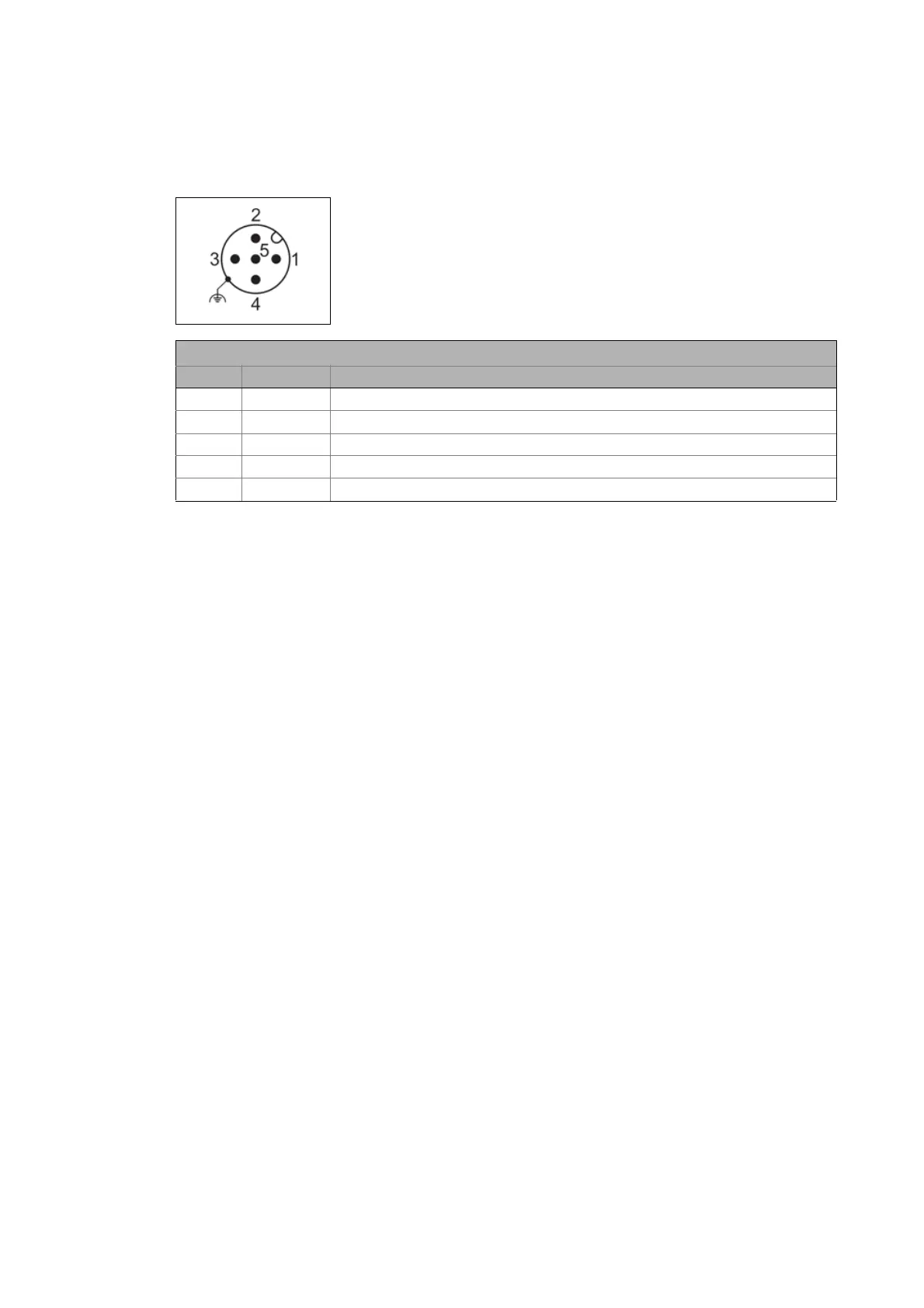

5.2.2 AS-i connection
• M12 pins, 5-pole, A-coded
• Wiring of terminal strip X3
AS-i connection
Pin Signal Description
1 ASi+ AS-i data line, positive
2 - Not assigned
3 ASi- AS-i data line, negative
4 - Not assigned
5 - Not assigned
