8.2 Port interconnection of process data objects (PDO)

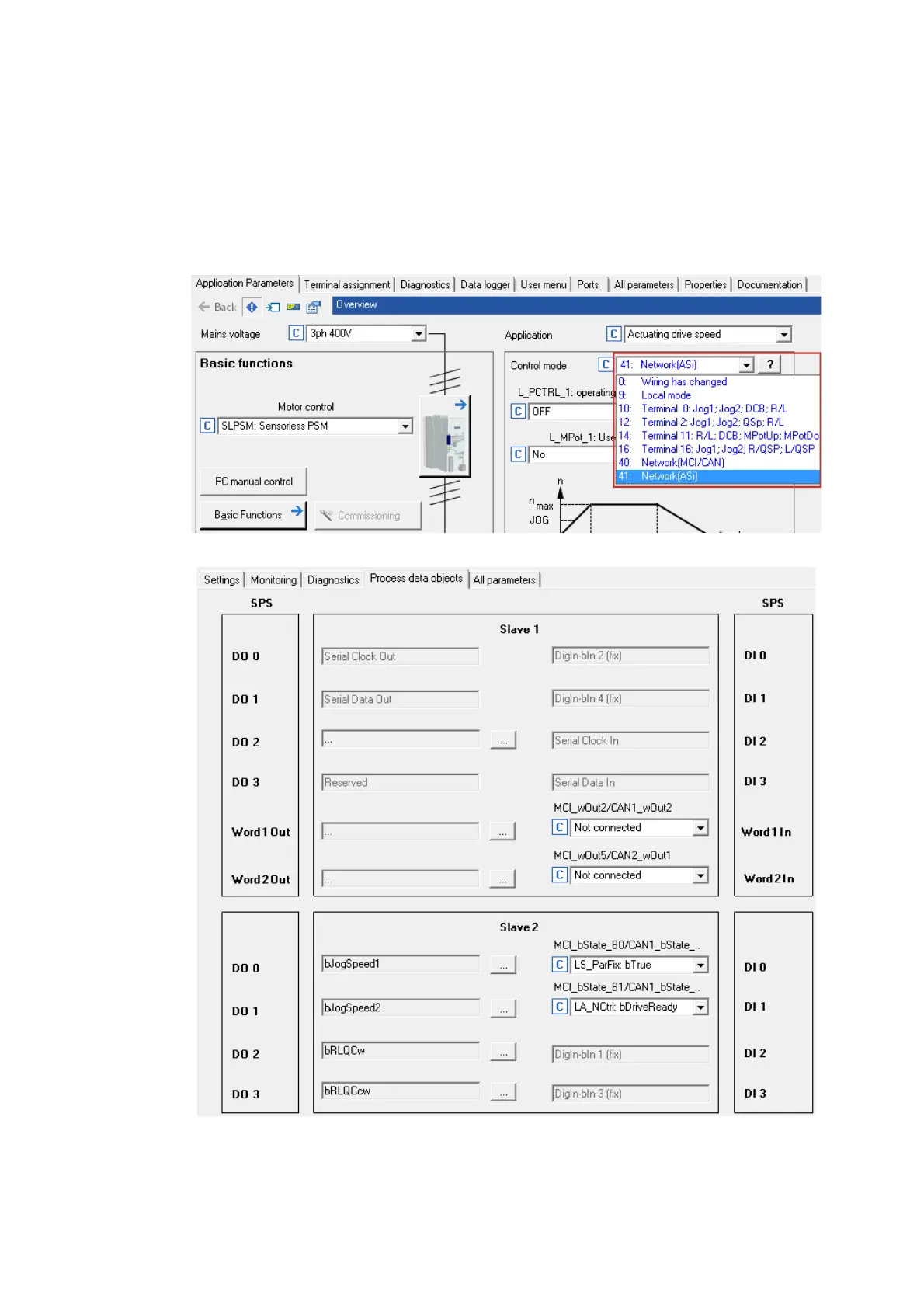

 How to configure the port interconnection in the »Engineer«:
1. Go to the Application parameters tab to make the default setting of the I/O configuration.
Select the "Network (ASi)" control mode (C00007).
2. The Process data objects tab of the AS-i interface displays the preset I/O configuration.
