Process data transfer
Port interconnection of process data objects (PDO)
42
Lenze · Decentralised frequency inverter 8400 motec (AS-Interface option) · EDS84DMOTASI EN 5.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

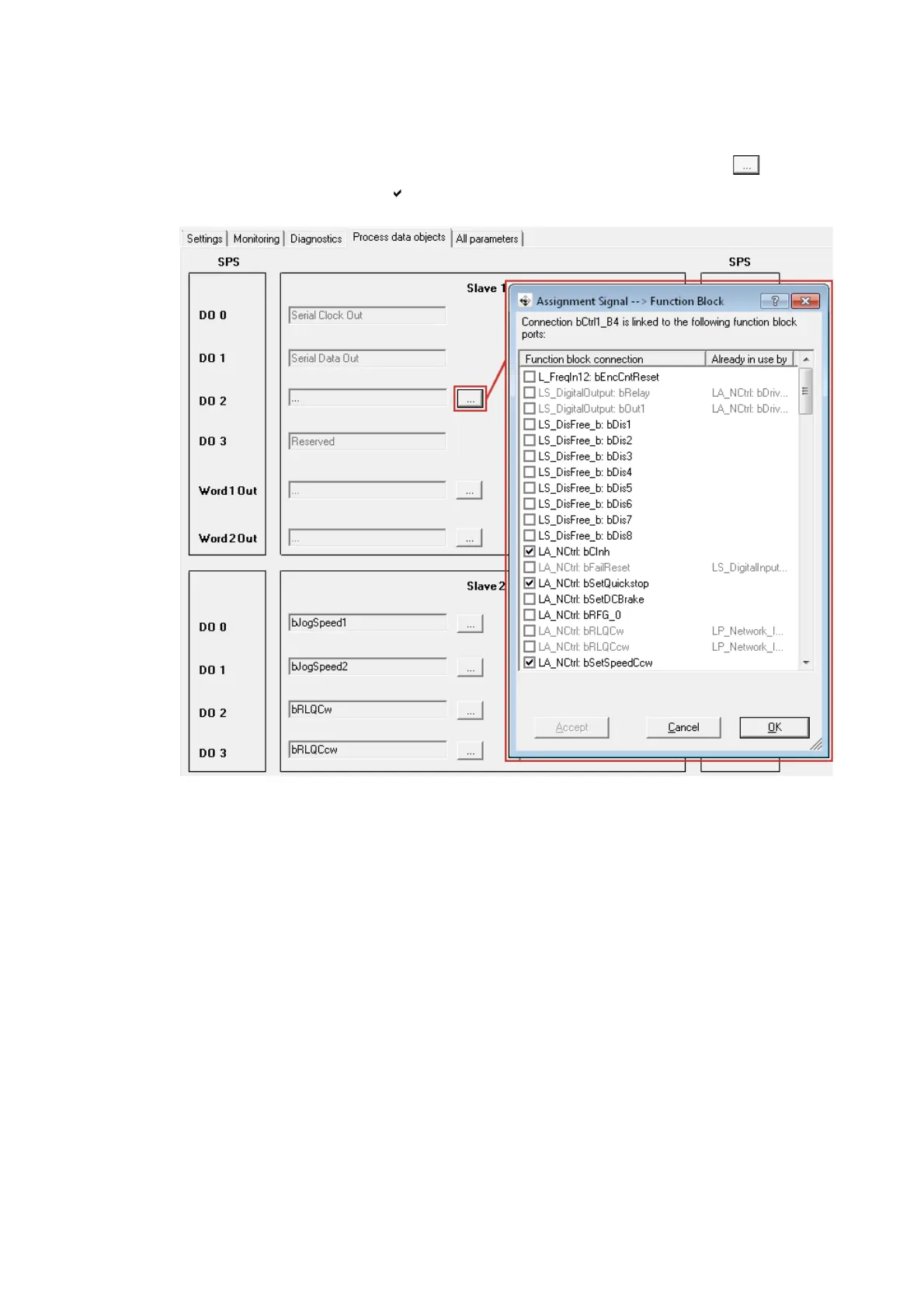

3. Open the "Assignment Signal --> Function Block" dialog window using the buttons.
By setting checkmarks (
) , select the signals here that are sent from the PLC (AS-i master)
to the inverter.
4. Confirm the selection by clicking OK.
