Configuration
Configuring MotionBus/system bus (CAN)
Setting CAN node address and baud rate
8
199
EDBCSXM064 EN 11.0

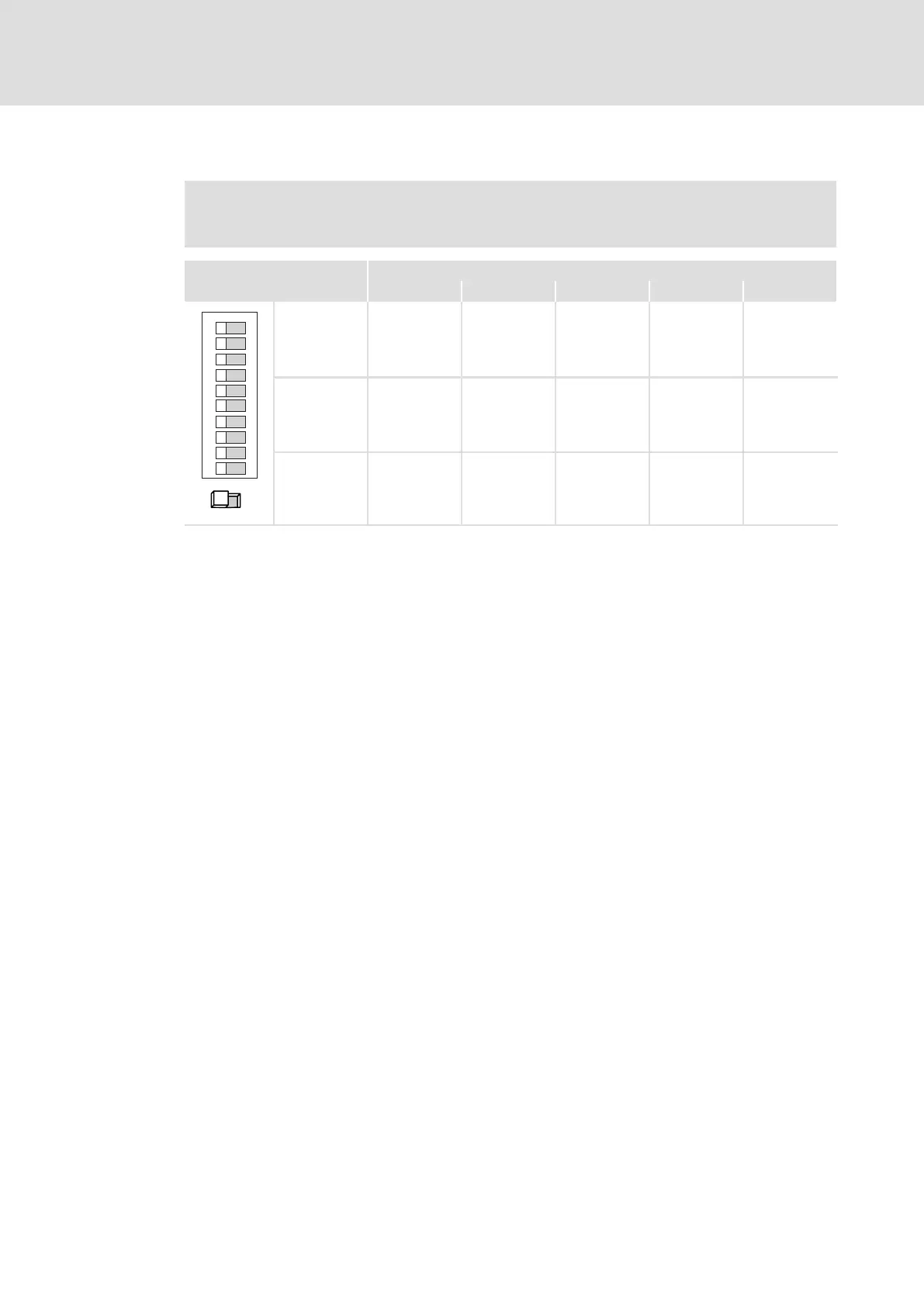

Baud rate setting
Note!
The baud rate must be set identically for all CAN nodes.
Switch
Baud rate [kbit/s]
1000
500
250
125
50
ON
OFF
ON
1
6
2
7
4
3
8
5
91
0
8
ON
OFF
OFF
OFF
OFF
9
OFF
OFF
OFF
ON
ON
10
OFF
OFF
ON
OFF
ON
198
200
