8 I/O data transfer (implicit messages)
8.6 I/O configuration with »RSLogix 5000« version 20 or higher
74
Lenze · E84AYCEO communication module (EtherNet/IP™) · Communication Manual · DMS 3.0 EN · 10/2013 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

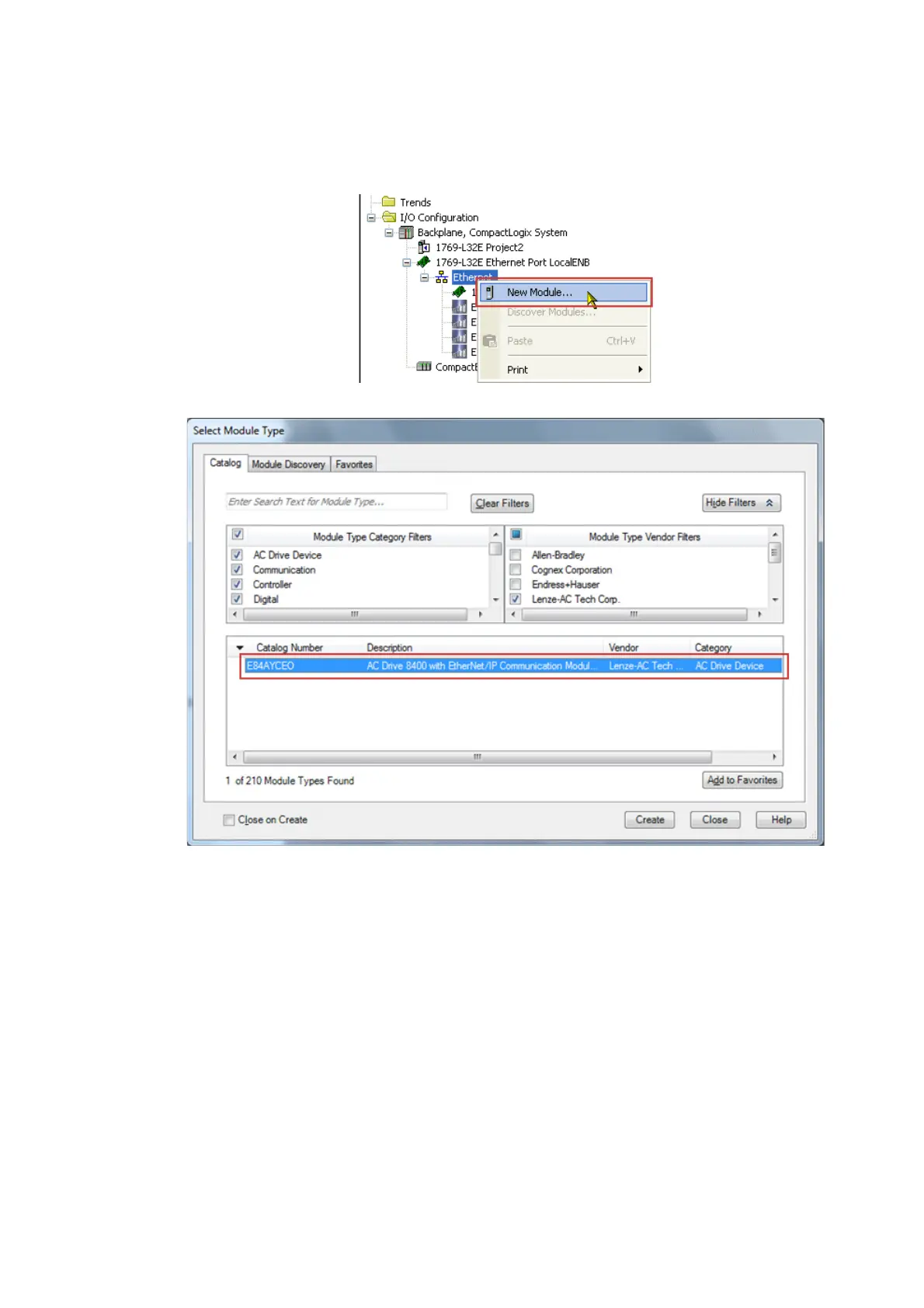

3. Right click on "Ethernet" and execute the "New Module ..." command from the context
menu.
4. Go to the "Select Module Type" dialog box and select "E84AYCEO" on the Catalog tab.
5. Confirm the selection with Create.
