11.1.3 Status indicators at the RJ45 sockets (X259, X260)
The LEDs at RJ45 sockets X259 and X260 indicate the status of the Ethernet connection.

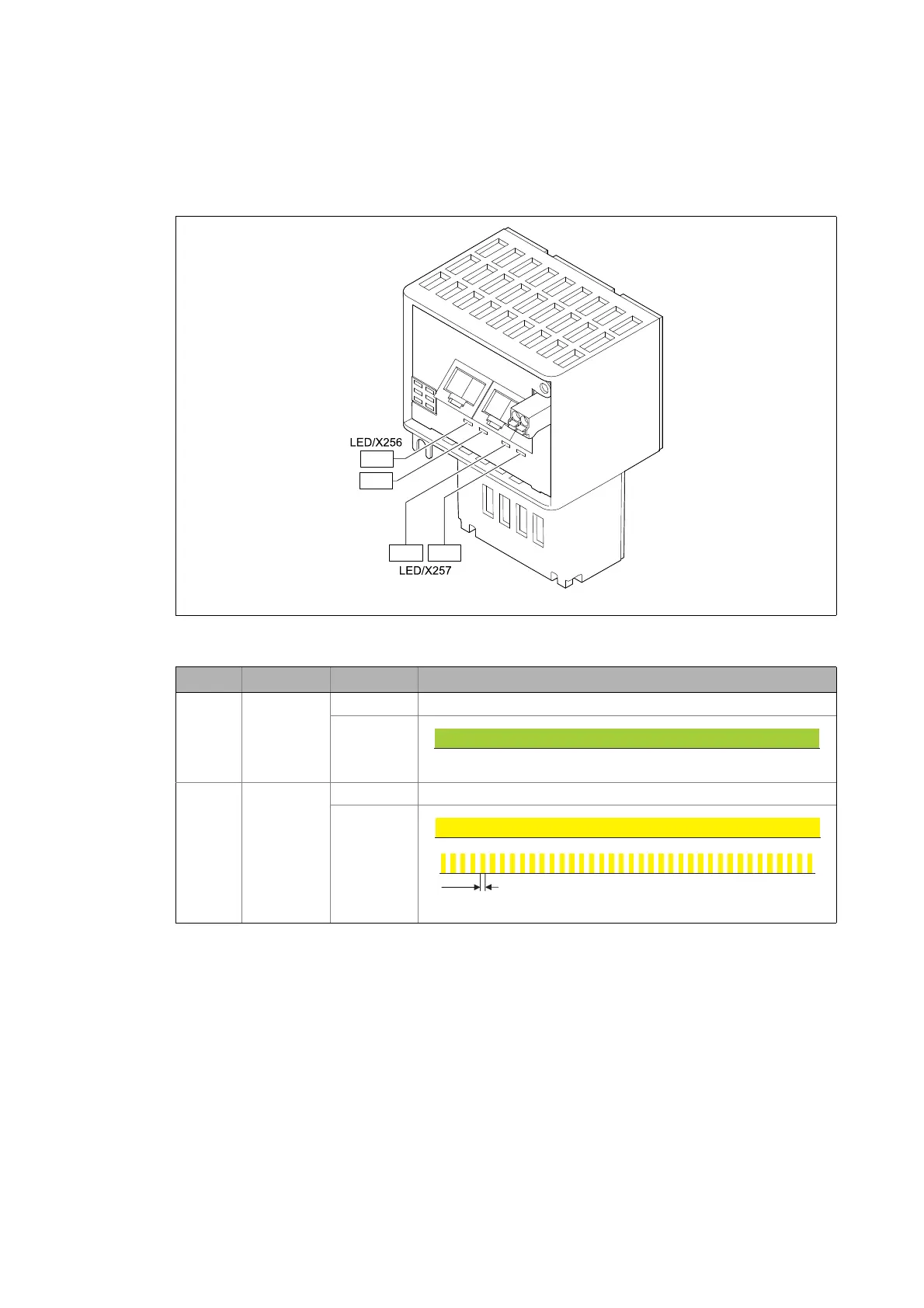

[11-3] LEDs Link , Act
E84YCEO003C
Link
Act
Link
Act
LED Colour Status Description
Link Green Off No Ethernet connection
On
There is a physical Ethernet connection.
Act Yellow Off No Ethernet data transfer
On or
flickers
Data are being exchanged via Ethernet.
50 ms
