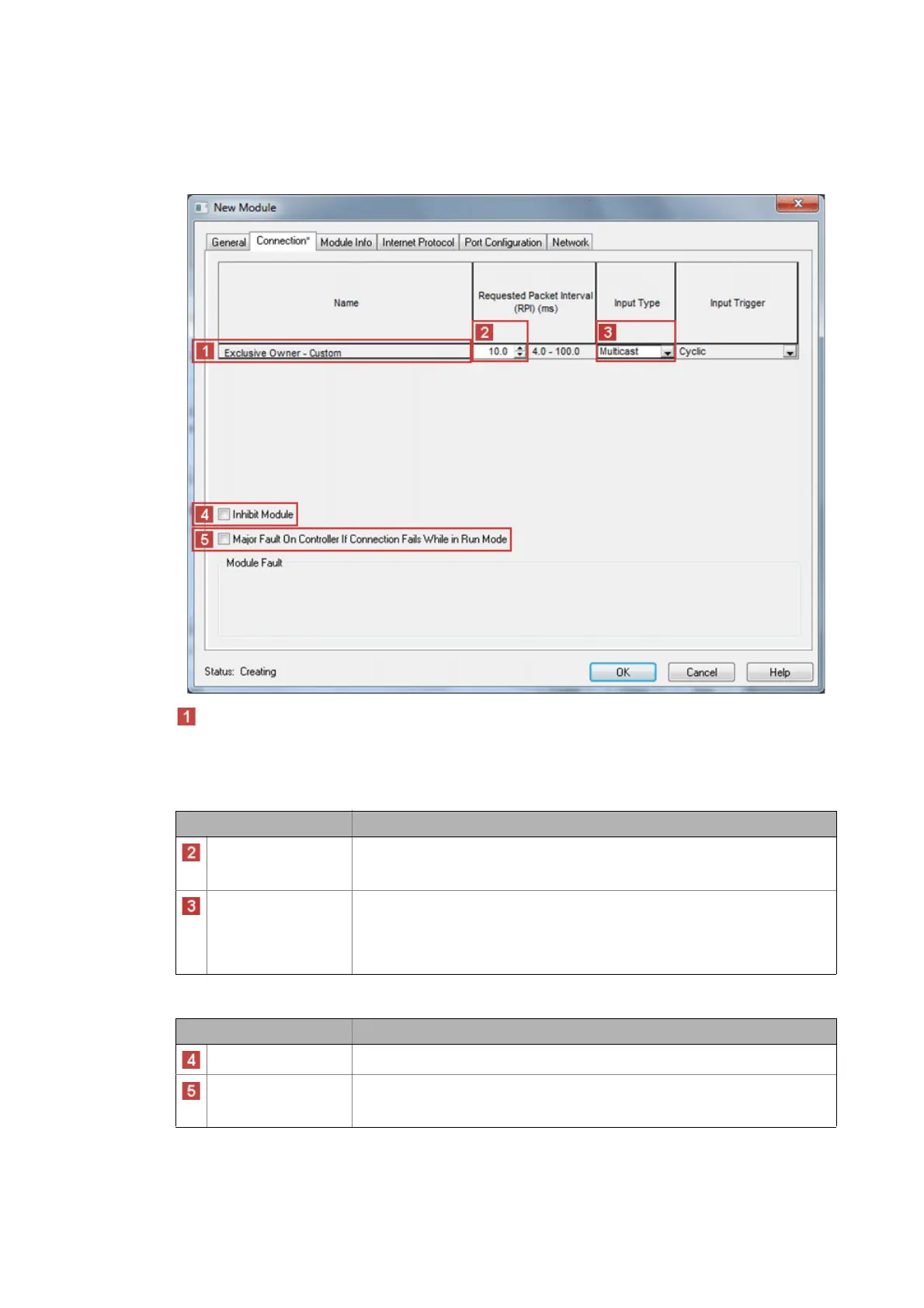

10. Open the "New Module" dialog window, select the Connection tab and set further
properties.
"Name" displays the name of the connection set under 8..
The example shows an "Exclusive Owner - Custom" connection. According to this, the name of an
"AC Drive Profile" connection may be displayed here too.
Required settings
Optional settings
Settings Description
Requested Packet
Interval (RPI)
Set RPI 4.0 ms. (Standard: 10 ms)
The RPI [ms] specifies the intervals for the I/O data exchange between the drive
(adapter) and the controller (scanner).
Input type Select the "Multicast" input type.
• The input data is sent from the adapter to the scanner by means of multicast
telegrams.
• Other scanners can access this data in addition to the currently configured
scanner ("Listen only" or "Input only" connections).
Settings Description
Inhibit module This option serves to interrupt or inhibit the communication to the adapter.
Major Fault On
Controller If Connection
Fails While In Run Mode
This option serves to put the controller into the error status if the EtherNet/IP
connection to the drive fails while the controller is running.
