STATE BUS (X5/ST)
The state bus is a controller-specific bus system for simple monitoring in a network of drives:
• Controls all networked drives in a preselected state.
• Up to 20 controllers can be connected.
• Connection of the STATE-BUS cables at terminals X5/ST.
Stop!
Do not apply an external voltage across terminals X5/ST.
9300PLC122

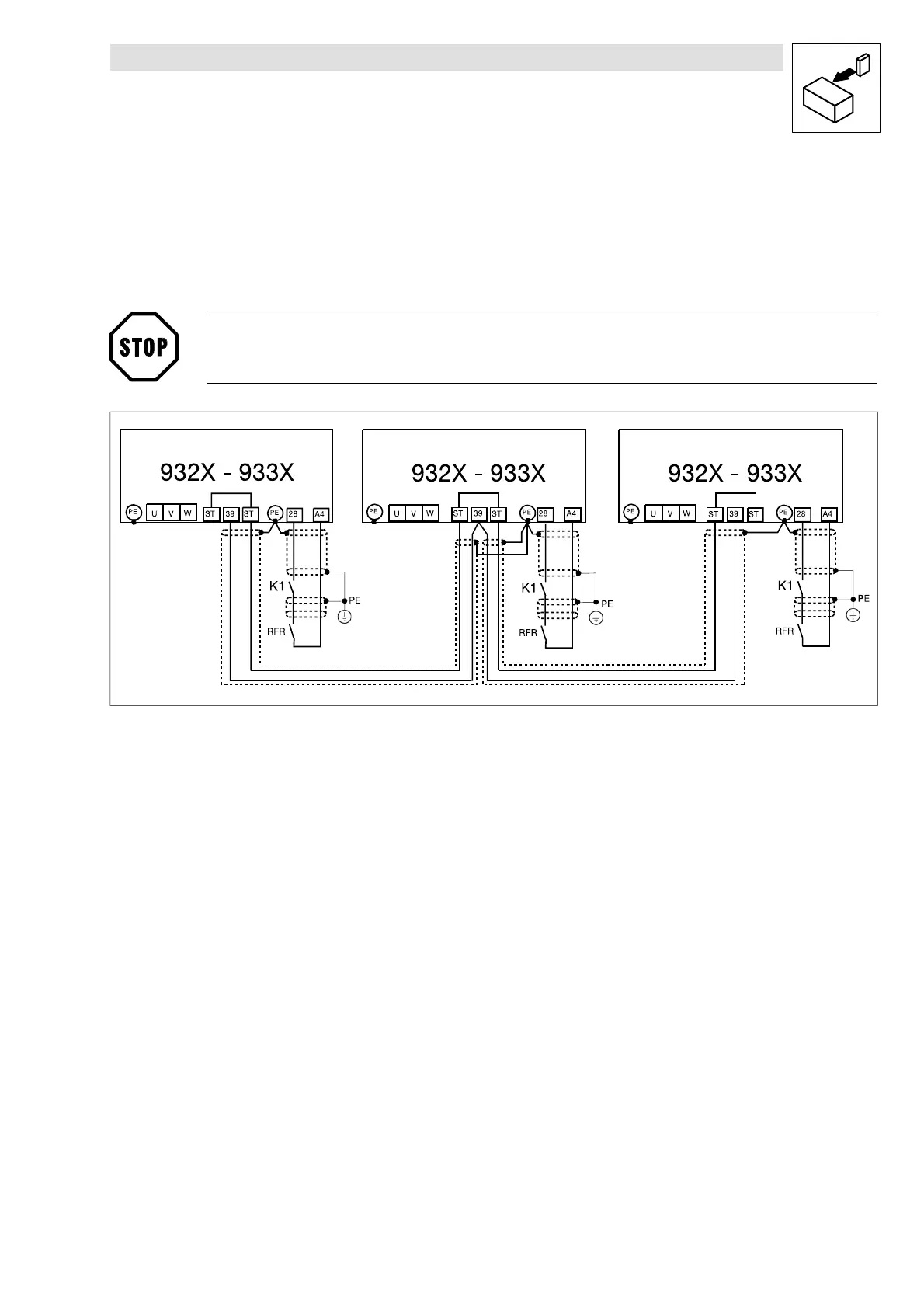

Fig. 4-12 Monitoring of a network of drives with the STATE BUS
