Lenze L-force PROFIBUS-DP User Manual

Installation
Electrical installation
Wiring with a host (master)
5

22
EDS82ZAFPC010 EN 4.0
5.2.2 Wiring with a host (master)

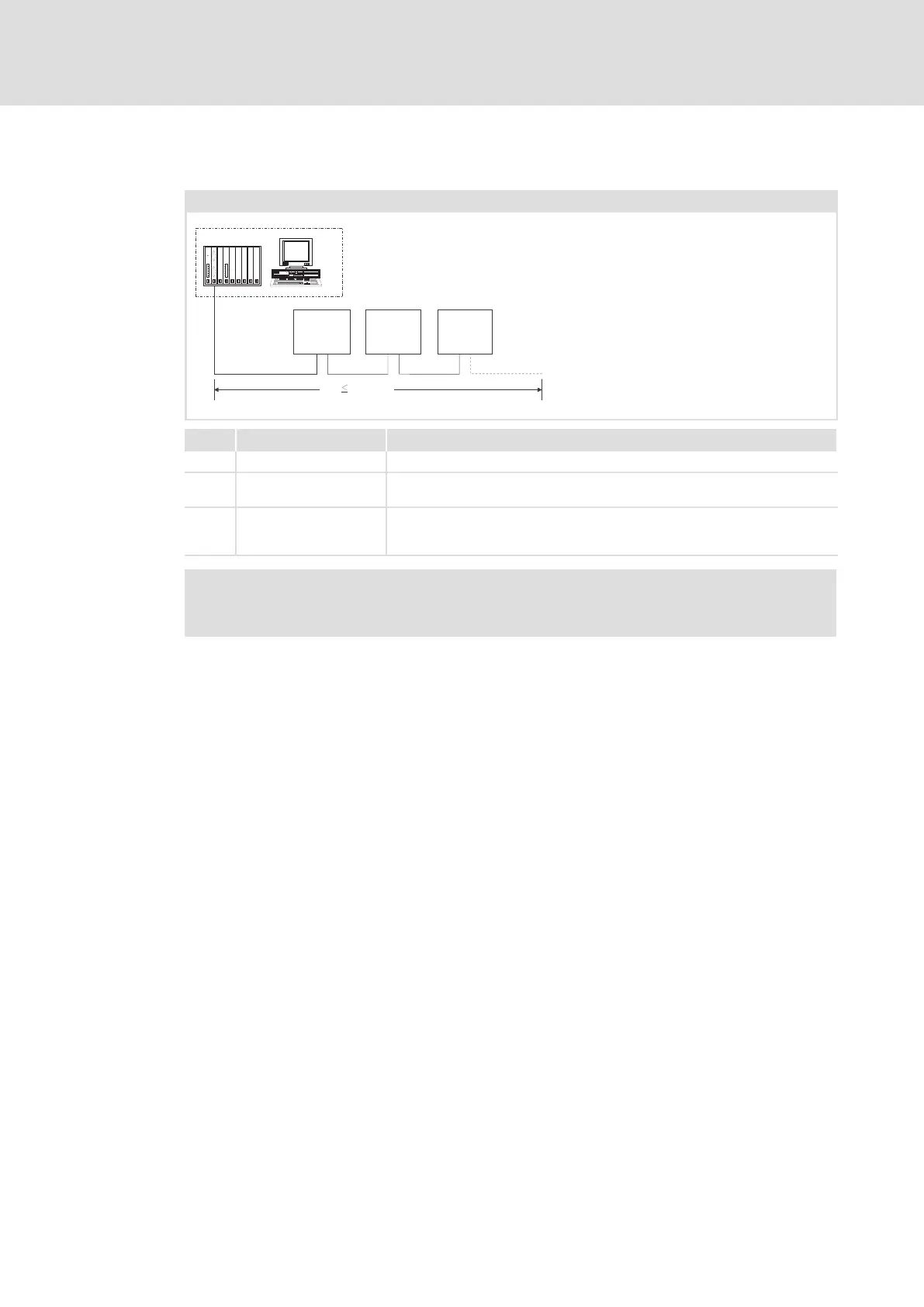

Basic design of a PROFIBUS network with RS485 cabling without repeater
starttec
8200 vector
8200 motec
+
E82ZAFPC0xx
starttec
8200 vector
8200 motec
+
E82ZAFPC0xx
starttec
8200 vector
8200 motec
+
E82ZAFPC0xx
333
1
222
0m
1200 m
E82ZAFP005
No. Element Note
1 Host E.g. PC or PLC with PROFIBUS master interface module
2 Bus cable Connects the PROFIBUS master interface module to the function modules.
l The baud rate depends on the length of the bus cable ( 24).
3 PROFIBUS slave Applicable standard device ( 11)with function module
l Activate bus terminating resistors at the first and last physical node
( 40).
 Note!
When using a repeater, max. 125 nodes can communicate via the PROFIBUS.
