Leroy-Somer DIGIDRIVE SE2.5T User Manual

Installation and commissioning
DIGIDRIVE
Variable speed drive
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
53

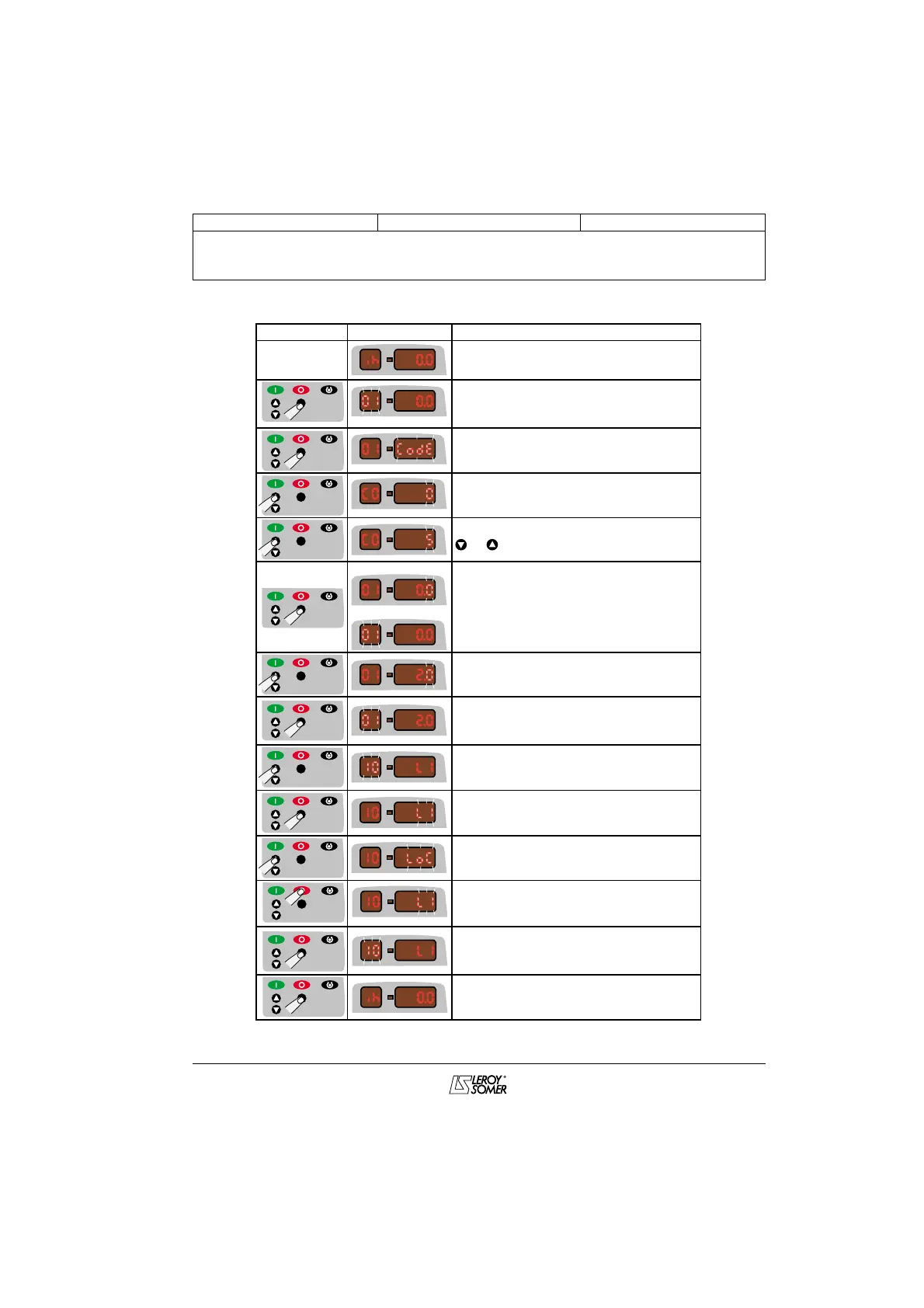

4.6.2 - Access to parameter setting using a security code
The value of the parameter can now be modified.
Parameter-setting mode is now accessible for all
parameters
CAUTION:
If the code is incorrect, restart the procedure
Action Display Comment
Power-up
Drive locked
The message " CodE " flashes on the right-hand
indicator.
Access to parameter-setting mode is blocked.
Modification of the parameter.
If necessary, select a new parameter to be
modified. When the modifications have been
completed, setting the drive parameters must
again be blocked.
M
1x
M
1x
M
M
Select parameter 10.
Its value is " L1 " or " L 2 " (depending on which
parameters have been modified previously).
For example : 10 = L1.
Select the value " LoC " to reactivate the
security code.
Access to parameter-setting mode
Parameter 01 is displayed flashing.
Select the parameter to be modified. For
example, parameter 01.
1x
M
1x
M
9x
M
1x
The left-hand indicator displays " CO " to remind
the user that this phase corresponds to setting
the code.
Display the security code using the
or . keys (for example, code 5).
M
1x
M
5x
• Correct code :
• Incorrect code :
M
2x
Return to the initial drive status.
The security code is stored. Parameter
10 automatically returns to value L1.
M
1x
M
1x
M
1x
Parameters 01 to 10 can only be accessed
in read mode. To access the other parameters
(read mode only), parameter 10 must be set
to L2.
