Installation and commissioning
DIGIDRIVE
Variable speed drive
64
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
:Return to factory settings
and brake control
Adjustment range : no, Eur, USA, br.Eu,
br.US
Factory setting : no
CAUTION:
Lock the drive before changing 2
2
9
9
.
no: Return to factory settings is not
performed.
Eur: Configures the drive to factory settings
for 50Hz mains supply.
USA: Configures the drive to factory
settings for 60Hz mains supply.
br.Eu: Configures the drive to factory
settings for 50Hz mains supply with "brake
control" configuration (provides access to
parameters 5
5
1
1
to 5
5
4
4
, see section 4.9).
br.US: Configures the drive to factory
settings for 60Hz mains supply with "brake
control" configuration (provides access to
parameters 5
5
1
1
to 5
5
4
4
, see section 4.9).
After modifying 2
2
9
9
, press the Reset
key . The display returns to 0
0
1
1
, and
parameter 1
1
0
0
reverts to "L1".
:Deceleration mode
Adjustment range : 0 to 2
Factory setting : 1
0: Standard deceleration ramp. If the
deceleration ramp which has been set is
too fast in relation to the inertia of the load,
the DC bus voltage exceeds its maximum
value and the drive switches to overvoltage
fault "OU".
1 : Standard deceleration ramp with
automatic extension of the ramp time in
order to avoid causing a DC bus
overvoltage fault on the drive.
2 : The drive allows the motor voltage to be
increased to 1.2 times the rated voltage set
in 0
0
8
8
(motor rated voltage), to avoid
reaching the maximum DC bus voltage
threshold.
However, if this is not adequate, the
standard deceleration ramp time is
extended, to avoid causing a DC bus
overvoltage fault on the drive.
Mode 2 offers faster deceleration than
mode 1, for the same amount of energy,
assuming that the motor can withstand the
losses.
• If a braking resistor is connected
to the drive, it is essential to set
parameter 3
3
0
0
= 0.
:Stop mode
Adjustment range : 0 to 3
Factory setting : 1
CAUTION:
During operation, opening the unlock
terminal (terminal 9), causes the motor
to stop in free wheel mode, regardless
of the value of 3
3
1
1
.
0: freewheel stop.
The power bridge is deactivated as soon as
the stop command is given.
The drive cannot receive another run
command for 2s, the motor
demagnetisation time.
The display indicates "rd" 2s after the stop
command. The machine stopping time
depends on its inertia.
2
2
9
9
3
3
0
0
3
3
1
1

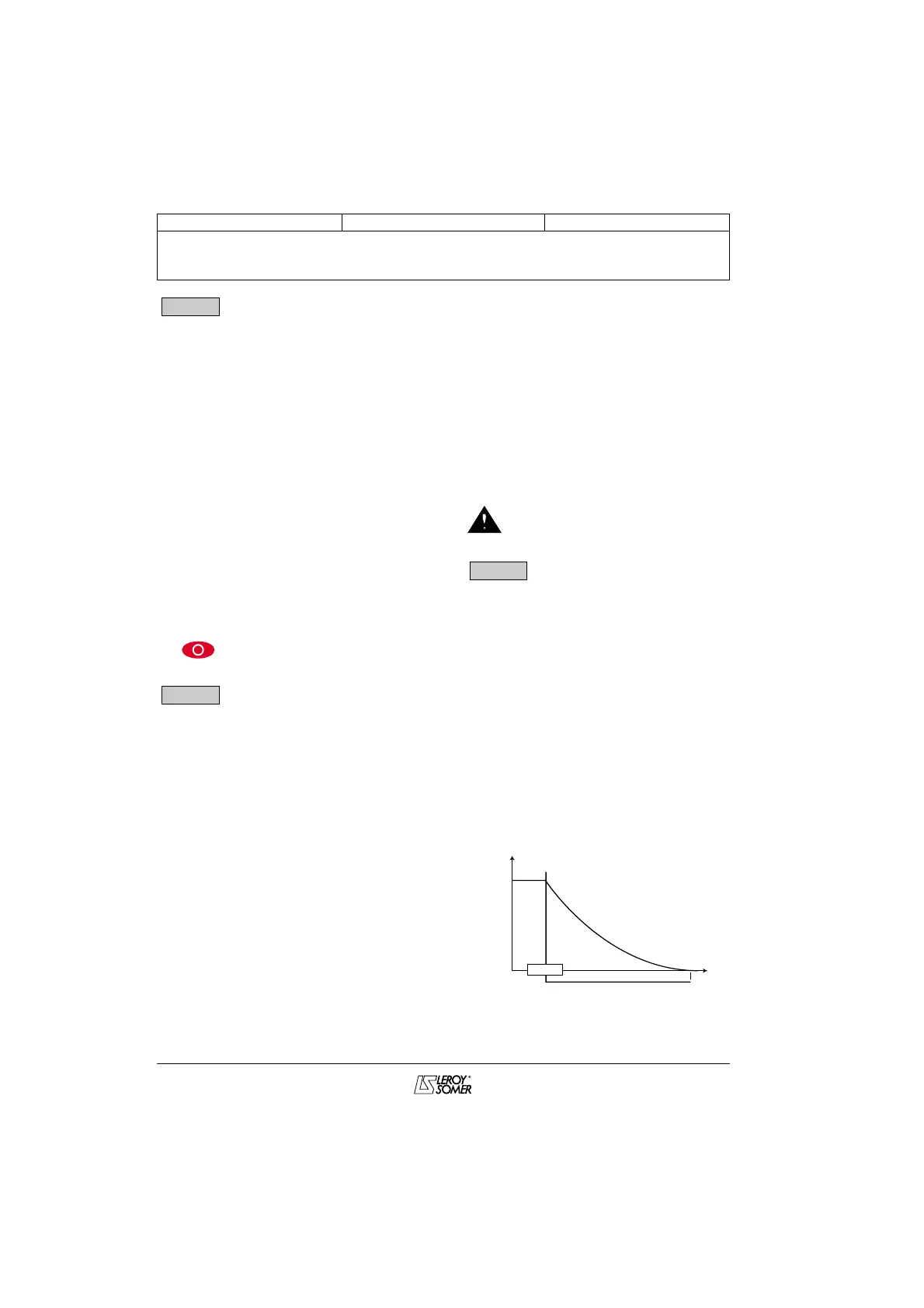

Motor
speed
t
Time
Freewheel stop time
Stop
