NVR-02 Series User Manual
Event Servers
Event servers are to be used with event trigger actions. In case of
unusual motion detected by the camera or a disk failure, the recorder
can send notification with the acceptable format (image/txt) to a
destined event server according to the configuration.

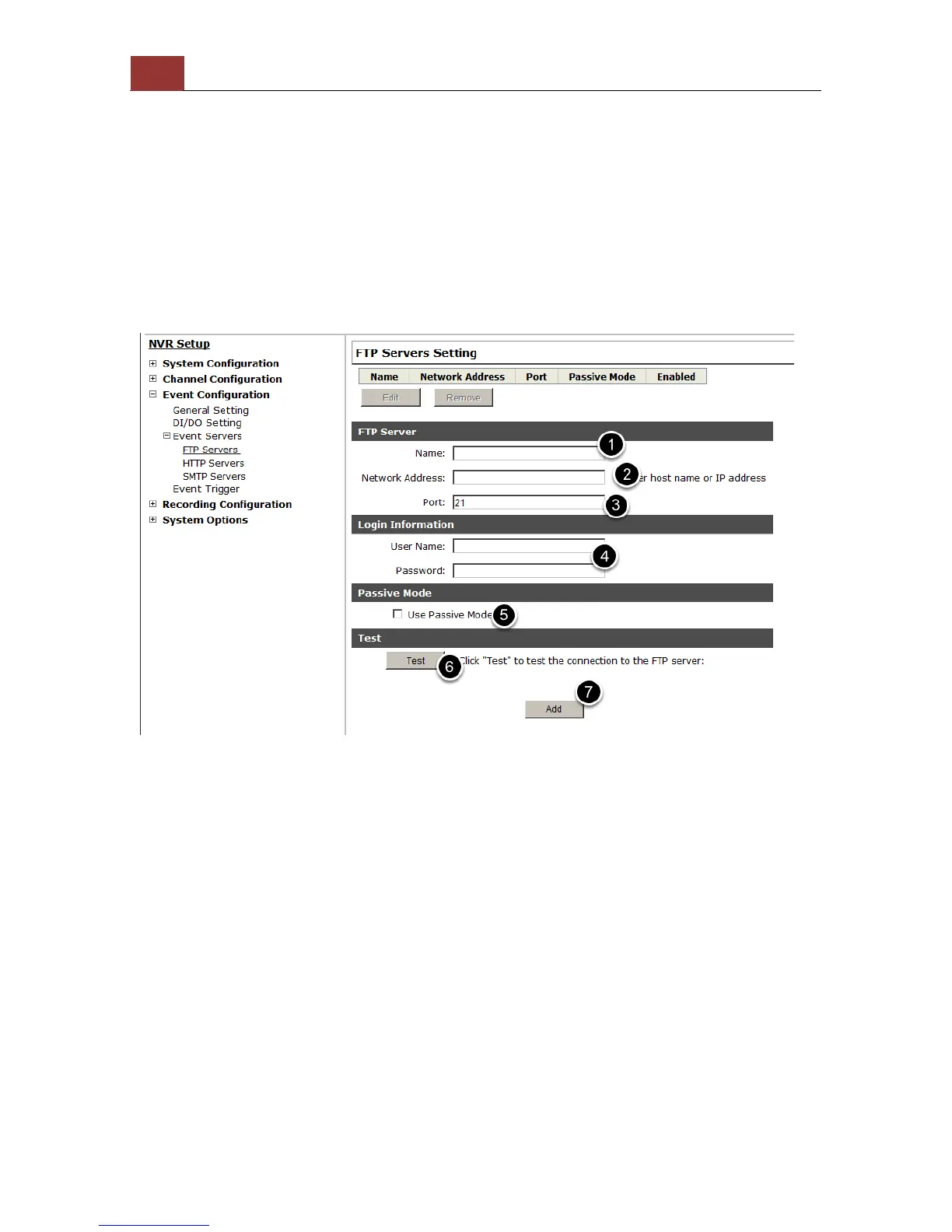

Configuring an FTP server
To add an FTP server,
1. Start by giving a name to the server that you are adding to the
recorder
2. Enter the hostname or the IP address of the FTP server
3. Enter the communication port of the FTP server (usually port 21)
4. Enter the username and password of the FTP server if it’s required
5. Check “Use Passive Mode” if it’s required or leave it unchecked to
use active mode
6. Click “Test” to verify if all information is entered correctly and the
connection to the FTP server can be established successfully
7. Click “Add” for the settings to take effect
