Chapter 2 Hardware Installation Page 7
Hardware Installation
Connect up

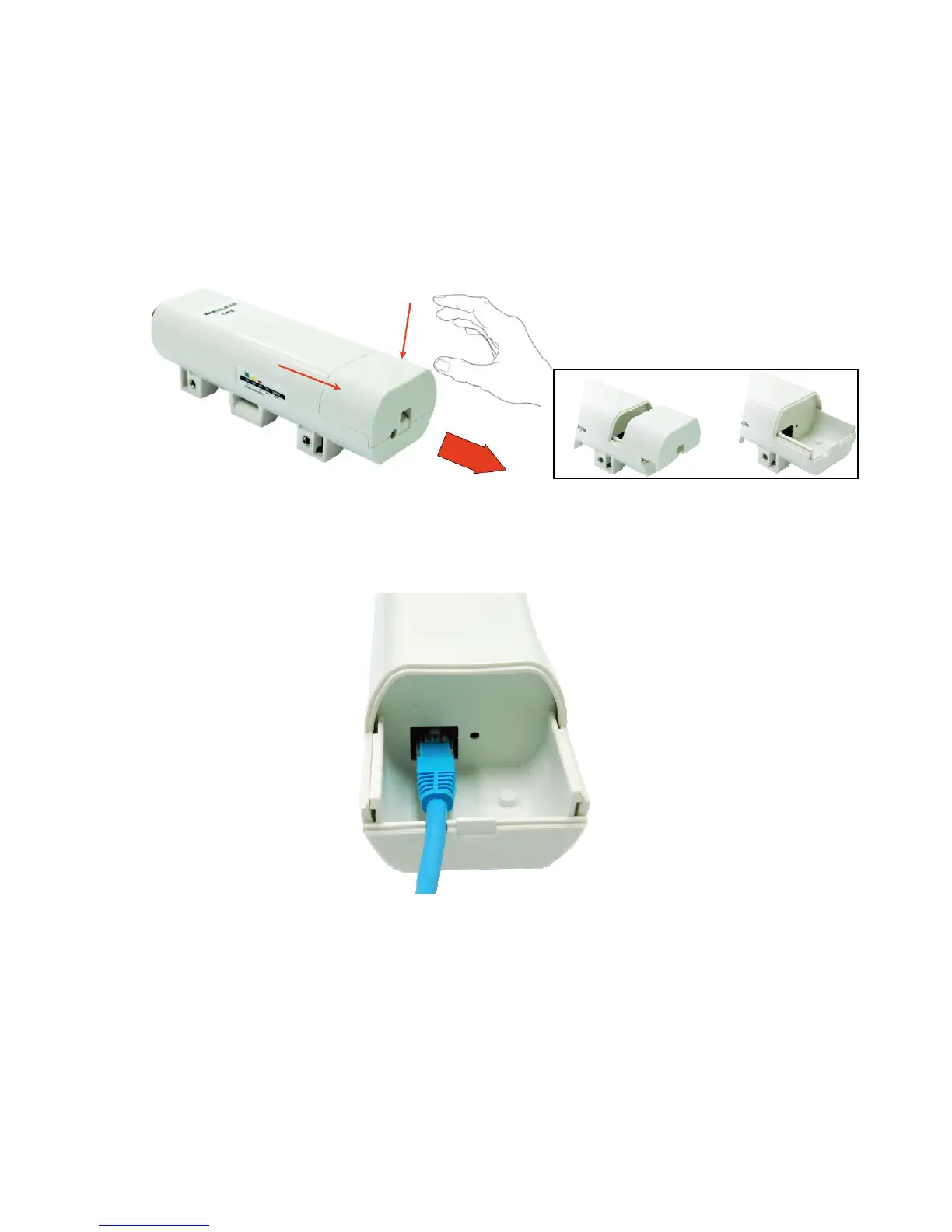

1. The bottom of the LEVELONE 150MBPS WIRELESS POE AP is a movable cover. Grab the
cover and pull it back harder to take it out as the figure shown below.
Figure 3 Move the Cover
2. Plug a standard Ethernet cable into the RJ45 port.
Figure 4 Cable Connection
