Chapter 2 Hardware Installation Page 9
5. Plug the other side of the Ethernet cable as shown in Step 3 into the PoE port of the PoE injector
and get the complete set ready.

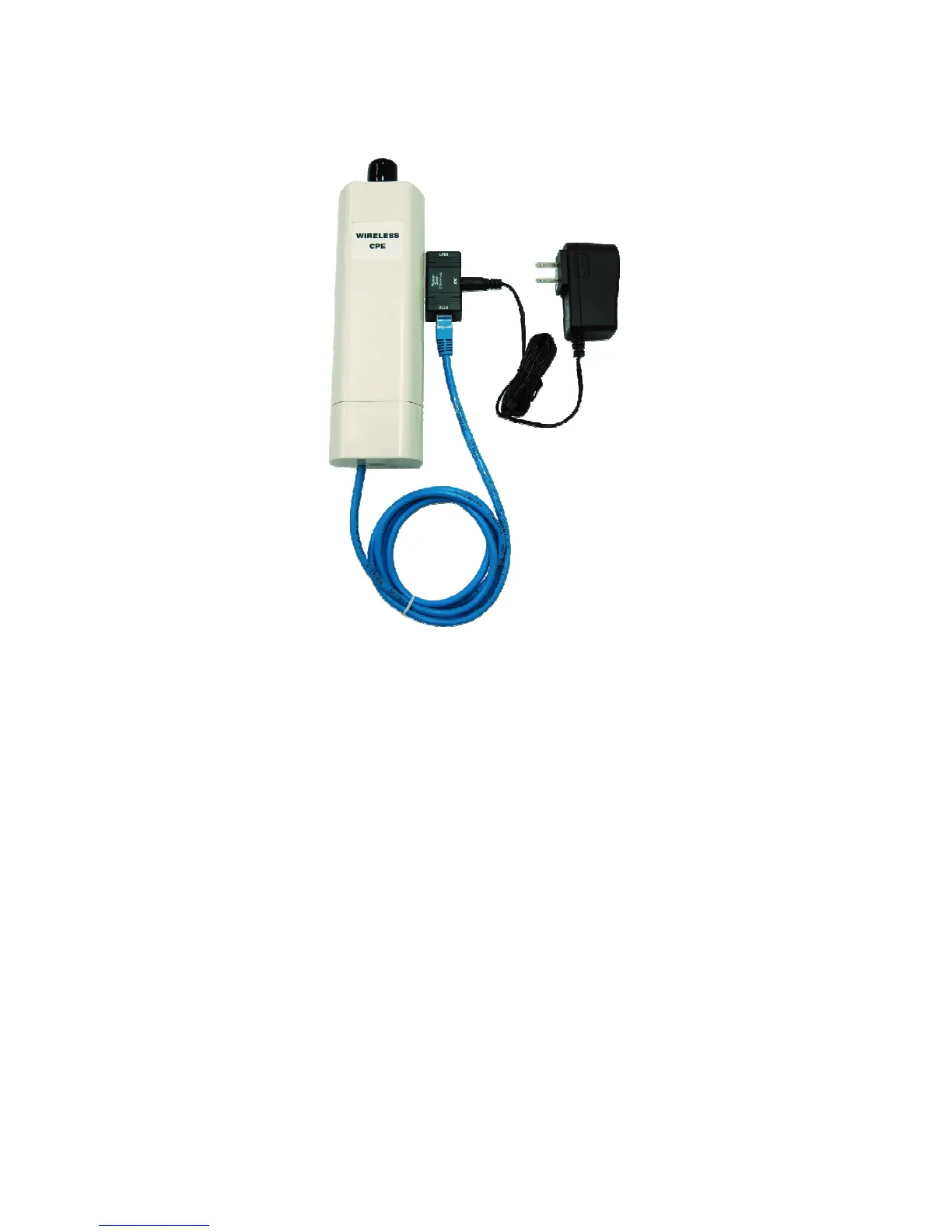

Figure 7 Complete Set
