User Manual for BPS-200
www.levitronix.com
PL-4012-00, Rev07, DCO# 20-144
10
Cable
Jacket
Cable OD
Motor Sensor
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
8.50 mm
7x Cable OD
15 x Cable OD
PVC
9.50 mm
5x Cable OD
11 x Cable OD
Table 6: Specifications for min. bending radius of motor and adaptor cables for BSM-1
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!

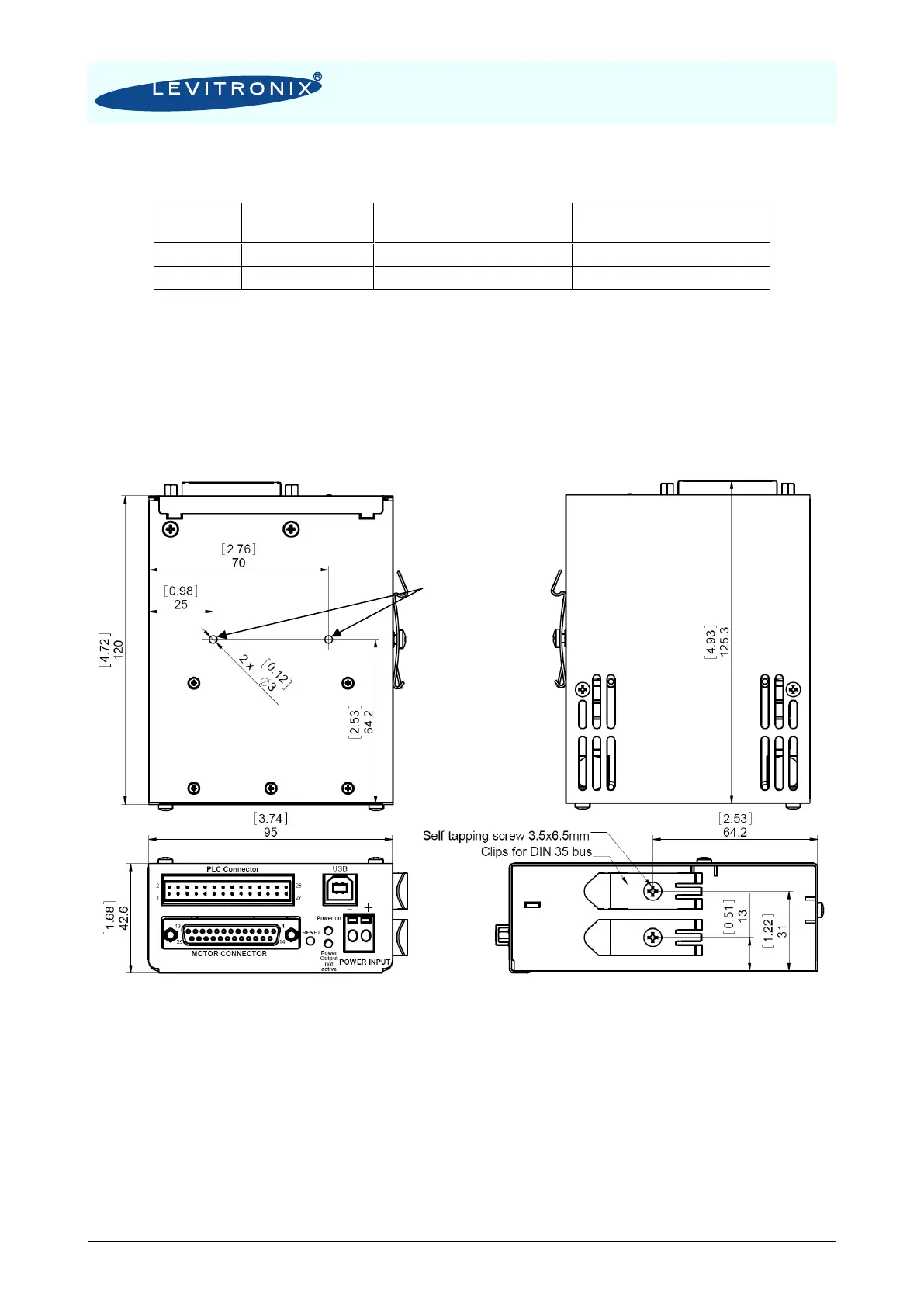

Figure 9: Basic dimensions (in mm) of controller LPC-200.2
(Same basic dimensions for LPC-200.1)
Alternative for
mounting DIN
rail clips
