4 Installation
4.1 Electrical Installation of Controller
4.1.1 Overview
The LPC-200 controllers have signal processor controlled power converters with switched inverters for the
drive and the bearing windings of the motor. The signal processor allows precise control of pump speed and
impeller position. Figure 20 shows the interfaces of the standalone controller LPC-200.1 with stand-alone
and minimal PLC functions and Figure 21 the interfaces of the LPC-200.2 controller with extended PLC
functions and USB interface for communication.

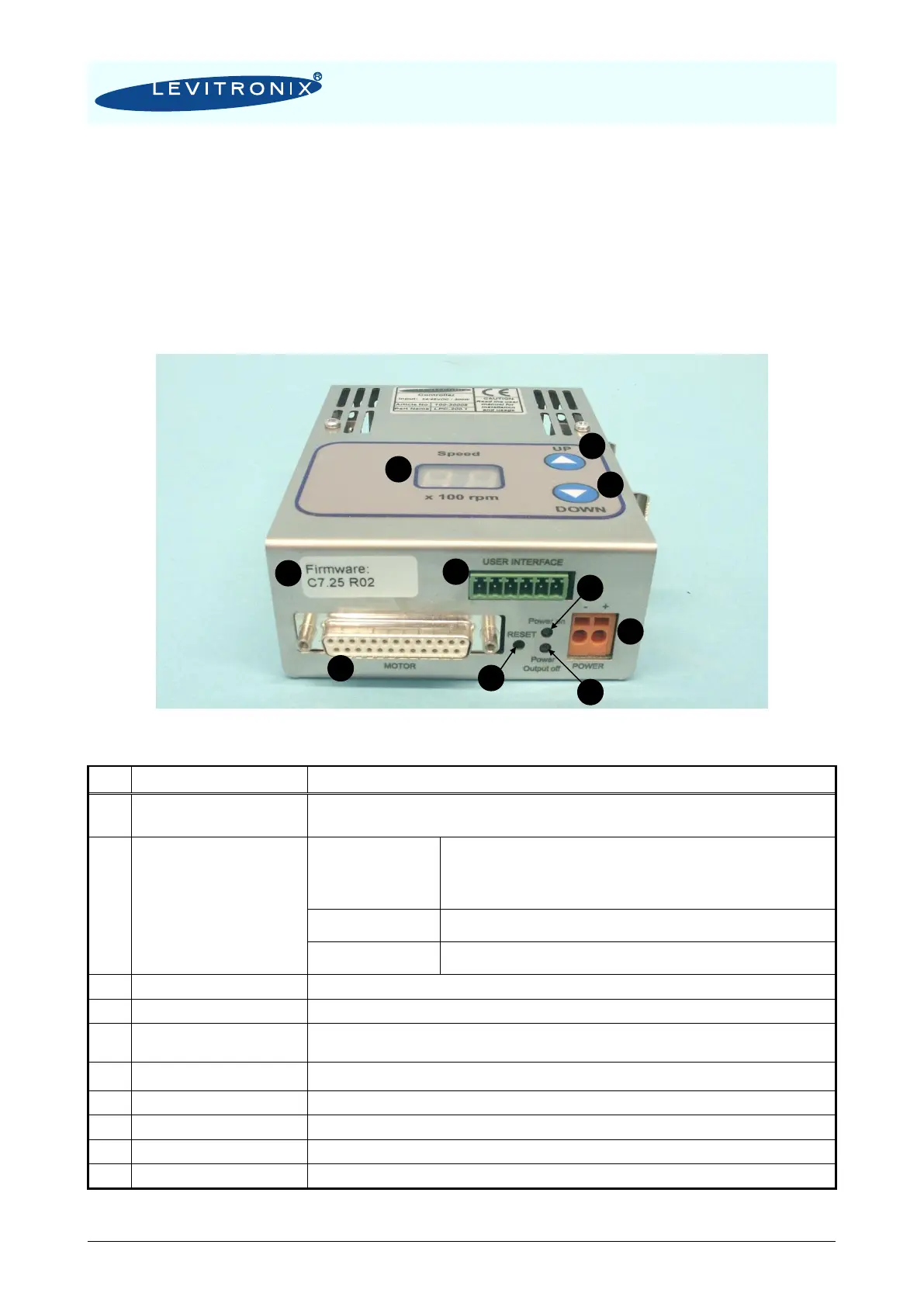

Figure 20: Overview of the controller LPC-200.1 for standalone operation
- Position, field and temperature sensor signals from motor
- Drive and bearing currents of the motor
Torque spec. for tightening of connector screws: Min. = 0.4 Nm, Max. = 0.6 Nm
- Galvanic isolation with optocoupler
- Lowest input voltage for high level detection: min. 5 V
Typical 24 V / 16 mA, maximal 30 V / 20 mA
- Highest input voltage for low level detection: max. 0.8 V
- Minimum input resistance: R
IN
= 2.2 k
- Galvanic isolation with relay
- Relay: 1A / 30VDC, 0.3A / 125 VAC
- Analog current input: 4 – 20 mA
- 450 Ohm shunt input
DC power input -> 24 - 48 V
LED is on if supply voltage of signal electronics is present.
“Power Output off”
Red LED
Red LED is off if the switched output stage of the controller is enabled. If the LED is on, the bearing and
drive coils of the motor carry no current.
Reset button of the controller stage. The button is sunk mounted and can be activated for example with a
small screw driver.
Rotational speed display in 100rpm
Button for speed increasing and enabling of levitation
Button for speed decreasing and disabling of levitation
Firmware version and revision number
Table 8: Description of interfaces of LPC-200.1 controller
