User Manual for BPS-200
www.levitronix.com
PL-4012-00, Rev07, DCO# 20-144
24
4.5 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCA-1.x shall be used ed (see Table 3 for
adaptor cables). For the cables which use an M23 threaded metallic Hummel connector type, check the
connection according to the following pictures:

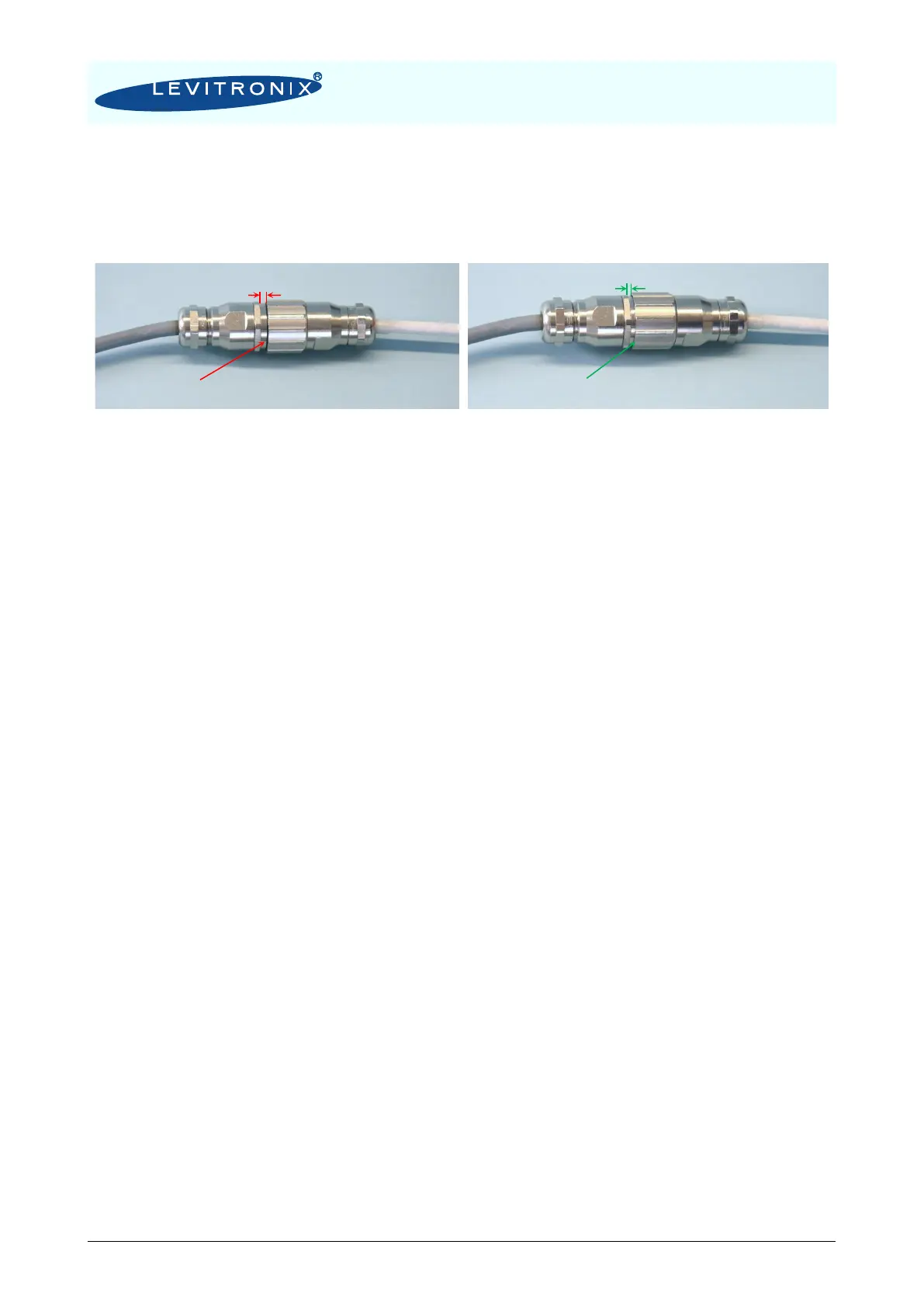

Figure 28: Wrong and correct Hummel connector type assembly
O-Ring visible
Wrong Connection!
O-Ring not visible
Correct Connection!
Gap > 2 mm
Sensor Cable
of Motor
Gap  2 mm
Sensor
Adaptor Cable
