2.2.3 ATEX / IECEx System Configuration
Together with the standard pump-head and controllers an ATEX / IECEx certified motor allows installation of
motor and pump-head within an Ex classified area (see Figure 5). The ATEX / IECEx motor (Pos. 2c in Table
2) comes delivered with special connectors and according extension cables (see Table 3). One option to
lead the cables outside of the Ex area is an Ex certified cable sealing system as listed in Table 4 (see Pos.
8).
Pump Head
Fluid In
Fluid Out
Motor Power Cable
Adaptor/Extension Cable
Power Supply
24-48 VDC / 200 W
All
Controller
Types
Ex conform cable sealing system
Cabinet Boundary for
Ex Classified Area
Ex Classified Location
Chemical Resistance and IP-67 Space
Motor
(ATEX/IECEx)

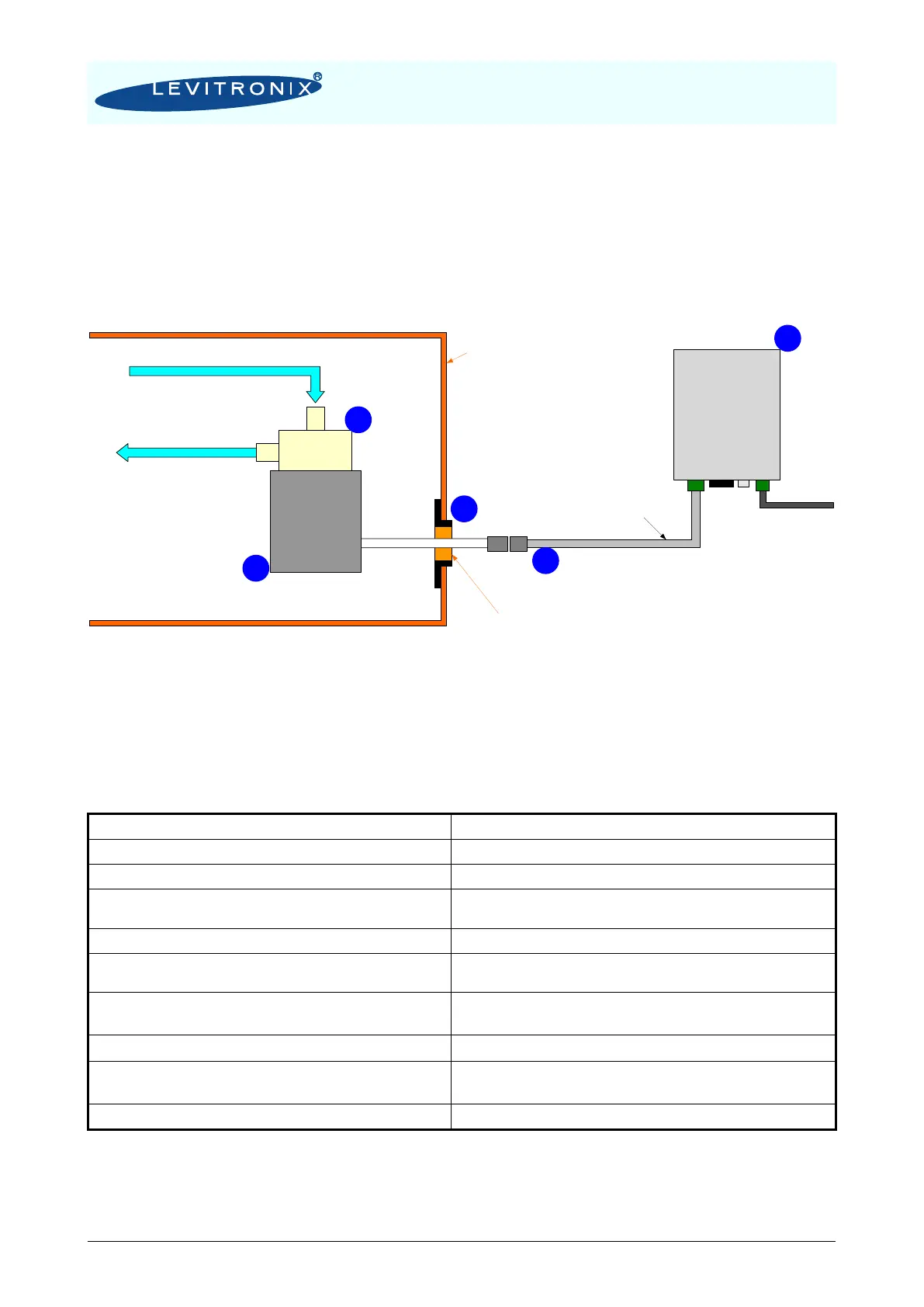

Figure 5: System configuration for ATEX / IECEx applications
2.3 General Environmental Conditions
Usage
Indoor
1
Altitude
Up to 2000 m
Operating ambient temperature
0 to 40
0
C
Storage ambient temperature
(Extremes for Transportation)
-20 to 80
0
C
Operating humidity range (relative humidity)
15 – 95% (non-condensing)
Storage humidity range (relative humidity)
(Extremes for Transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30
0
C
Relative humidity: 50% (non-condensing)
DC supply fluctuations
 10% of nominal voltage
Transient over-voltages typically present on
the mains supply
Surge immunity according to EN 61000-4-5
(tested together with certified AC/DC power supply)
Pollution degree
2
Table 5: Environmental conditions for pump system
Note 1: Contact Levitronix
®
technical department (see Section 8) for outdoor usage.
1
2c
4
3b
8
