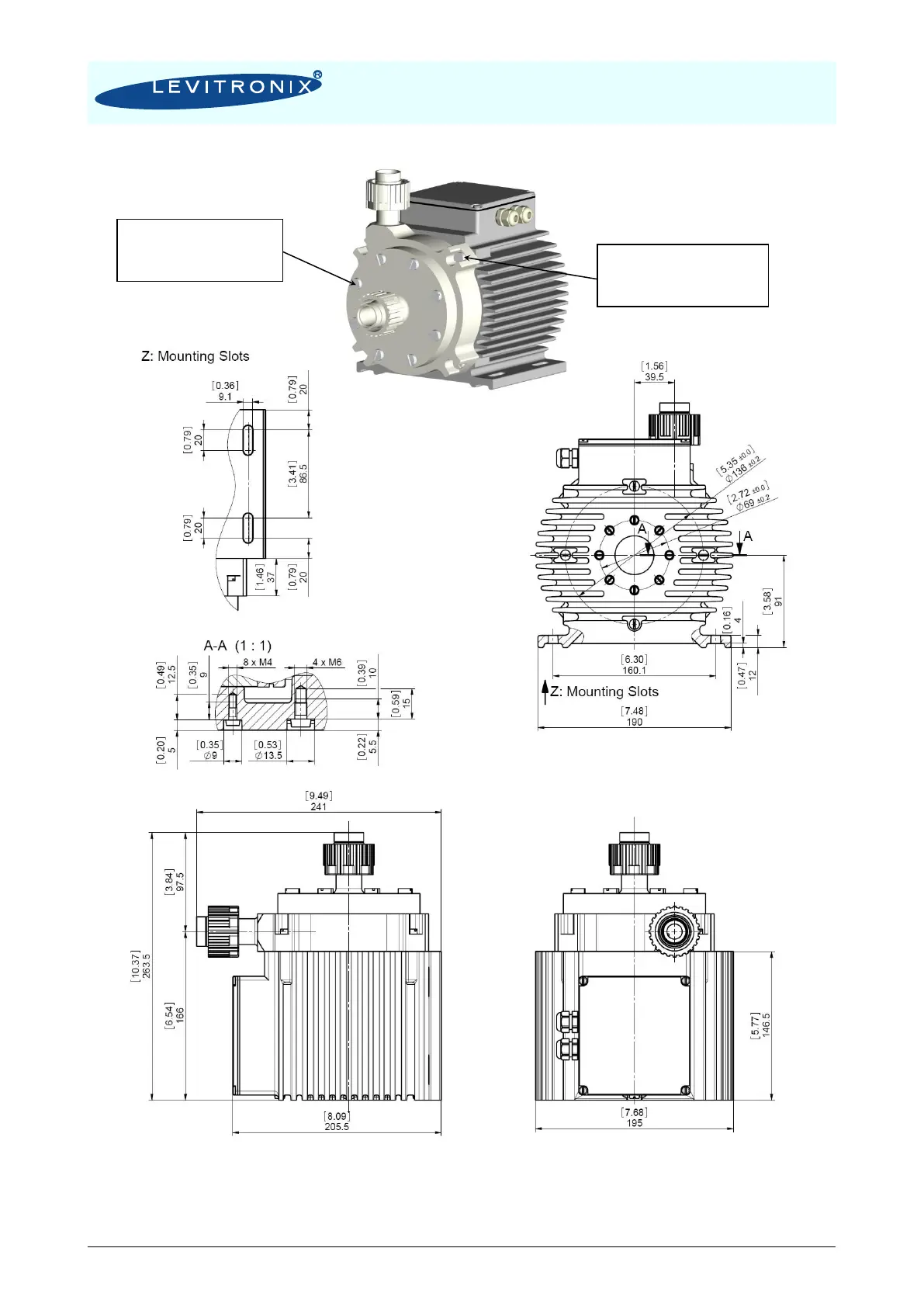

Figure 12: Basic dimensions (in mm and [inch]) of LPM-2000 motor
with LPP-2000.7 pump head (High-Pressure)
Inlet/Outlet Fitting:

Spec. Pump Head Screws:
Dimensions: 8x M8x40
Material: SS PTFE Coated
Torque Spec.: 60 Ncm
Spec. Pump Motor Screws:
Dimensions: 4x M8x30
Material: SS PTFE Coated
Torque Spec.: 60 Ncm
