2.7 Basic Dimensions of Main Components

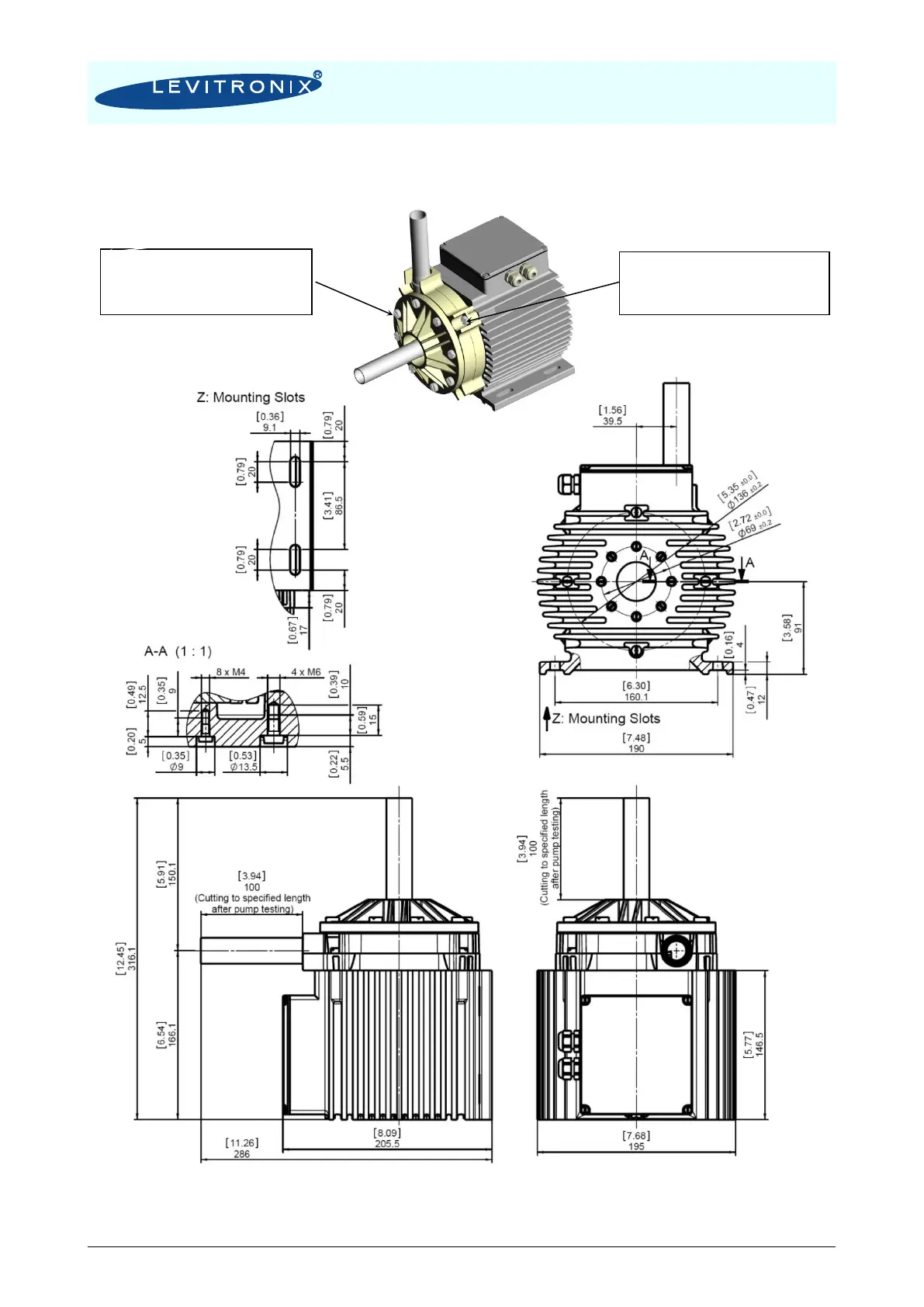

Figure 11: Basic dimensions (in mm and [inch]) of LPM-2000 motor
with LPP-2000.6 pump head (High-Flow)
Inlet/Outlet Fitting:

Spec. Pump Head Screws:
Dimensions: 8x M8x40
Material: Stainless Steel PTFE Coated
Torque Spec.: 60 Ncm
Spec. Pump Motor Screws:
Dimensions: 4x M8x30
Material: Stainless Steel PTFE Coated
Torque Spec.: 60 Ncm
