2.4 Pressure-Flow Curves

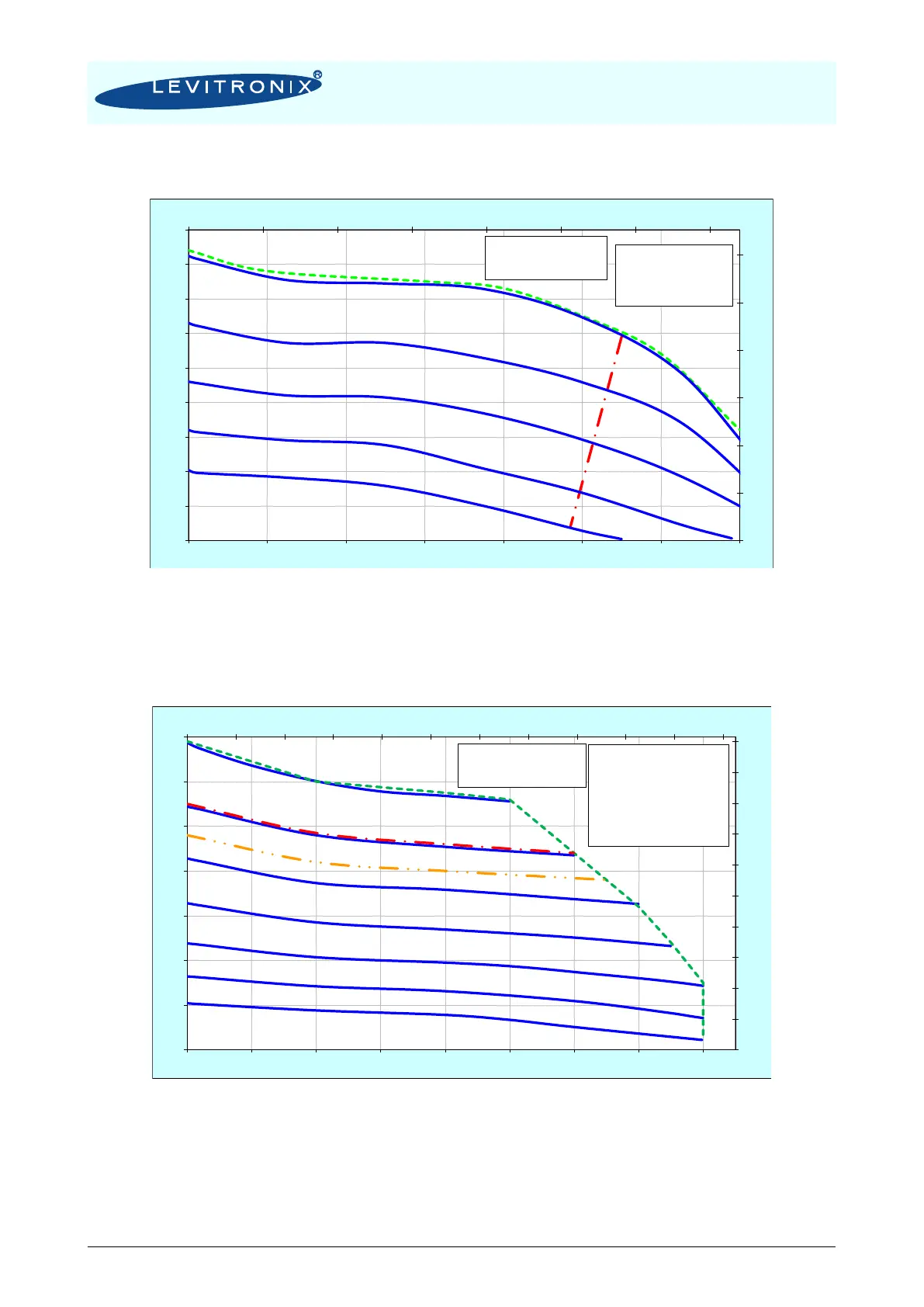

Figure 6: Pressure/flow curves for “High Flow” pump head for aqueous solutions
(Measured with pump-head LPP-2000.6)
The linearly increasing cavitation effects for the “High Flow” system for flows > 100 lpm and liquid
temperature range of 40 – 90
0
C was measured for water. This can be different for other liquids and depends
on the hydraulic circuit design. For example: higher inlet pressure reduces cavitation effects.
Figure 7: Pressure/flow curves for “High Pressure” pump head for aqueous solutions
(Measured with pump-head LPP-2000.7)
The linearly increasing cavitation effects between 75-85 °C for the “High Pressure” system have been
measured for water. This can be different for other liquids and depends on the hydraulic circuit design. For
example: higher inlet pressure reduces cavitation effects. For maximum static pressure limitation on
performance at temperatures > 70 °C consult specification under Figure 10.
0
10
20
30
40
50
60
0 5 10 15 20 25 30 35
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
0 20 40 60 80 100 120 140
[psi]
[gpm]
[bar]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40 C
Standard Limit:
Speed Limit = 8000 rpm
Limits for 90 C Liquid:
0
10
20
30
40
50
60
70
80
90
100
0 2 4 6 8 10 12 14 16 18 20 22
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0 10 20 30 40 50 60 70 80
[psi]
[gpm]
[bar]
[lpm]
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40 C
Standard Limits up to 75C:
Speed Limit = 10000 rpm
Drive Current Limit: 11Arms
Limits for > 75 C Liquid:
(Cavitation and axial in-stability)
Limits for > 85 C Liquid
(Cavitation and axial in-stability)
