Levitronix BPS-2000.2 User Manual

User Manual for BPS-2000
www.levitronix.com
PL-4021-00, Rev02, DCO# 15-235
7
2.2.3 ATEX / IECEx System Configuration
Together with the standard pump head and controllers an ATEX / IECEx certified motor allows installation of
motor and pump head within an Ex classified area (see Figure 5). The ATEX / IECEx motor (Pos. 2b in in
Table 2) comes delivered with special connectors and according extension cables (Pos. 5a and 5b in Table
3). One option to lead the cables outside of the classified area is an Ex certified cable sealing system as
listed in Table 4 (see Pos. 8) and shown in Figure 2.

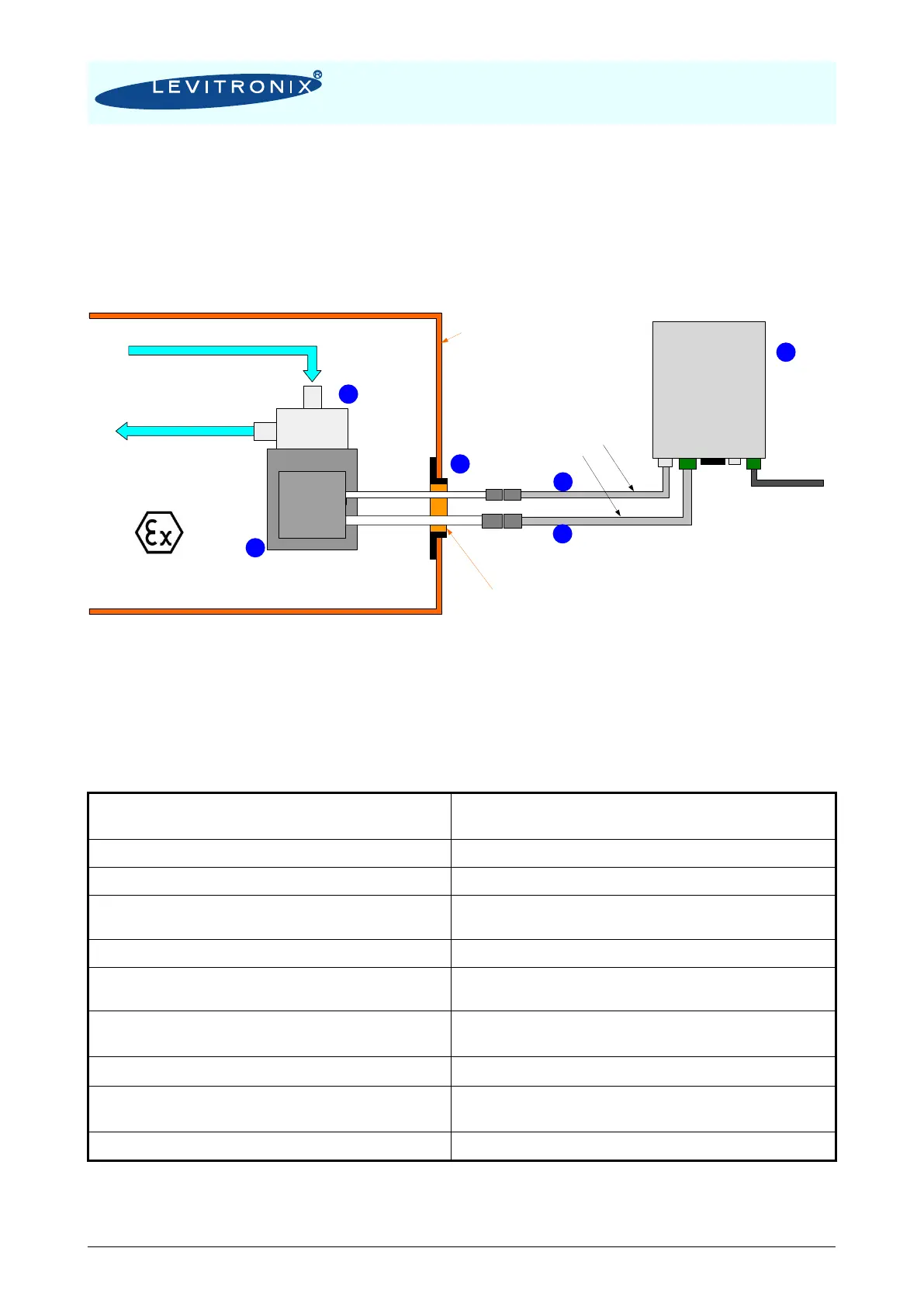

Figure 5: System configuration for ATEX / IECEx applications
2.3 General Environmental Conditions
Usage
Indoor
(motor with pump head can be placed outdoor)
Altitude
Up to 2000 m
Operating ambient temperature
0 to 40 °C
Storage ambient temperature
(Extremes for Transportation)
-20 to 80 °C
Operating humidity range (relative humidity)
15 – 95% (non-condensing)
Storage humidity range (relative humidity)
(Extremes for Transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30 °C
Relative humidity: 50% (non-condensing)
AC supply fluctuations
 10% of nominal voltage
Transient over-voltages typically present on
the mains supply
Surge immunity according to EN 61000-4-5
Pollution degree
2
Table 5: Environmental conditions for pump system
Pump Head
Motor
(ATEX/IECEx)
Fluid In
Fluid Out
Motor Sensor Cable
Motor Power Cable
Adaptor/Extension
Cable for Sensors
Adaptor/Extension
Cable for Power
3 x AC 200-240V or
1 x AC 200-240V
All
Controller
Types
Ex conform cable sealing system
Cabinet Boundary for
Ex classified Area
Ex Classified Location
Chemical Resistance and IP-67 Space
1
2b
9
5a
5b
3
