Levitronix BPS-2000.2 User Manual

User Manual for BPS-2000
www.levitronix.com
PL-4021-00, Rev03, DCO# 15-235
32

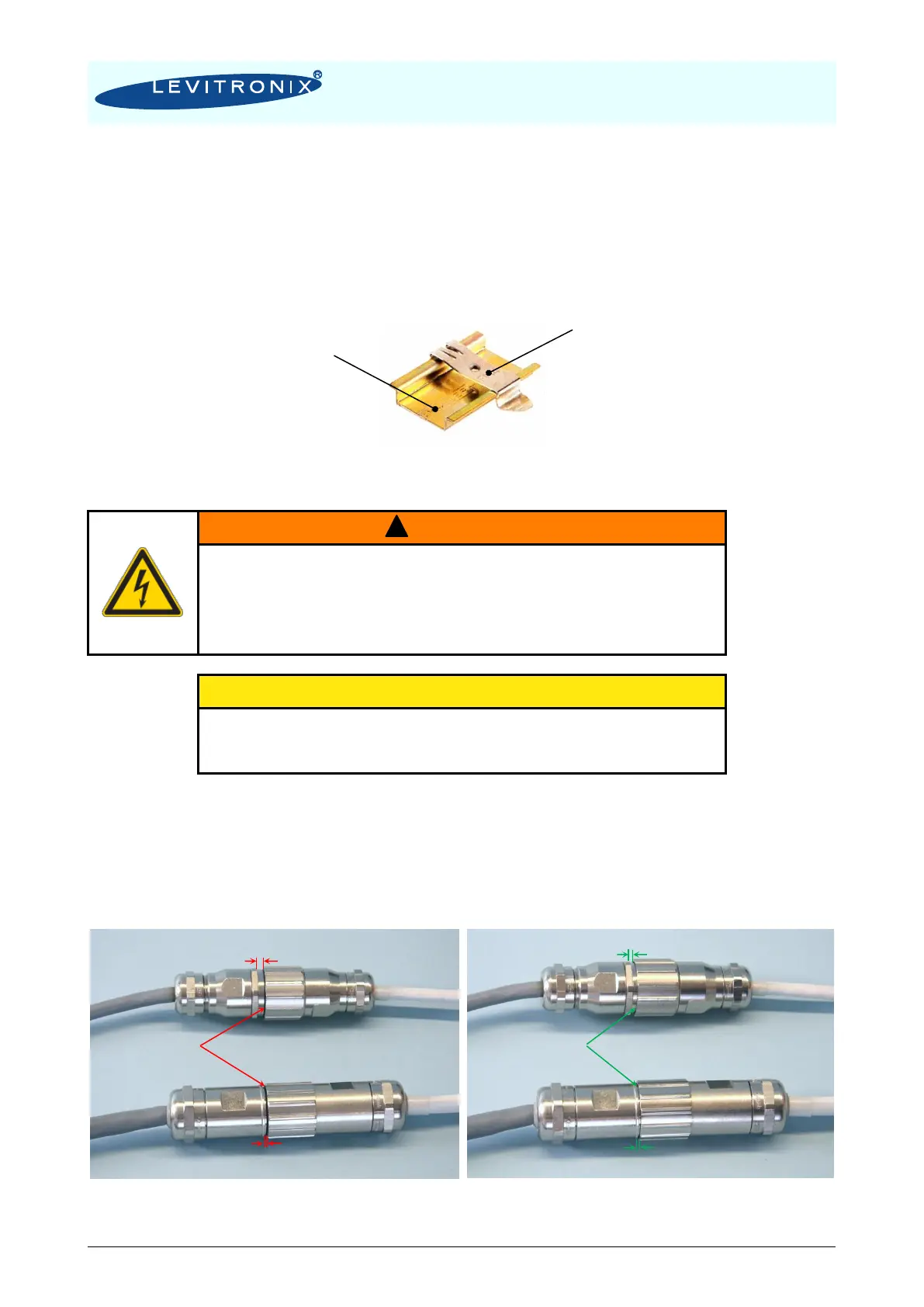

4.3 Mechanical Installation of the Controller
 The controller can be mounted with the 2 DIN rail brackets on the housing (see Figure 14)
 If no forced air-cooling is used, mount the controller in upright position and assure that the
heat of the controller can dissipate. Avoid mounting the controller in a cabinet where heat is
stagnated and accumulated.
Figure 35: Din-rail bracket for mounting of the LPC-2000 controller
!
WARNING
Hazardous voltage may be present.
In order to avoiding fluid spills shorting mains or other voltages within the
controller, place the controller in a spill protected electronic cabinet.
If explosive flammable gases are present, place the controller in an
explosion-proof cabinet.
CAUTION
Do not under any circumstances open the controller. Levitronix
®
does not
assume responsibility for any damage, which occurs under such
circumstances.
4.4 Mechanical Installation of Adaptor/Extension Cables
For connecting the motor to the controller the adaptor cables MCAP-2000.x (for power cable) and MCAS-
600.x (for sensor cable) shall be used (see Table 3 for adaptor cables). For the cables which use an M23
threaded metallic Hummel connector type, check the connection according to the following pictures:
Figure 36: Wrong and correct Hummel connector type assembly
Bracket
Rail
O-Ring visible
Wrong Connection!
O-Ring not visible
Correct Connection!
Gap > 2 mm
Sensor Cable
of Motor
Power Cable
of Motor
Gap > 1 mm
Gap  1 mm
Gap  2 mm
Sensor
Adaptor Cable
Power
Adaptor Cable
