Levitronix BPS-4000 User Manual

User Manual for BPS-4000
www.levitronix.com
PL-4016-00, Rev11, DCO# 18-057
11
Cable
Jacket
Cable OD
Motor Sensor
Cable OD
Motor Power
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
6.6 mm
10.4 mm
7x Cable OD
15 x Cable OD
PVC
7.2 mm
12.3 mm
6x Cable OD
12 x Cable OD
Table 6: Specifications for min. bending radius of motor and adaptor cables
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!

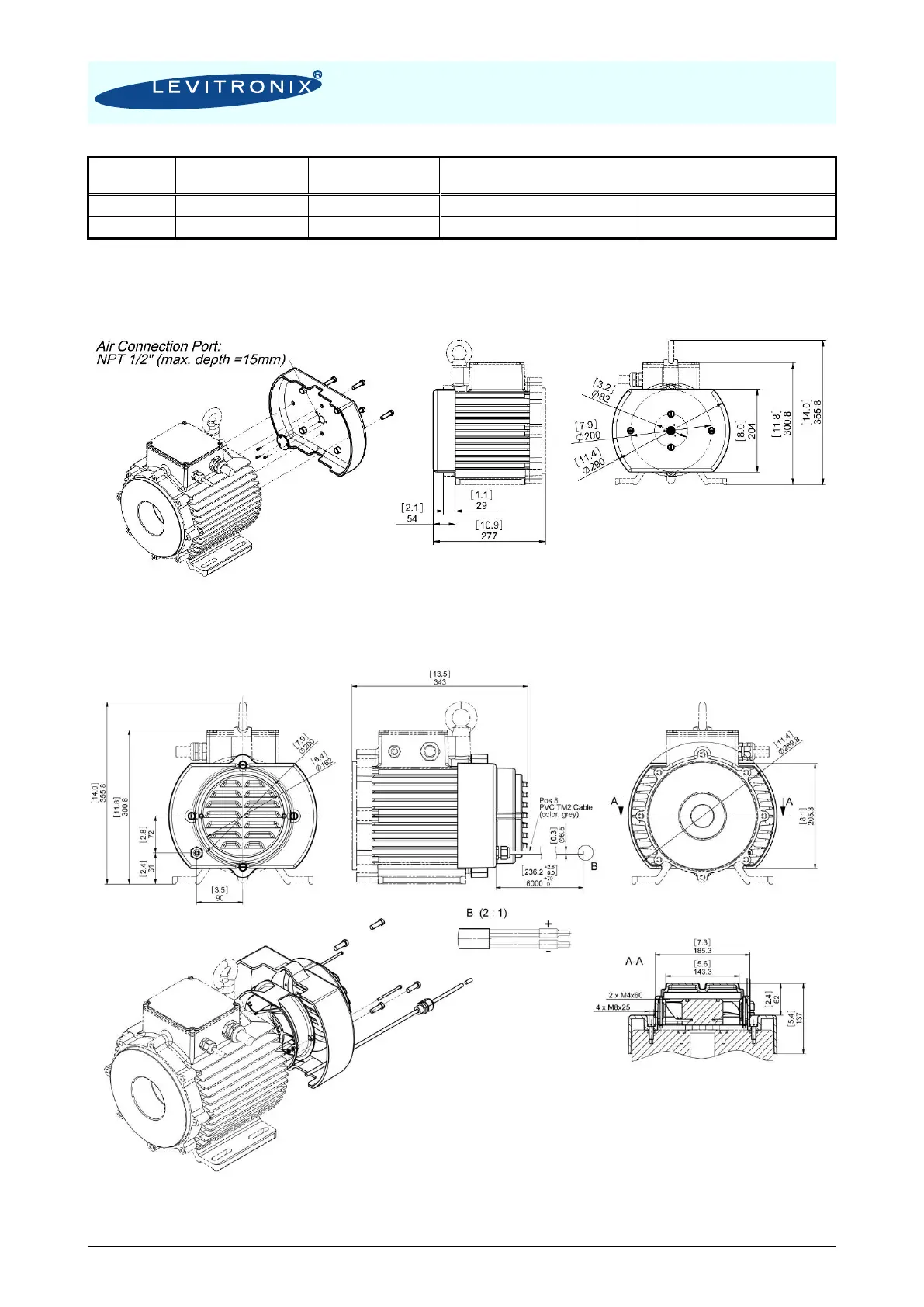

Figure 11: Basic dimensions (in mm and [inch]) LPM-4000 motor
with ACM-4000.1 & 3 Air Cooling Module
Figure 12: Basic dimensions (in mm and [inch]) LPM-4000 motor
with FCM-4000.1 Fan Cooling Module
