2.5 Maximum Static Pressure of Pump Heads

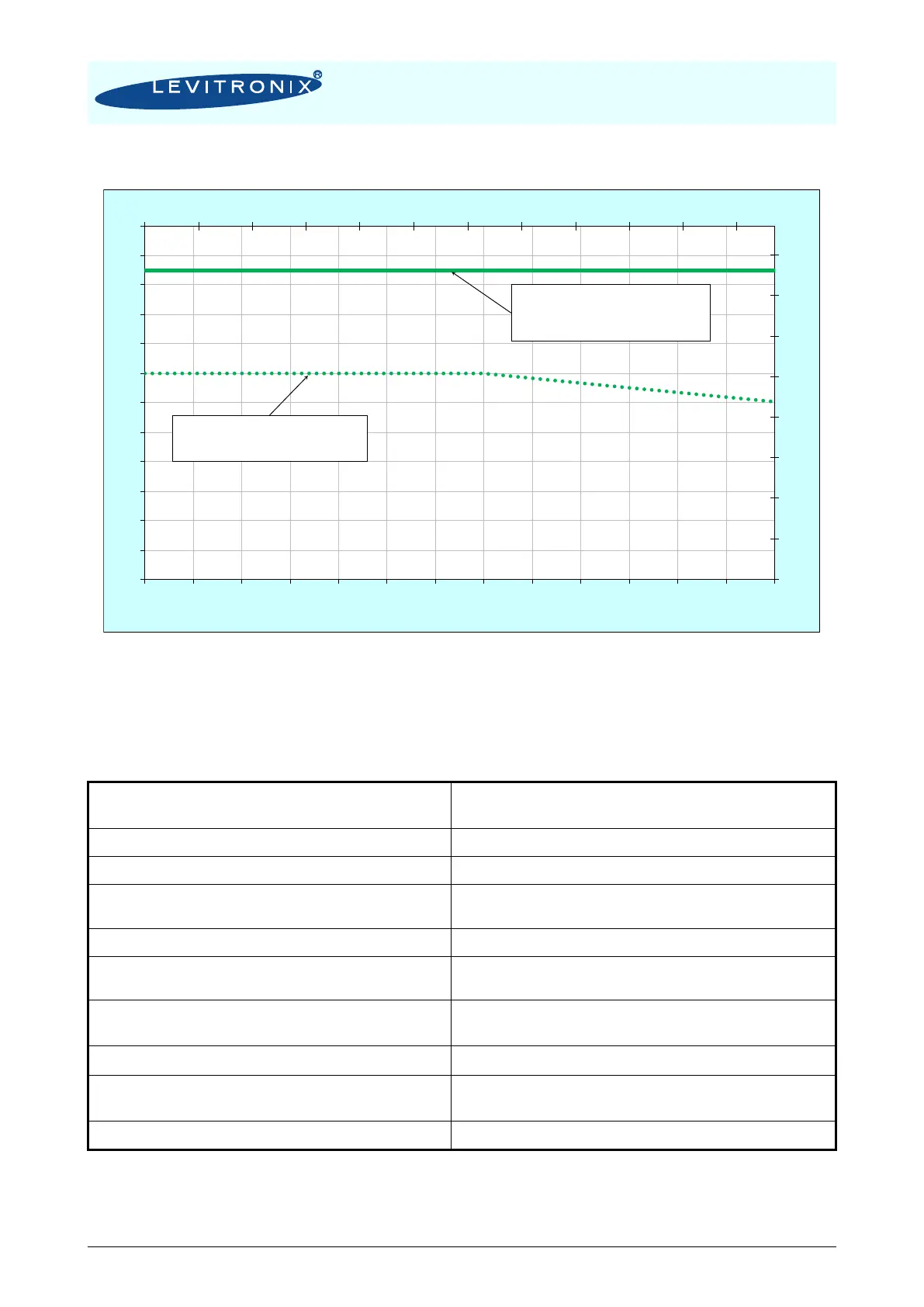

Figure 9: Max. pressure specifications of LPP-4000 pump heads
2.6 General Environmental Conditions
Usage
Indoor
(motor with pump head can be placed outdoor)
Altitude
Up to 2000 m
Operating ambient temperature
0 to 40 °C
Storage ambient temperature
(Extremes for Transportation)
-20 to 80 °C
Operating humidity range (relative humidity)
15 – 95% (non-condensing)
Storage humidity range (relative humidity)
(Extremes for Transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30 °C
Relative humidity: 50% (non-condensing)
AC supply fluctuations
 10% of nominal voltage
Transient over-voltages typically present on
the mains supply
Surge immunity according to EN 61000-4-5
Pollution degree
2
Table 5: Environmental conditions for pump system
0
20
40
60
80
100
120
140
160
77 87 97 107 117 127 137 147 157 167 177 187
0
1
2
3
4
5
6
7
8
9
10
11
12
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
LPP-4000.6/8 Pump Heads (Pillar):
Based on LPP-4000.5 (flange fitting) including
limitations by fitting specifications from Pillar.
LPP-4000.5/7 Pump Heads (Flange):
Based on max. static pressure testing and
dynamic pressure testing with safety factor. Max.
pressure testing done at 20 bar and 90C liquid
temperature without leakage and deformation.
