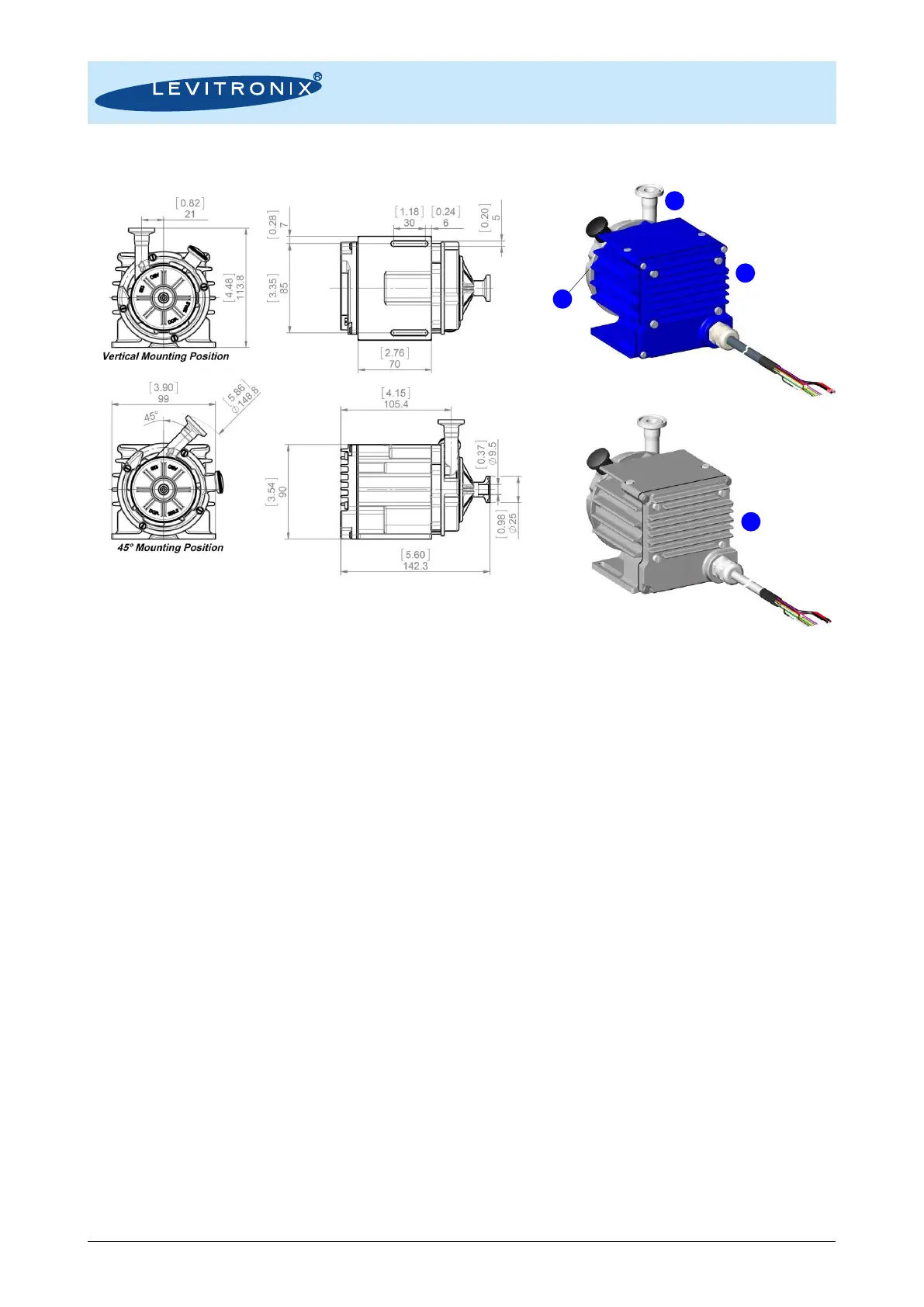

Figure 15: Basic dimensions (in [mm] and [inch]) of OEM model
(For dimensions with DCP-200.3 and DCP-200.3-SF1 pump head refer to relevant document.)
2a
Pump Head
DCP-200.2
Driver IPD-100.1
(Epoxy Coating)
Driver Cable
(PVC with Open Wires)
Pump Head Socket
PHS-i100.1
Note: Pump head socket can be mounted
and rotated in steps of 45° to change pump
outlet orientation.

Clamp OD = 25mm for Mini-

Standard: ASME BPE 2009
1a
2a
Driver IPD-100.10
ATEX/IECEx
(ETFE Coating)
Driver Cable
(FEP with Open Wires)
3
