2.6 Basic Dimensions of Main Components

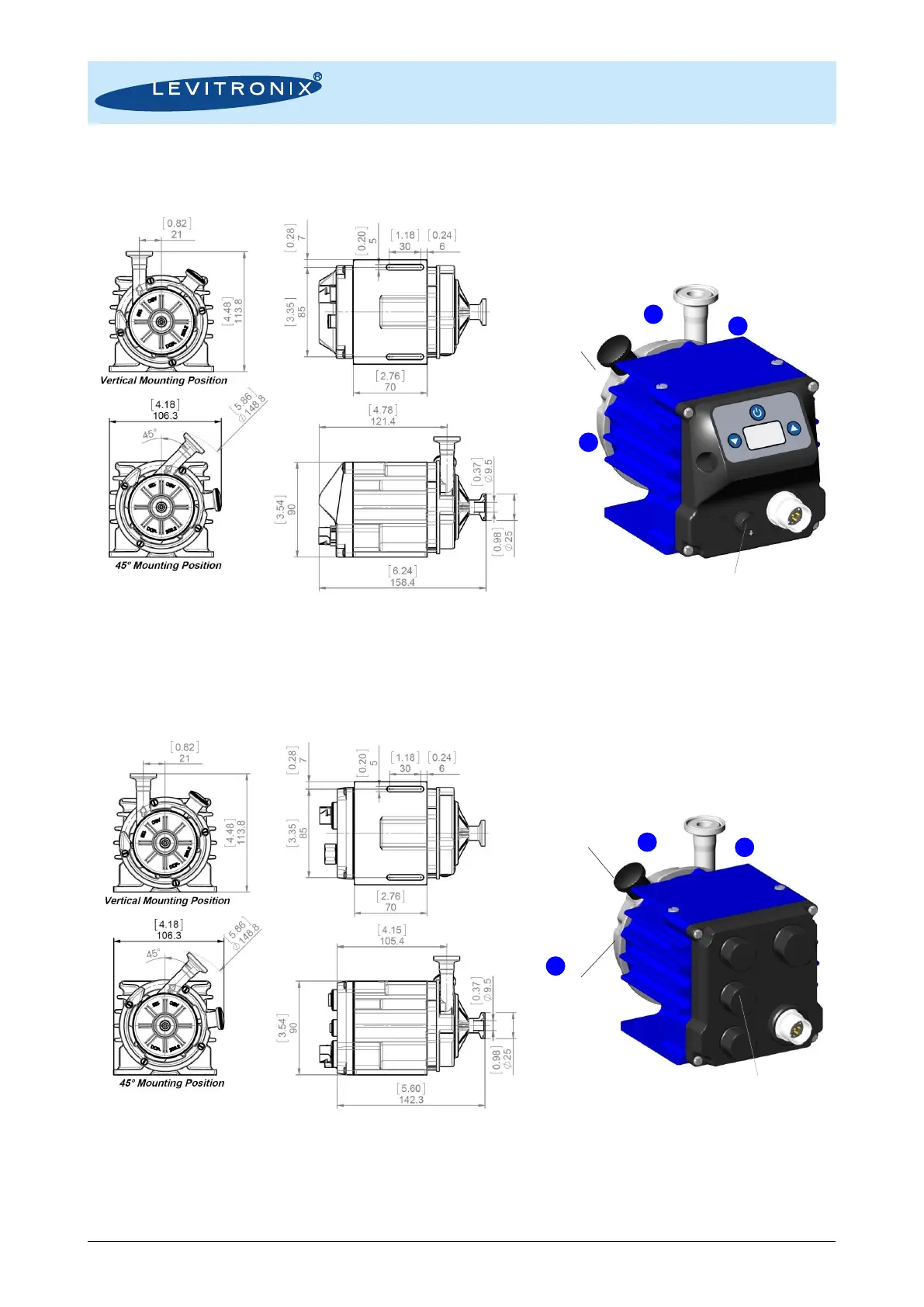

Figure 13: Basic dimensions (in [mm] and [inch]) of Stand-Alone model
(For dimensions with DCP-200.3 and DCP-200.3-SF1 pump head refer to relevant document.)
Figure 14: Basic dimensions (in [mm] and [inch]) of EasyConnect model
(For dimensions with DCP-200.3 and DCP-200.3-SF1 pump head refer to relevant document.)
2c
Single-Use
Pump Head
DCP-200.2
Driver IPD-100.6
Protective Cover for PLC
Connector
(Included in driver Package).
3
Pump Head Socket
PHS-i100.1
Locking Pin
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
2b
Single-Use
Pump Head
DCP-200.2
Driver IPD-100.4
Protective Cover Nut for
PLC and Fieldbus Connectors
(Included in driver package).
3
Pump Head Socket
PHS-i100.1
Locking Pin
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.

Clamp OD = 25mm for Mini-

Standard: ASME BPE 2009
Triclamp
Clamp OD = 25mm for Mini-

Standard: ASME BPE 2009
1a
1a
