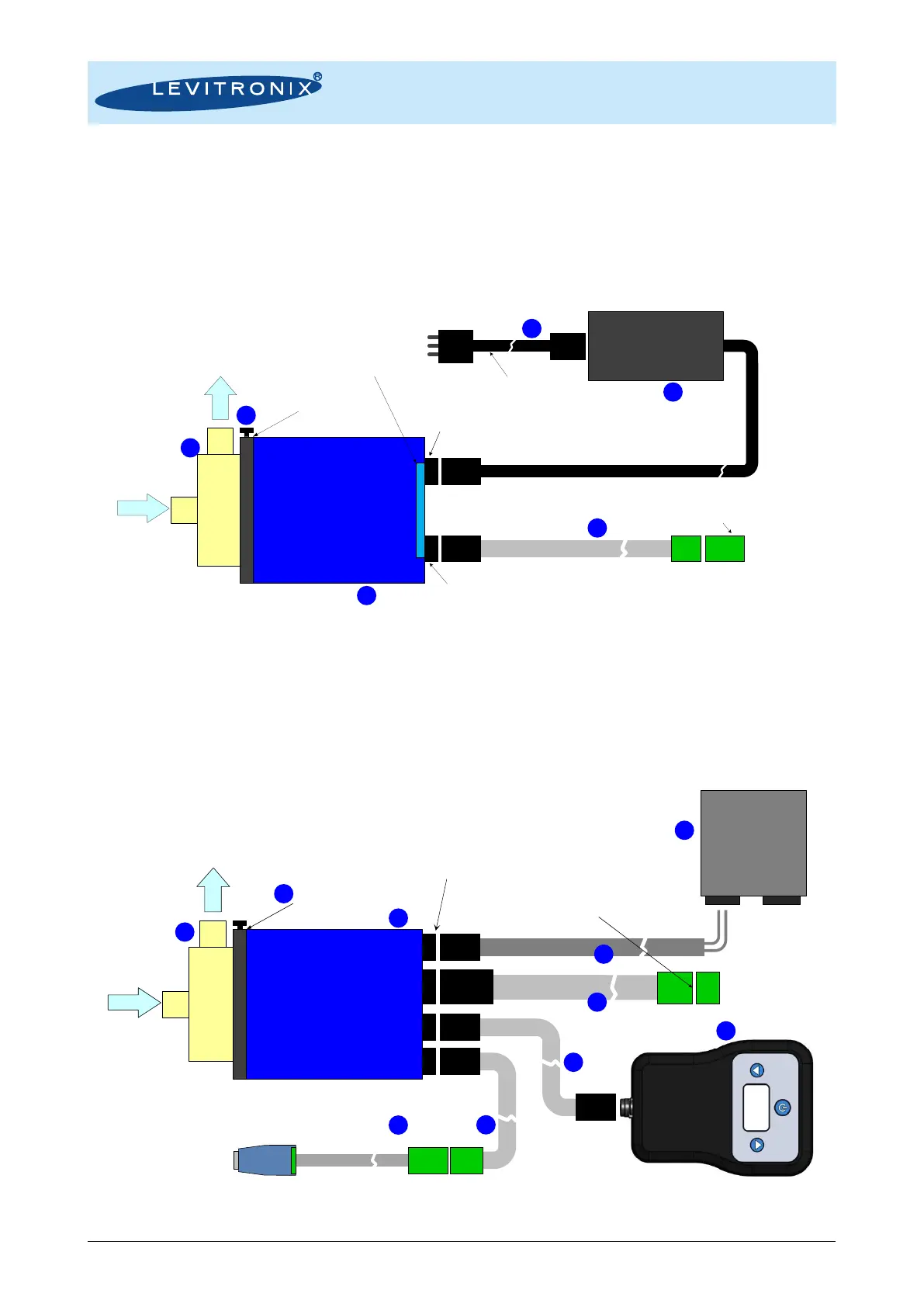

2.2 System Overview and General Specification
2.2.1 System Configuration for Stand-Alone Model
Figure 4 illustrates the system configuration of the Stand-Alone model with integrated user panel and buttons
to set the speed manually. The driver also contains a PLC interface for remote speed control by analog and
digital signals. Various accessories are available like a desktop power supply with relevant power cable and
signal cables to connect to the PLC.
Figure 4: Standard system configuration for Stand-Alone Model
2.2.2 System Configurations for EasyConnect Model
The EasyConnect model (see Figure 5 and Figure 6) with relevant cable accessories is designed to realize
various interface configurations with minimal setup effort. The PLC interface allows not only remote control by
analog/digital signals but also connections of external sensors hence enabling for example a precise flow or
pressure control.
Figure 5: Standard system configuration for EasyConnect model
Integrated Pump Driver
Stand-Alone Model
Power Supply
Connector
Single-Use
Pump Head
Outlet
Inlet
PLC Connector
Option for Remote
Control with PLC Signals
Back-Side Display with
3 Button User Interface
for Speed Setting and Reading
IPS Cable Signal
Screw type connector for open-wires
connection included in cable package
Bayonet Socket
with Locking Pin
Power Supply
Connector
Desktop
AC/DC
Power
Supply
AC Input
DC Output
AC Cable
(International Adaptors)
Integrated Pump Driver
EasyConnect Model
AC/DC
Power
Supply
(DIN-Rail)
AC InputDC Output
Power
Supply
PLC
Fieldbus
OUT
Fieldbus
IN
PC Connection:
- System configuration
- Firmware update
- Monitoring
IPS Cable Power
IPS Cable
Signal
Open Wires
Single
-Use
Pump Head
Outlet
Inlet
Bayonet Socket
with Locking Pin
PLC Interface:
- Remote control with speed signal
- Flowcontrol with external sensor
- Pressure control with ext. sensor
- 24VDC supply for sensors included
IPS Cable Signal
Screw type connector for
open-wires connection
included in cable package.
USB to RS485
Converter Cable
IPS Cable
Signal
User Panel
1
3
2c
4b
4c
7b
1
3
2b
4a
6
7b
5
7a
8
As an option the desktop power
supply can be attached as shown
-
10
