Levitronix PuraLev i100SU User Manual

User Manual for PuraLev
®
i100SU
www.levitronix.com
PL-4063-00, Rev03, DCO# 20-275
21
4.2 Electrical Installation of EasyConnect Model
4.2.1 Overview of Connections and Designations

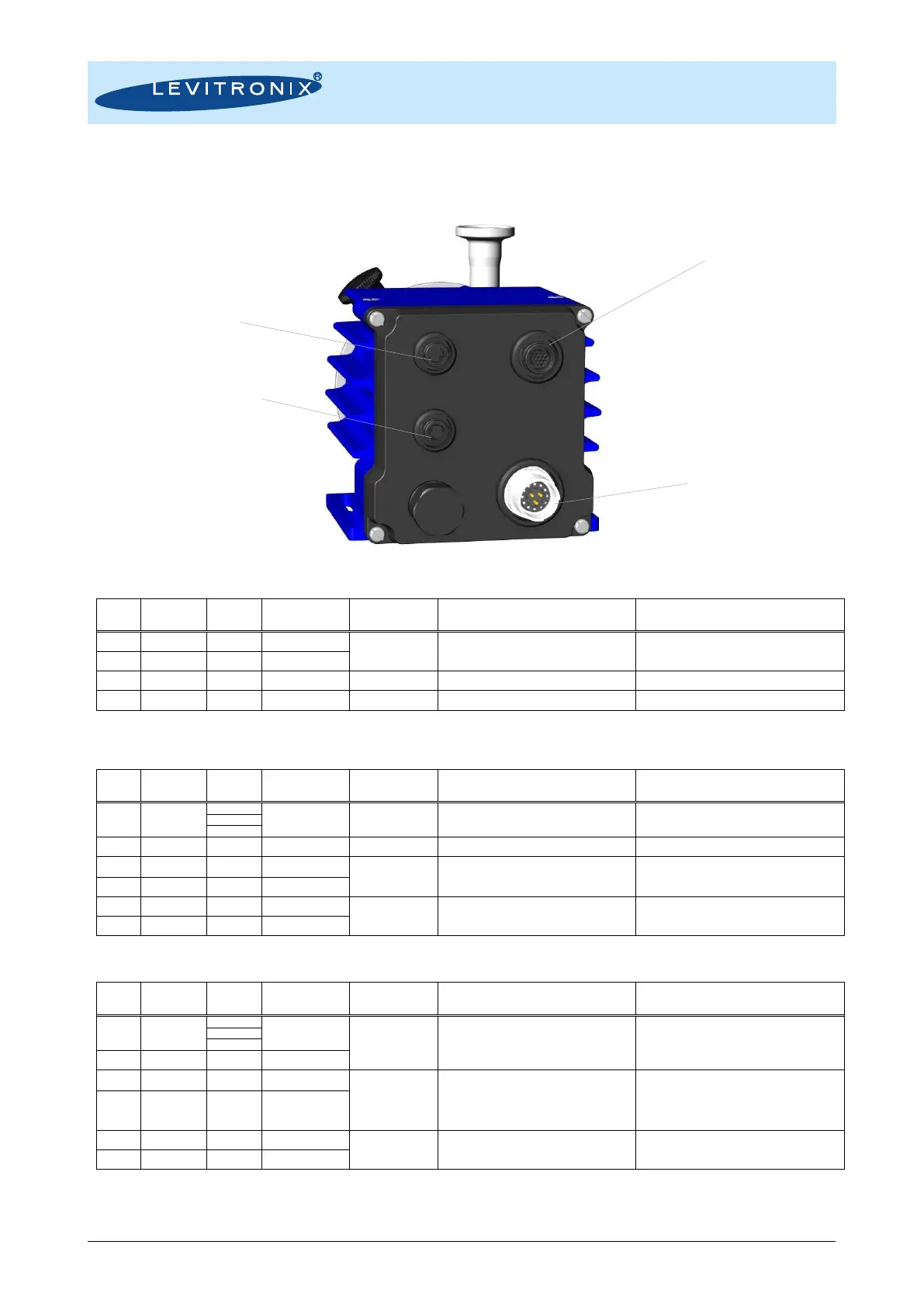

Figure 22: Electrical connections to EasyConnect driver IPD-100.4
Pin #
Pin
Name
Wire
Color
1
Description
Standard
Designation
2
Specifications
Typical Levels
Note
B
P +
red
+ 24 VDC
Power Supply
Voltage: 24 VDC ±10%
Power: 110 W
“P -“ shall be connected to earth
A
P -
black
Ground/Earth
C
NC
--
Not connected
--
Wire of compatible cables is cut.
Wire of compatible cables is cut.
1-14
NC
--
Not connected
--
Wire of compatible cables is cut.
Wire of compatible cables is cut.
Table 9: Power supply connector of EasyConnect driver
1: Wire colors of compatible cables: ICP-2.1-xx. 2: Designations for standard firmware. For other firmware refer to relevant documentation.
Pin #
Pin
Name
Wire
Color
1
Description
Standard
Designation
Typical Levels
Note
3
GND
brown
Ground
--
--
--
black
shield
6
NC
pink-blue
Not connected
--
--
--
1
RS485+
white
RS485+
Fieldbus
Modbus protocol.
For remote control with other devices.
Usage of Levitronix
®
Service Software with a
RS485 to USB adaptor cable.
2
RS485-
yellow
RS485-
4
Internal
grey
Internal
Do not
connect.
--
Internal bus needed to connect pumps for serial
pumping.
5
Internal
red
Internal
Table 10: Fieldbus IN connector of EasyConnect driver
1: Wires of compatible cables: ICS-1.1-xx and ICS-1.2-xx
Pin #
Pin
Name
Wire
Color
1
Description
Standard
Designation
Typical Levels
Note
3
GND
brown
Ground
Supply
Output
24VDC 10%, 200 mA
(Max. current is together with Pout of PLC
connector in Table 12)
For supply of external devices (displays etc.).
Internally protected.
black
shield
6
Pout
pink-blue
Output 24VDC
1
RS485+
white
RS485+
Fieldbus
Modbus protocol.
For remote control with other devices.
Usage of Levitronix
®
Service Software with a
RS485 to USB adaptor cable.
Feed through for multi-pump arrays ( for
example serial pumping, see Figure 6)
2
RS485-
yellow
RS485-
4
Internal
grey
Internal
Do not
connect.
--
Internal bus needed to connect pumps for serial
pumping.
5
Internal
red
Internal
Table 11: Fieldbus OUT connector of EasyConnect driver
1: Wires of compatible cables: ICS-1.1-xx and ICS-1.2-xx
Power Supply
Connector
PLC Connector
Fieldbus IN
Fieldbus OUT
