Basic Operation960L
Next, press the CONFIG soft button to select the input/out-
put configuration.
Depending on the sample rate and input/output configu-
ration you select, the 960L can be configured as up to four
virtual machines, each of which can be programmed indi-
vidually. In the configuration screens, each machine is
shown as a separate, numbered rectangle in the Main
Operating Display. The number of machines in the current
configuration can be read from the Machine Status
Display at the upper right of the screen.
If you selected a clock rate of 44.1 or 48 kHz, you’ll get
a screen as in Fig. 3-3, which gives you a choice of ten
processing configurations:
1) Stereo In and Out, using up to four machines.
2) One machine with 5- channels In and 5-Out, and
another with 2- channels In and 5-Out.
3) Two machines, each with 2- channels In and
5-Out.
4) Two machines, each with 4-In and 4-Out.
5) One machine with 8-In / 8-Out.
6) Stereo cascade 1: Two stereo machines cascad-
ed with two additional stereo machines
7) Dual stereo cascade: A pair of cascaded stereo
machines.
8) Two 5-In / 5-Out machines cascaded.
9) Two 4-In / 4-Out machines cascaded.
10) Four Mono-In / Stereo-Out machines.

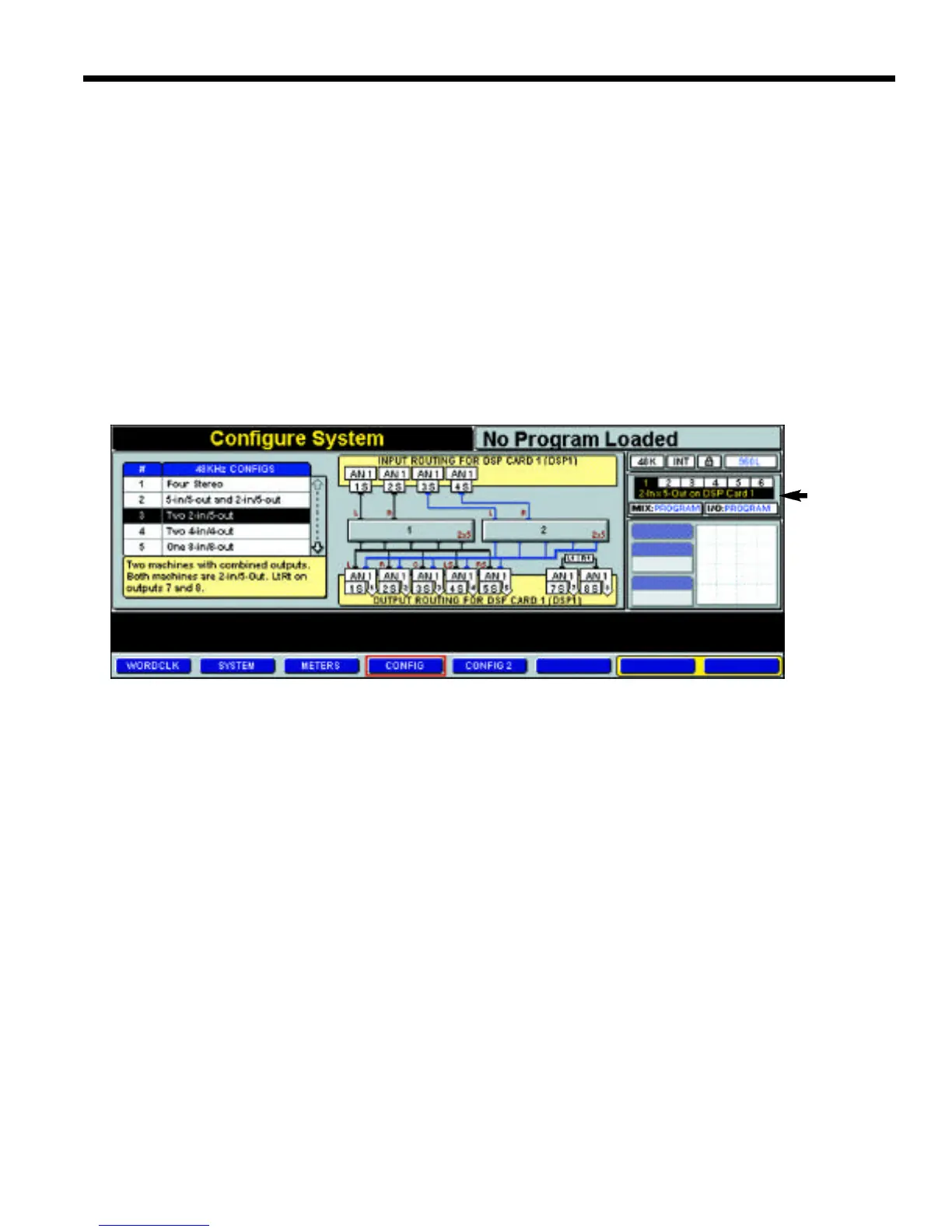

Figure 3-3 — Configuration screen for 44.1/48 kHz clock rate ( 2-In / 5-Out selected, two machines available)
