3-11
Editing
In the following example we've selected one of the presets, FazerTremolo, as
an illustration of the kind of programs that can be created with the MPX 1 routing
and connection capabilities.
In this program, the input signal is routed into an EQ block (Crossover) where
it is summed to mono. The low frequencies are sent out the left, and the high
frequencies out the right.The EQ block option is set to Split, creating two parallel
audio paths. The Chorus block (Phaser) is on the upper path, the Mod block
(AutoPanner) is on the lower path.
The Chorus inputs are connected to the left output of the EQ block. The inputs
of the Mod block are connected to the right output of the EQ block. The Chorus
outputs are connected to the Reverb block.
The Reverb and Mod block outputs are merged at the MPX 1 outputs. Inactive
effects (Pitch and Delay) are not shown.
This creates a program that phase shifts the low frequencies and auto pans the
high frequencies. Ambience is applied only to the low frequencies. (This preset
is great for clean guitars, bass and keys.)

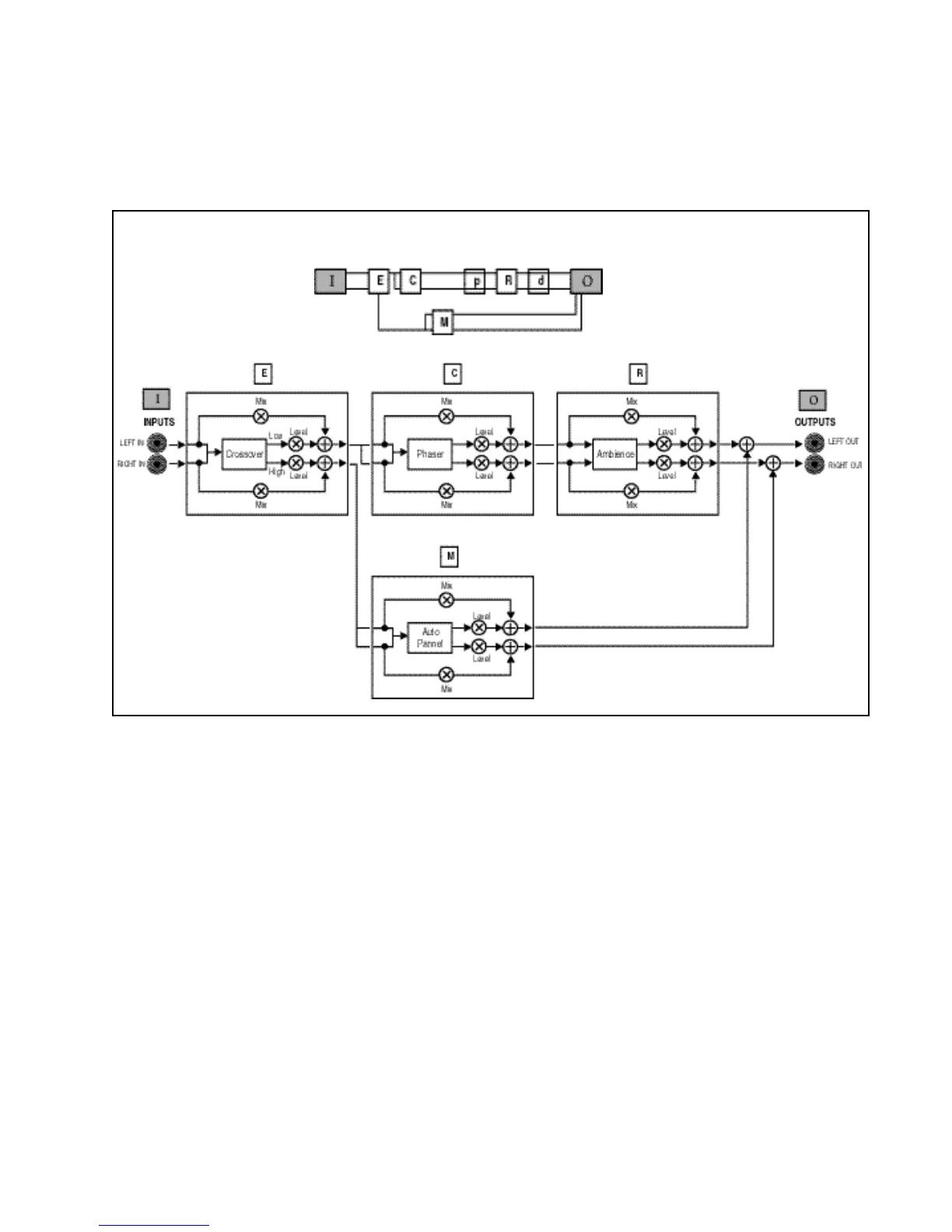

FazerTremolo Routing Map
Routing Example
