Channel Insert or Pre or Post Effects Send (R)
Channel Insert or Pre or Post Effects Send (L)
Channel Input or
Effects Return (L)
Channel Input or
Effects Return (R)

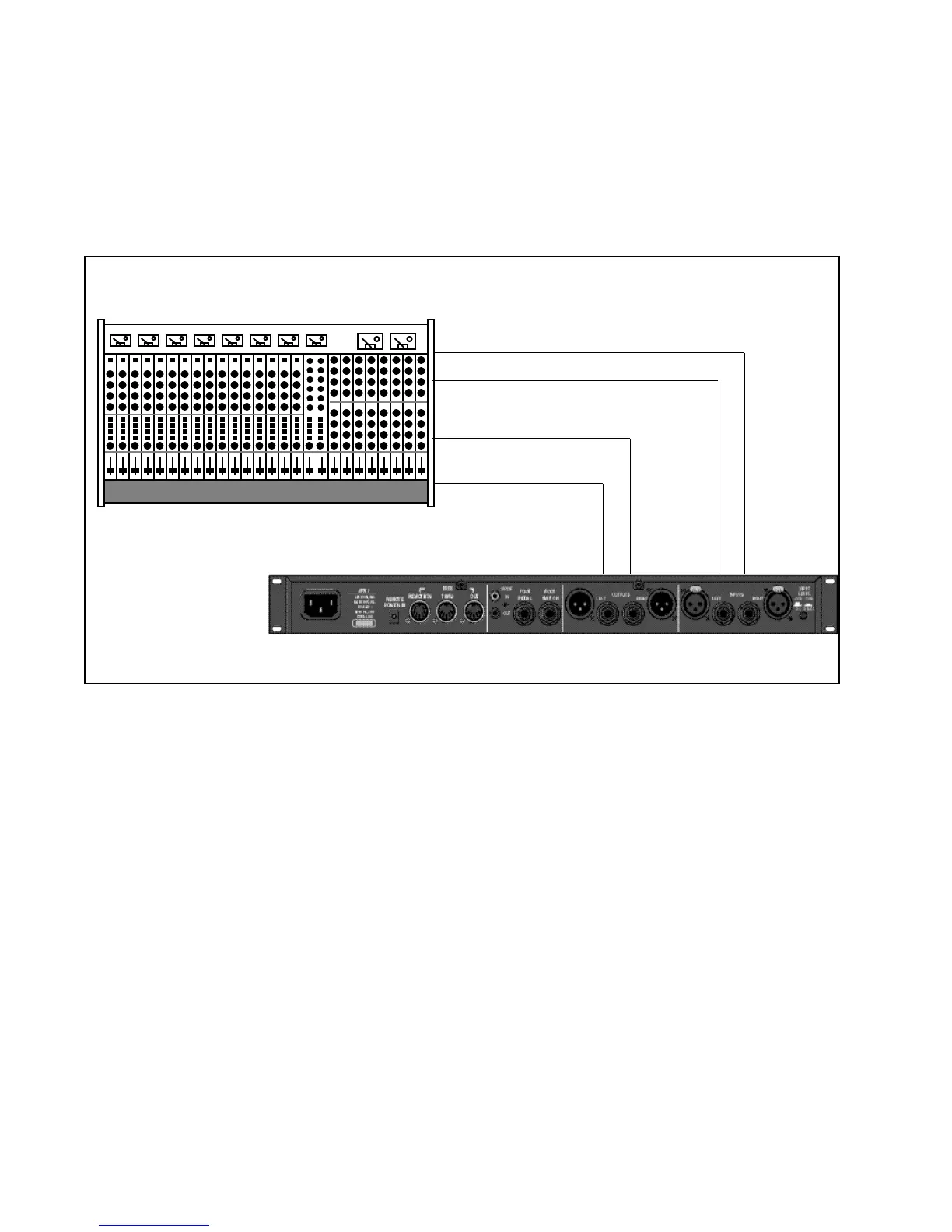

Configuration
Connection to a
mixing console's
effects sends
If you will be using the MPX 1 as your primary effects unit, and your system
includes a console with one or more auxiliary (effects) sends, connect the units
as shown above.
Use channel inserts or prefader sends for best results with programs that are not
delay-based or reverb-based (Rotary Cab, Telephone, GuitarCabEQ etc.).
In most applications, it is preferable to connect the MPX 1 outputs to two of the
console's input channel strips, panned full left and right, rather than to the effects
returns. This allows the greatest flexibility in routing and equalization.
In this configuration the console controls are used to set the amount of effect
heard—the MPX 1 Mstr Mix control should be set to 100%.
