Lexmark 940e - Sensor (Media on Belt) Removal

To Next Page

To Previous Page

4-30 Service Manual

7510

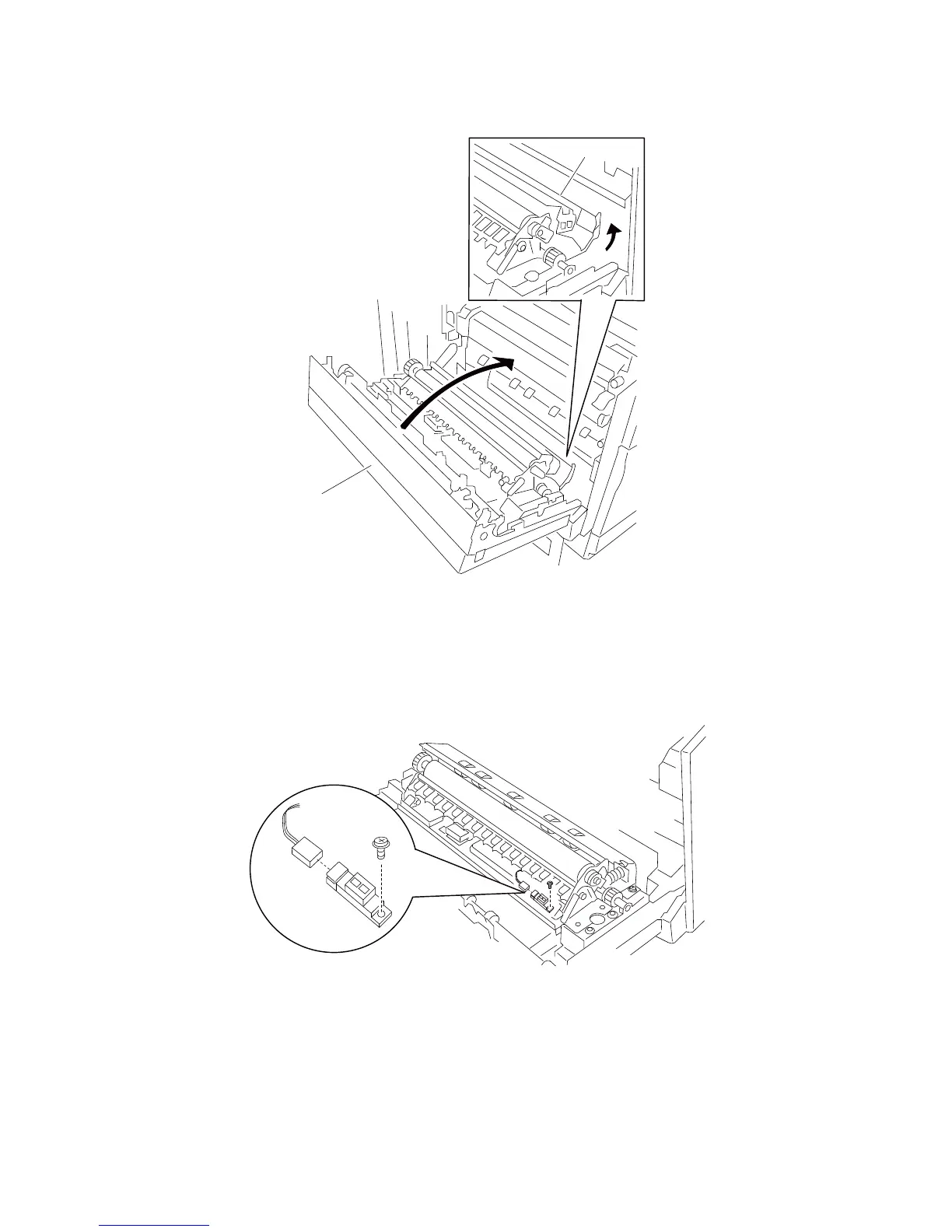

Sensor (media on belt) removal

1. Open the printer left door assembly.

2. Remove the screw securing the sensor (media on belt) (A) to the machine.

3. Disconnect the connector from the sensor (media on belt) (A).

4. Remove the sensor (media on belt) (A).
