Lexmark 940e - 500-Sheet Drawer (1 TM)-Front Door Removal; 500-Sheet Drawer (1 TM)-Foot Cover Removal

Repair information 4-233
7510

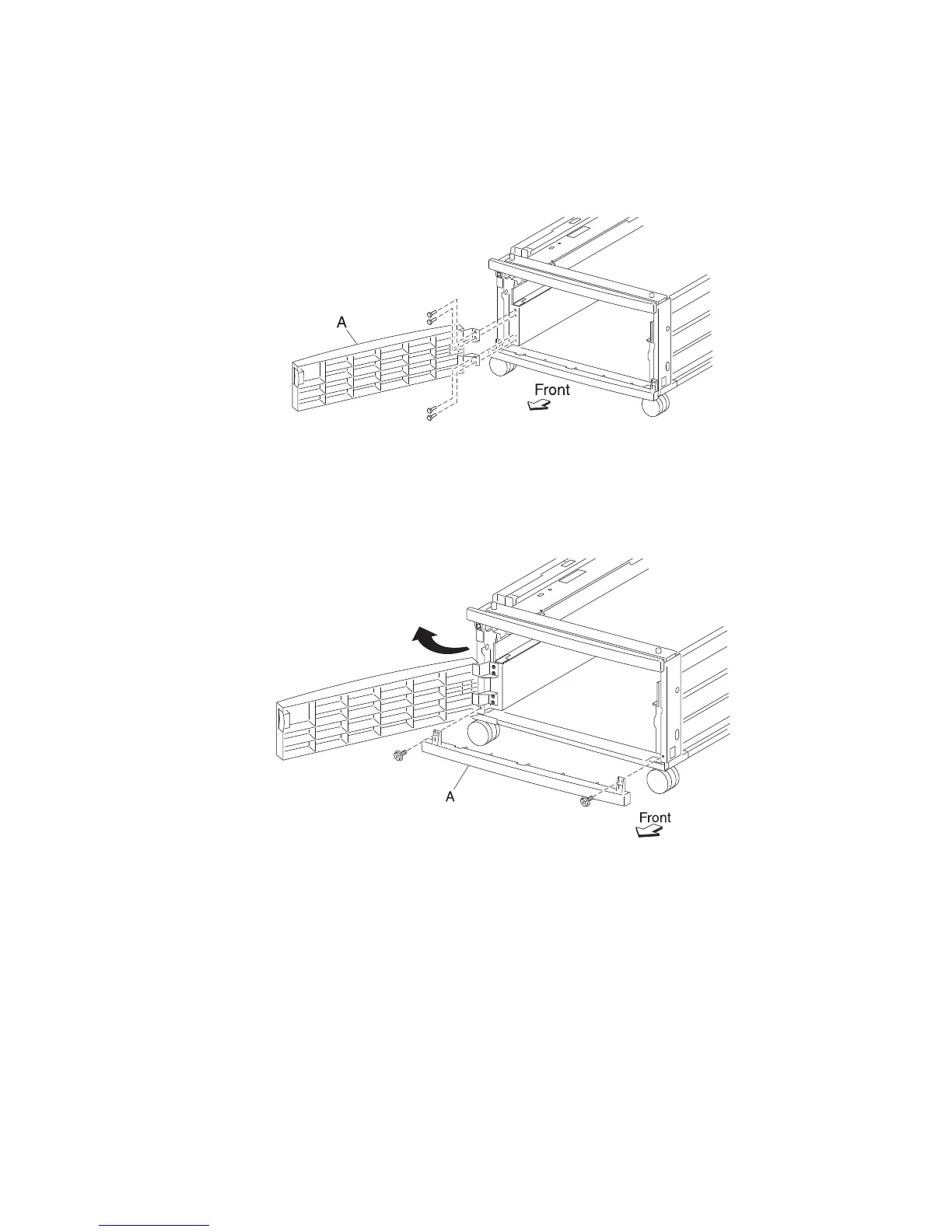

1X 500-sheet drawer (1TM)—front door removal
1. Open the 1TM front door.
2. Remove the four screws securing the front door (A) to the machine.
3. Remove the front door (A).
1X 500-sheet drawer (1TM)—foot cover removal
1. Open the 1TM front door.
2. Remove the two screws securing the foot cover (A) to the machine.
3. Remove the foot cover (A).
