7-60 MFP Service Manual

7510

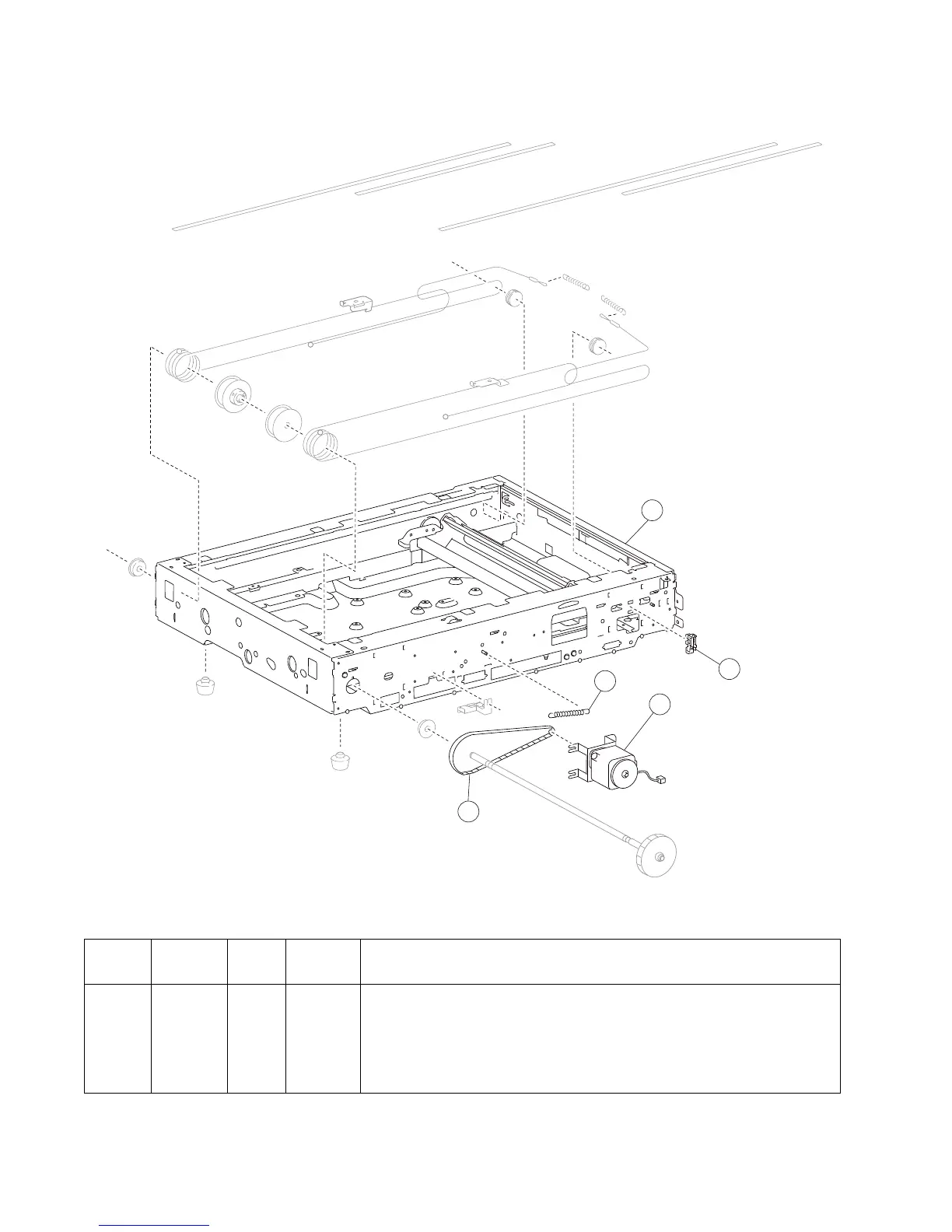

Assembly 47: Carriage cable and motor

Asm

Index

Part

number

Units/

mach

Units/ kit

or pkg

Description

1 40X4094 1 1 Complete scanner assembly (this comes assembled)

2 40X2223 2 1 Sensor (scanner HP)

3 40X2229 1 1 Scanner drive motor tension spring

4 40X3868 1 1 Scanner drive motor assembly

5 40X2226 1 1 Scanner drive belt
