Lexmark 940e - Assembly 10: MPF Feed Unit Assembly 2

To Next Page

To Previous Page

7-12 MFP Service Manual

7510

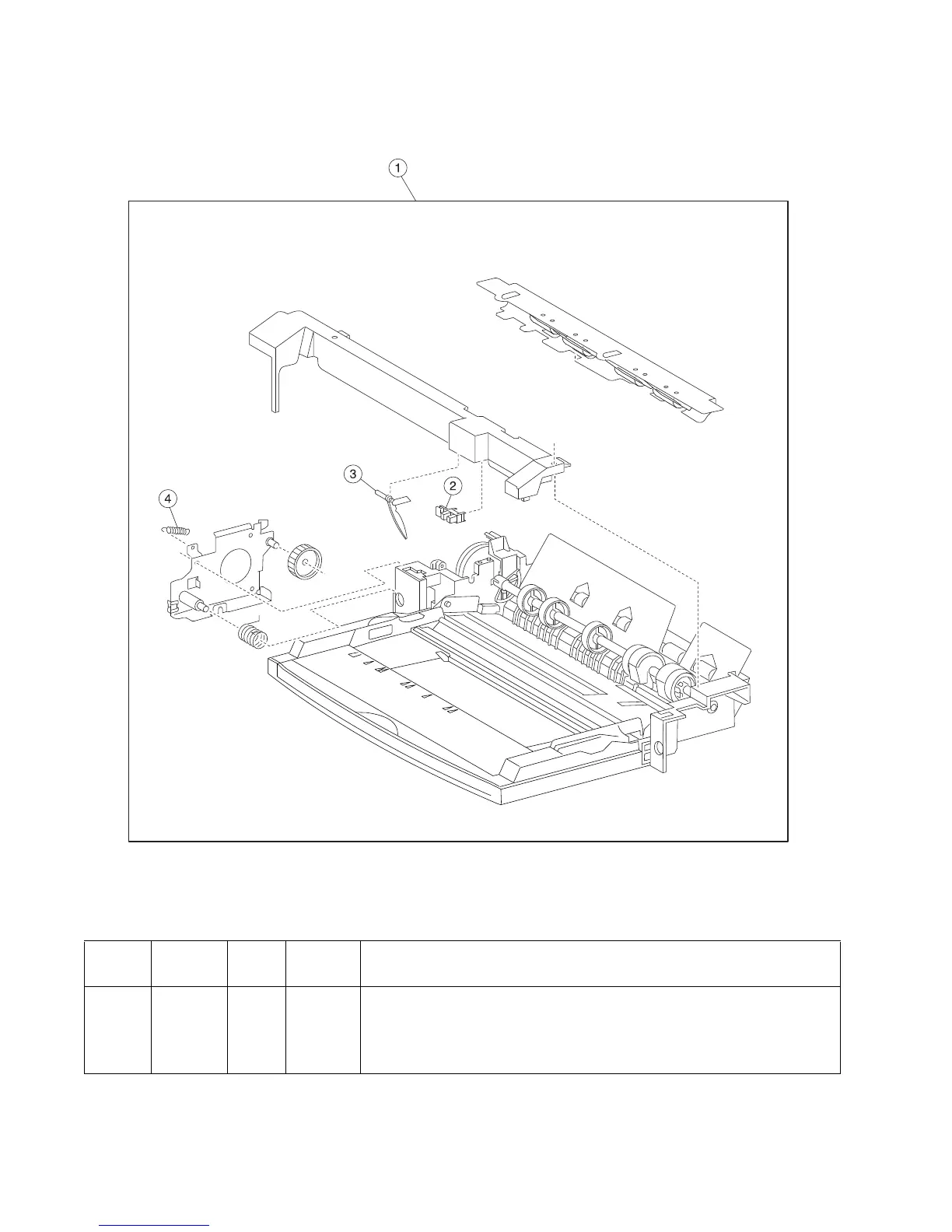

Assembly 10: MPF feed unit assembly 2

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X4079 1 1 MPF feed unit assembly (this comes assembled)

2 40X3688 30 1 Sensor (MPF media out)

3 40X3709 1 1 MPF media out actuator

4 40X0755 1 1 MPF pickup spring
