4-232 Service Manual

7510

1X 500-sheet drawer (1TM) removals

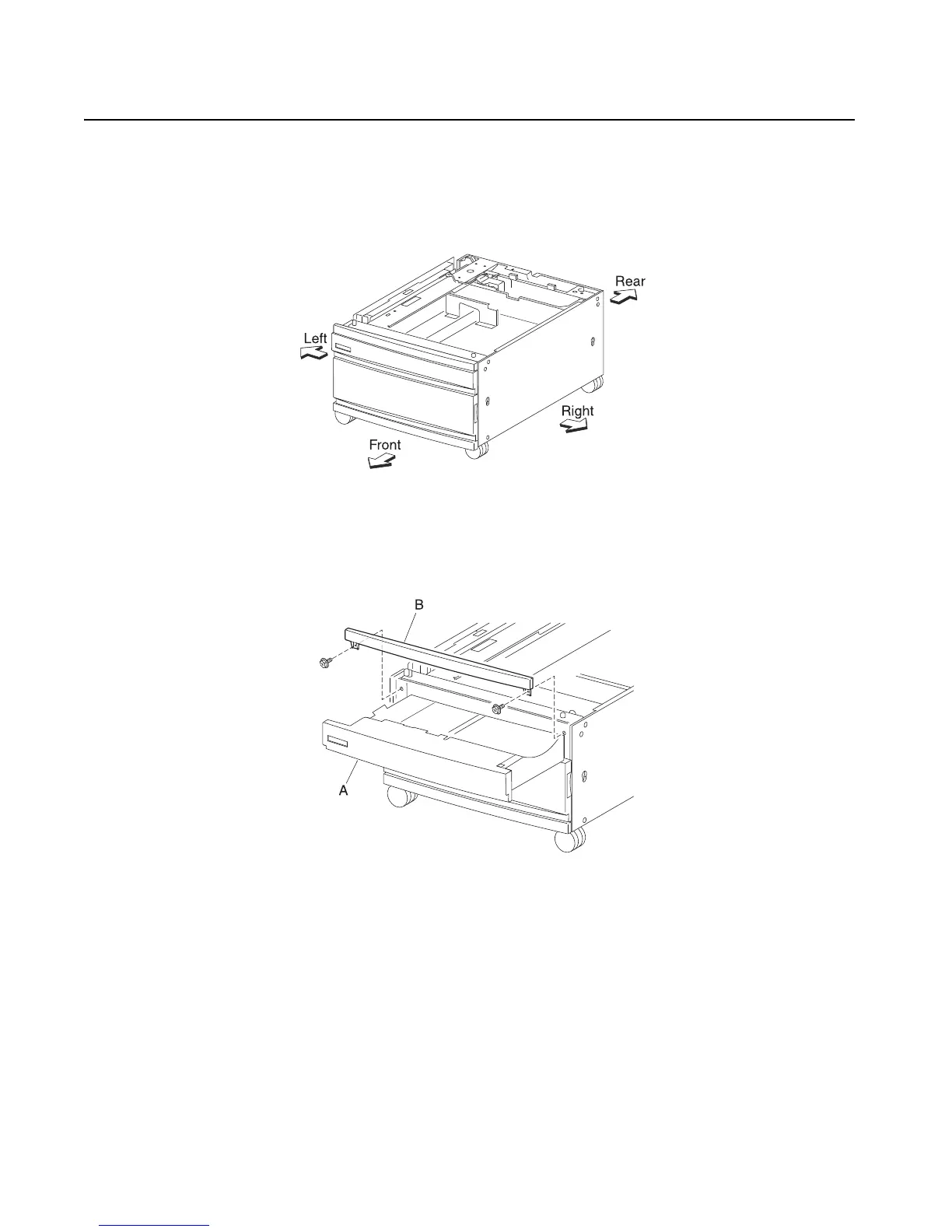

1X 500-sheet drawer (1TM)

—top cover removal

1. Pull out tray 2 assembly (A).

2. Remove the two screws securing the top cover (B).

3. Remove the top cover (B).
