Integrated Tray 2
Tray 2 uses a motorized lift plate to engage the media in the tray with the pick roll. Tray 2 holds
approximately 250 sheets of 20lb paper.
Tray 2 does have automatic size sensing. The size is determined by the placement of the green tray
guide within the paper tray.

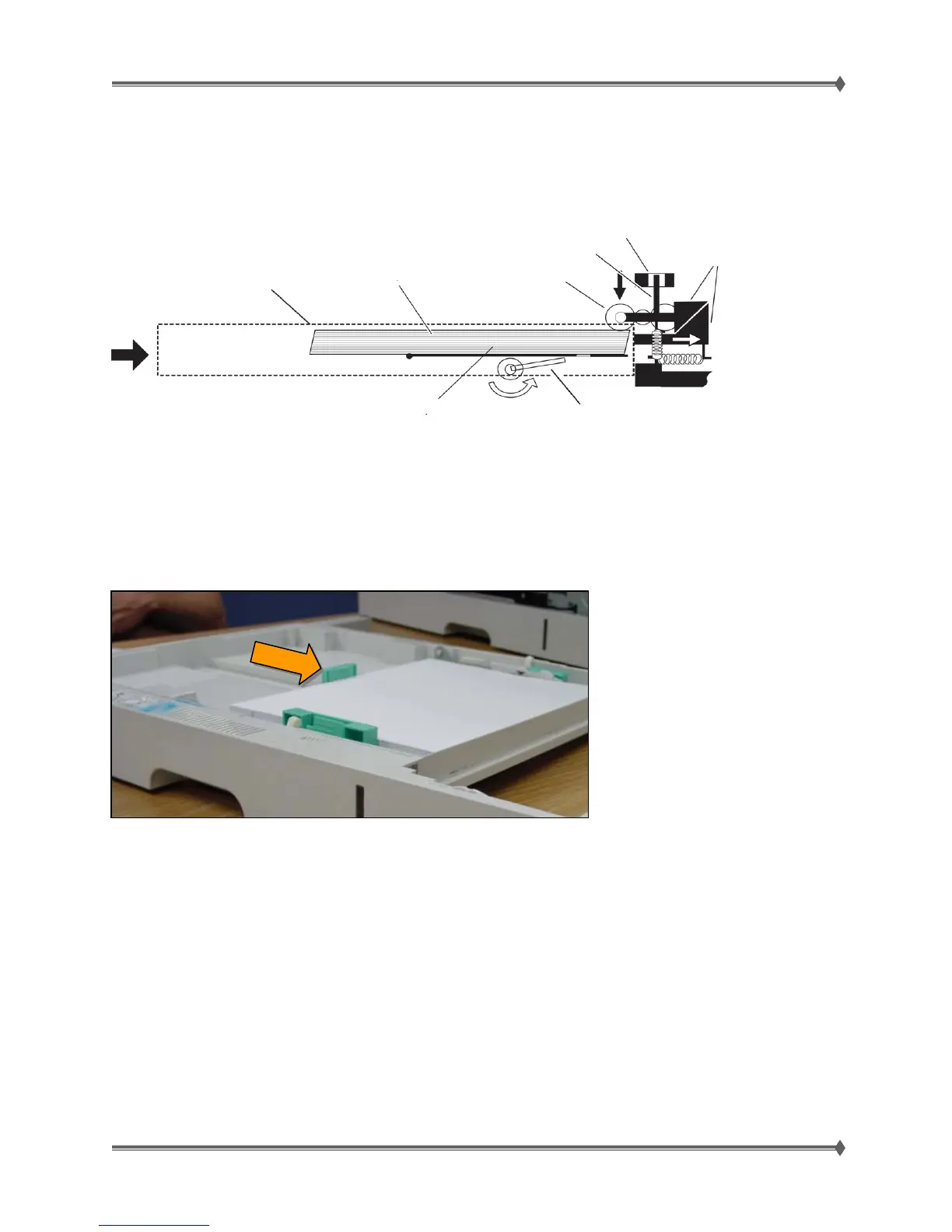

Bottom Plate
Paper Cassette Installation
Push-up plate connected to
the paper tray lift motor
Pick Roll push-up
mechanism
Upper Limit
Sensor
Li
g
ht Shield Plate
Pick Roll
Pa
p
er
Tray 2
