Paper Transport System
Paper Feed Mechanism
The standard paper feed sources consist of Tray 1, Tray 2, and a Multipurpose (MPF) Tray. The paper
feed system on the paper cassettes uses a separation roll/torque limiter to prevent multiple feeds. The
MFP, on the other hand, uses a separation pad.
Integrated Tray 1
Tray 1 uses a spring loaded plate to engage the media in the tray with the pick roll. Tray 1 holds
approximately 150 sheets of 20lb paper and Tray 2 holds about 250 sheets of 20lb paper.
Tray 1 does not have automatic size sensing, therefore, the correct paper size must be set on the paper
size wheel located on the front right of the tray (see pictures below).

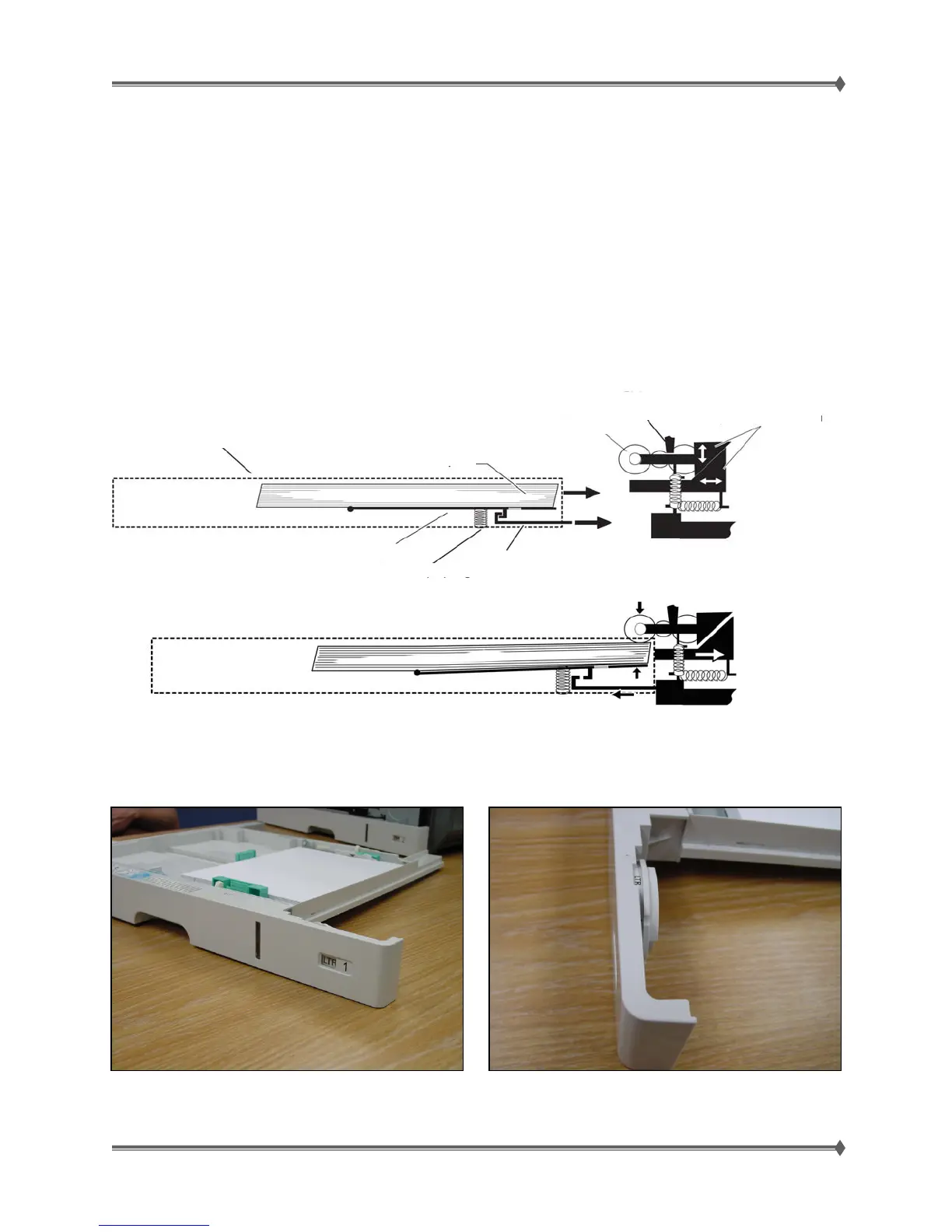

Tray 1
Pa
p
er
Pick Roll
Pick up
Fixture Guide
Pick roll push-up
mechanism
Bottom Plate
Push up Sprin
g
Release Bar
