3-12
Se
r
vic
e Man
ual
4510-0
01

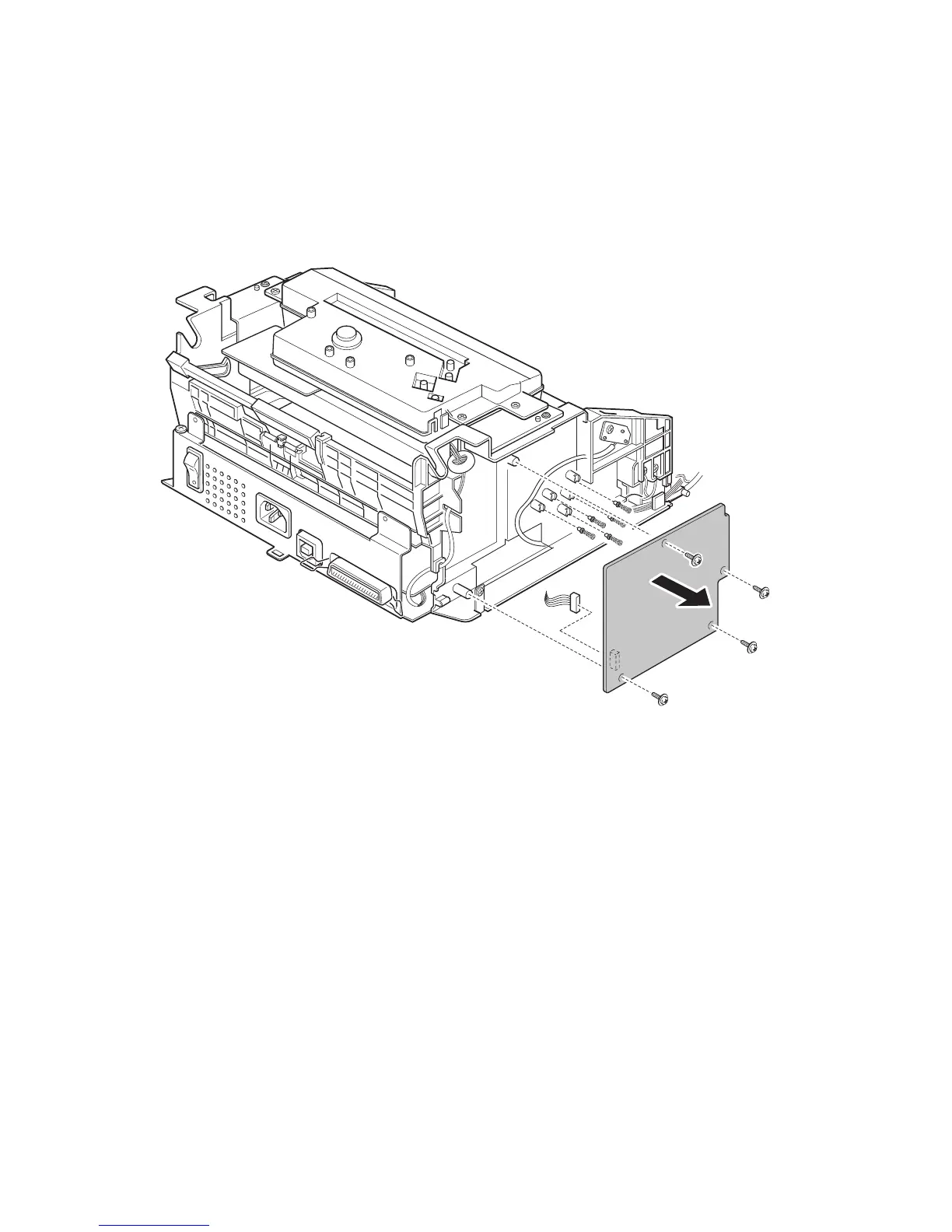

HVPS Boar
d
1.
Before removing
the HVPS
board
, remov
e the to
p cov
e
r
,
rear
cov
er
,
and le
ft side
cov
e
r
.
2.
Remove f
our sc
rews and a connec
tor f
rom the HV
PS boar
d,
and th
en remove board.
Note:
When you reass
emble the HV
PS boar
d, make su
re that the
five termi
nals are in place.
